Pushing Mechanism
discuss personally
Model
TJ-1-1400
Basic info
Brand Switchgear parts
Model NO. Pushing Mechanism
size 1200*1400mm
Series TJ
Product Detail

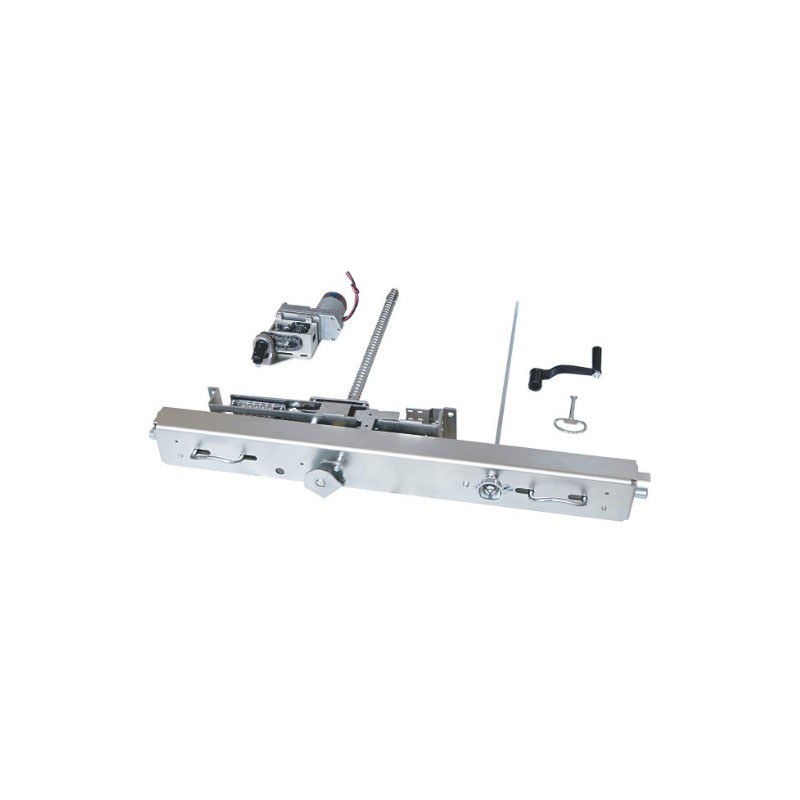

As an accessory of KYN61-40 switch cabinet, the pushing mechanism is used to push removable devices such as ZN85 series circuit breakers, various handcairs, etc

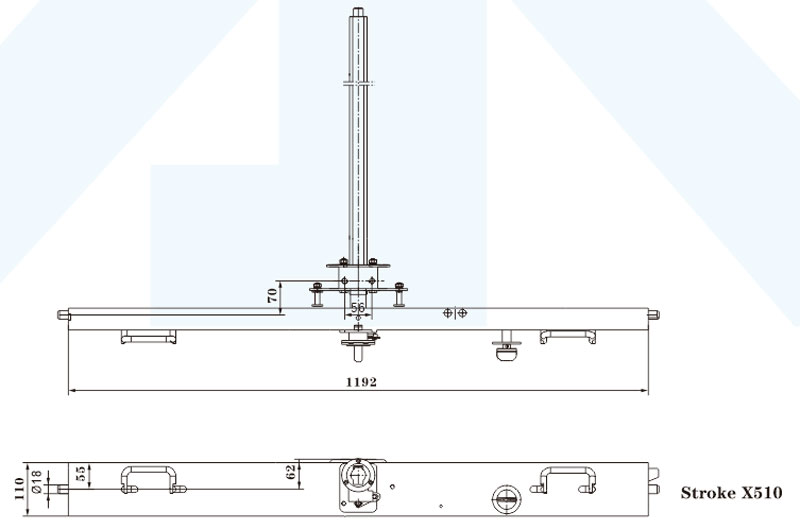

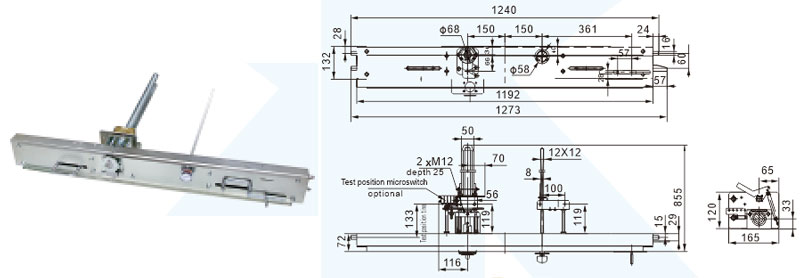

TJ-1-1400 Pushing mechanism (for ZN85)

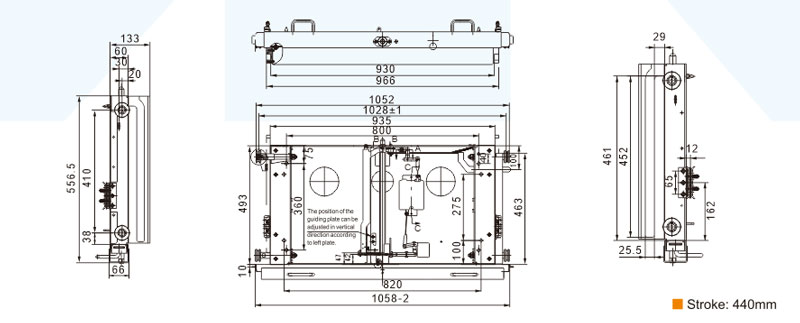

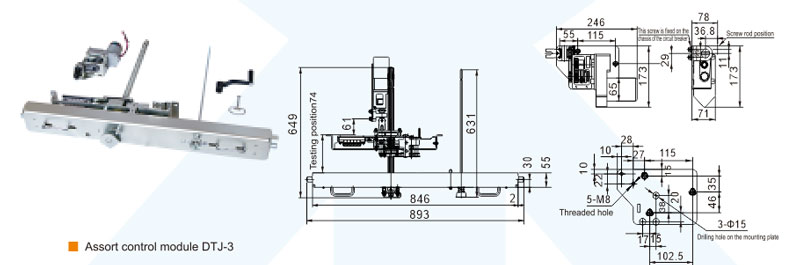

TJ-3-□ Pushing mechanism for (VD4-40.5 handcart)

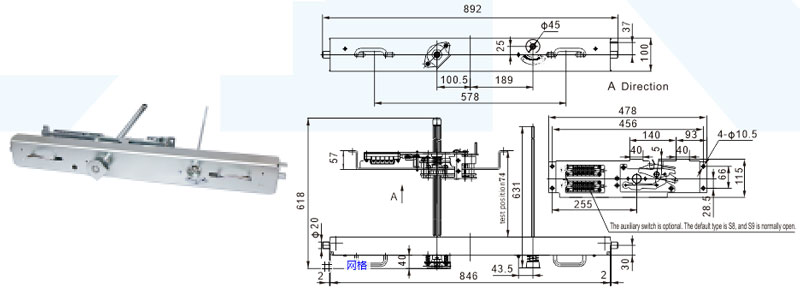

TJ-4-□Pushing mechanism (for ZN85B)

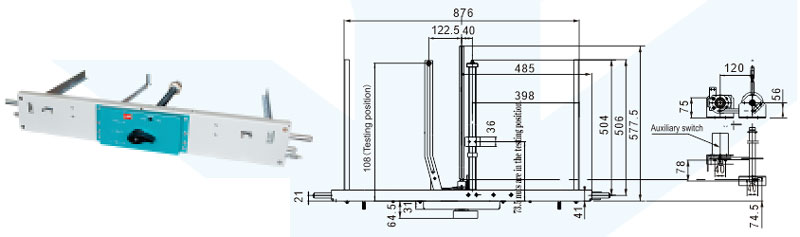

TJ-7-1400 Pushing mechanism

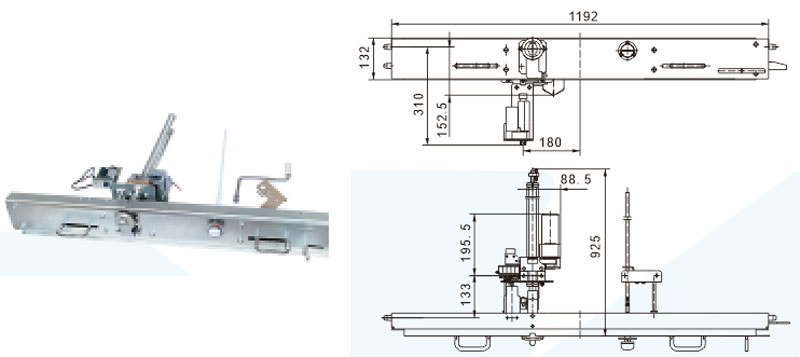

TJ-1D-1400 electric pushing mechanism

TJ-3D-1200 electric pushing mechanism

DPC-40.5-1200 chassis truck

Know your supplier
Switchgear parts
VoltEdge Solutions​​ specializes in manufacturing premium ​​MV switchgear accessories​​ for global power distribution systems. Our product range includes circuit breaker modules, disconnector spares, and surge arrestors, engineered for ​​24kV+ substations​​ and renewable energy plants. With ISO-certified production and 24/7 technical support, we ensure ​​reliability, compliance​​ with IEC standards, and rapid global supply.
