Non-encapsulated H-class Dry-type Power Transformers 800kVA 1000kVA 1250kVA 1600kVA 2000kVA 2500kVA

Add us on Google
  • Non-encapsulated H-class Dry-type Power Transformers 800kVA 1000kVA 1250kVA 1600kVA 2000kVA 2500kVA

Key attributes

Brand Vziman
Model NO. Non-encapsulated H-class Dry-type Power Transformers 800kVA 1000kVA 1250kVA 1600kVA 2000kVA 2500kVA
Rated capacity 2500kVA
Voltage grade 10KV
Series SGB
Description

Description

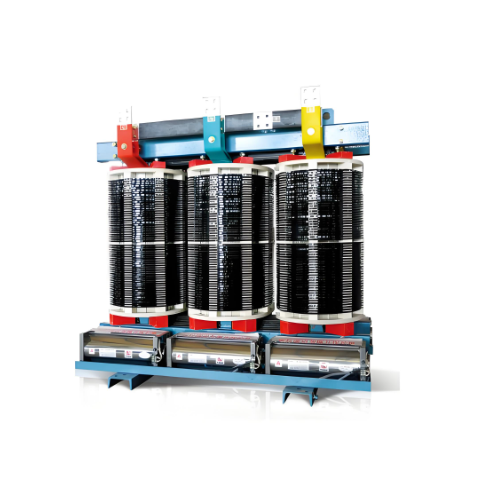

The SG(B)10 series non-encapsulated H-class dry-type power transformers adopt German (MORA) dry-type transformer manufacturing technology, fully meeting fire safety, waterproof and environmental protection standards. As ideal solutions for distribution systems, these dry-type power transformers are widely used in safety-critical scenarios such as subways, shipbuilding, mining, chemical plants, power stations, crowded buildings and special environments with high safety requirements.

Features

  • Maintenance-free Design: The non-encapsulated winding structure of the dry-type power transformers supports direct visual inspection, eliminating the need for preventive tests. This extends the maintenance cycle to 5 years and reduces the full life-cycle cost of the power transformers by 30%.

  • Intelligent Monitoring Integration: The dry-type power transformers are equipped with built-in winding temperature sensors and RS485 communication interfaces, supporting remote monitoring and early warning. The fault response time is shortened to seconds, greatly reducing operation and maintenance costs of the power transformers.

  • Superior Insulation and Heat Dissipation Performance: These dry-type power transformers use H-class insulation materials (temperature resistance up to 180℃) combined with an open winding design, improving heat dissipation efficiency by 30%. They can stably operate under 150% rated capacity overload, perfectly adapting to high-load fluctuation conditions.

Model and Meaning


Parameter

Product Model No.

Connection Group Symbol

Loss W No-load Loss R

Loss W 145℃ Load Loss R

Impedance Voltage (%)

No-load Current (%)

Overall Dimension (without enclosure) mm L

Overall Dimension (without enclosure) mm H

Overall Dimension (without enclosure) mm W

Overall Dimension (without enclosure) mm H1

Overall Dimension (without enclosure) mm L1

Overall Dimension (without enclosure) mm L2

Overall Dimension (without enclosure) mm d

Overall Dimension (without enclosure) mm f

SG10-30/10

Yyn0 D yn11

190

760

4

2.0

900

1180

880

265

220

550

550

420

SG10-50/10



270

1070



2.0

940

1180

985

265

220

550

550

450

SG10-80/10



370

1480



1.5

985

1180

1055

295

226

550

660

740

SG10-100/10



400

1690



1.5

1010

1180

1135

295

226

660

660

770

SG10-125/10



470

1980



1.3

1060

1180

 1175

306

228

660

820

1005

SG10-160/10



540

2280



1.3

1120

1180

1230

312

228

660

820

1015

SG10-200/10



620

2710



1.1

1180

1230

1275

312

238

660

820

1035

SG10-250/10



720

2960



1.1

1290

1230

1330

315

238

660

820

1155

SG10-315/10



880

3730



1.0

1320

1340

1355

315

240

820

1070

1365

SGB10-400/10



980

4280



1.0

1350

1340

1435

315

240

820

1070

1585

SGB10-500/10



1160

5230



1.0

1385

1340

1495

325

258

820

1070

1795

SGB10-630/10



1345

6290



0.85

1450

1340

1505

325

288

820

1070

2265

SGB10-630/10



1300

6400



0.85

1545

1340

1445

325

288

820

1070

1930

SGB10-800/10



1520

7460



0.85

1600

1340

1490

330

273

820

1070

2450

SGB10-1000/10



1770

8760



0.85

1680

1340

1555

330

276

820

1070

2840

SGB10-1250/10



2080

10300



0.85

1710

1470

1635

335

286

820

1070

3170

SGB10-1600/10



2450

12500

6

0.85

1800

1470

1770

350

330

1070

1070

3985

SGB10-2000/10



3050

15500



0.7

1850

1470

1890

350

346

1070

1070

4850

SGB10-2500/10



3600

18400



0.7

1900

1470

2030

365

356

1070

1070

5620

 Notes: The Dimension and weight will be changed according to the requirements.

Applicable Service Conditions

  • The SG(B)10 series power transformers are designed for indoor and semi-outdoor substation applications, with a wide ambient temperature range from -25℃ to +40℃.

  • These dry-type power transformers adapt well to high-altitude, humid and mildly polluted environments, maintaining stable operation in various working conditions.

  • The power transformers meet standard seismic requirements, ensuring reliable performance even under normal seismic conditions.

  • The dry-type power transformers are suitable for safety-critical locations such as crowded buildings and industrial sites, complying with strict environmental protection standards.
