IEC type connector

discuss personally

Model

European-style front and rear jo

European-style front and rear jo

Basic info Product Detail Supplier

Basic info

Brand	Switchgear parts
Model NO.	IEC type connector
Rated voltage	38kV
Rated normal current	630A
Series	IEC

Product Detail

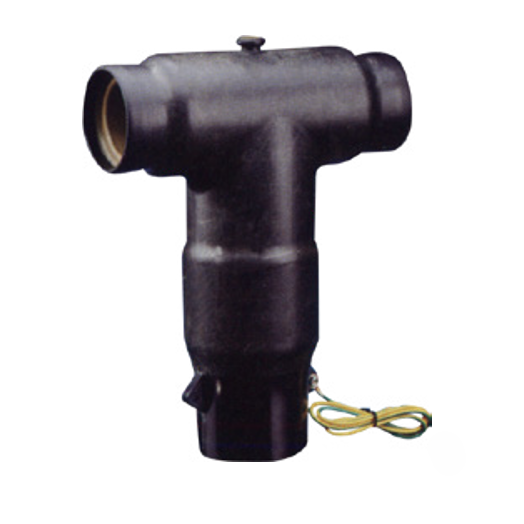

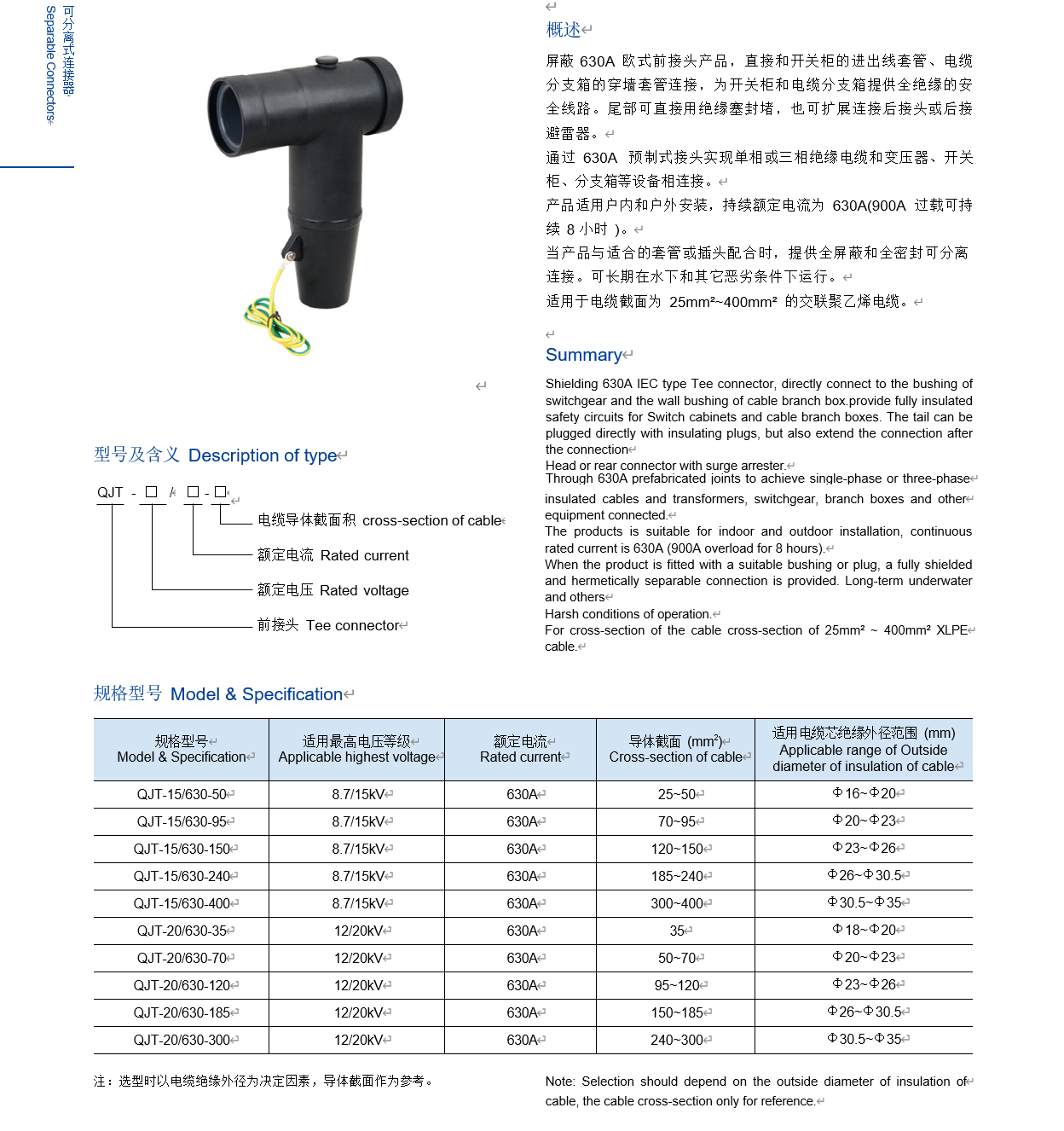

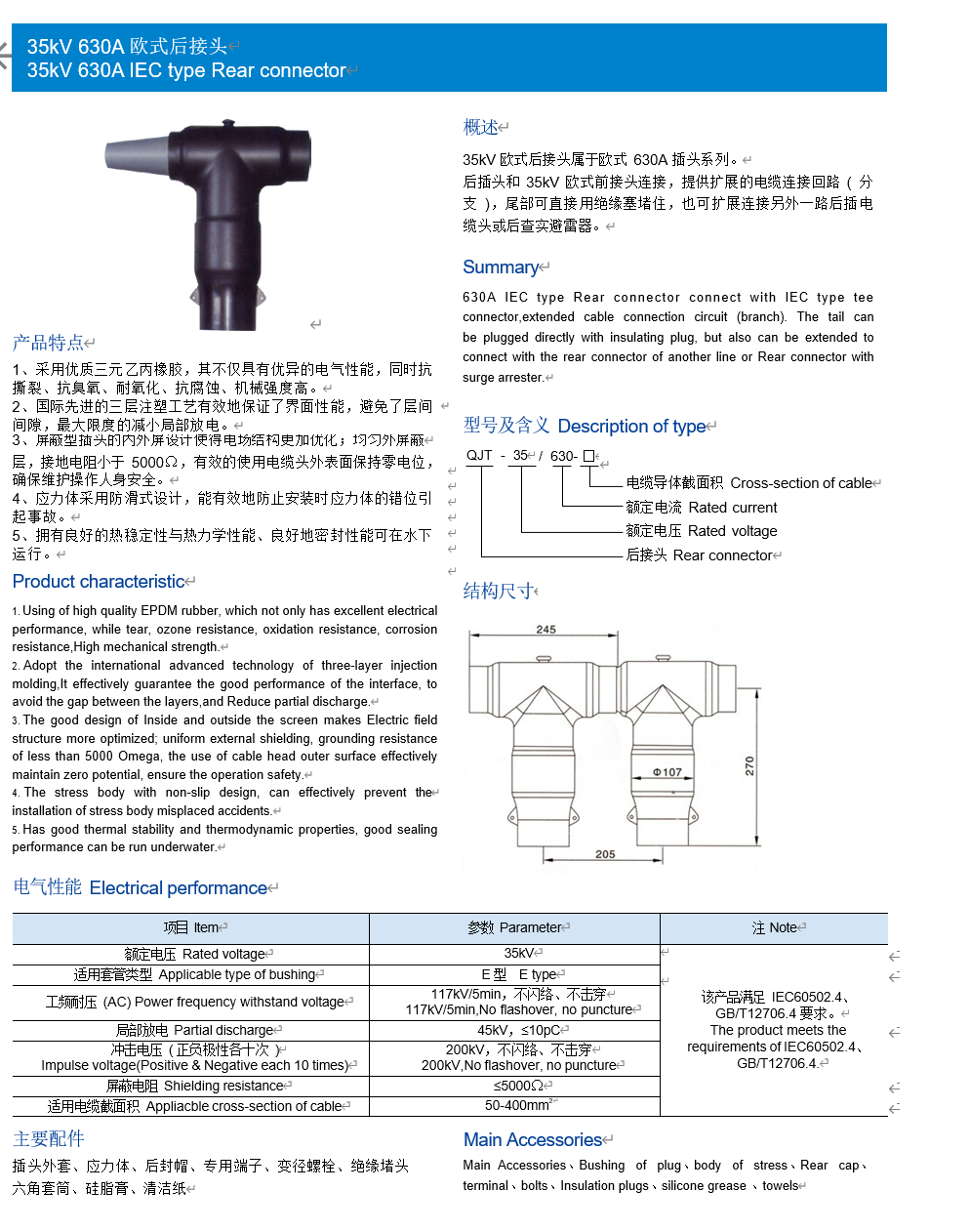

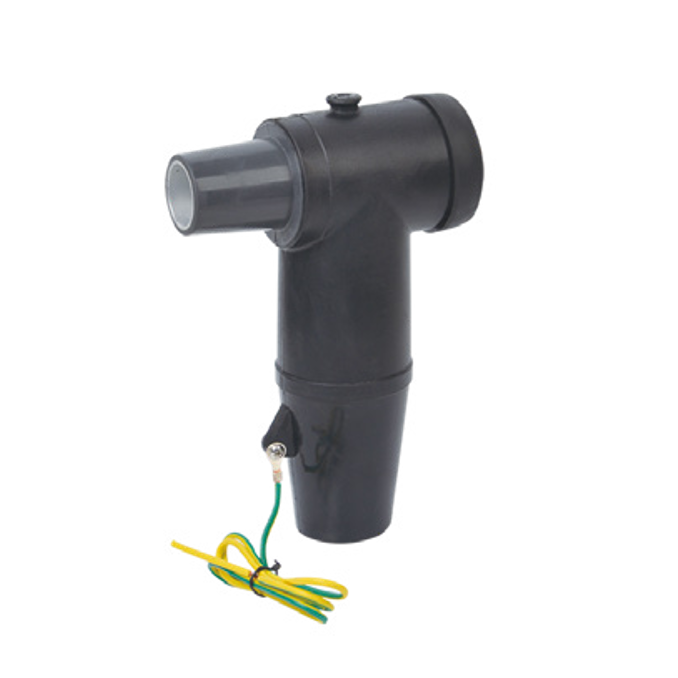

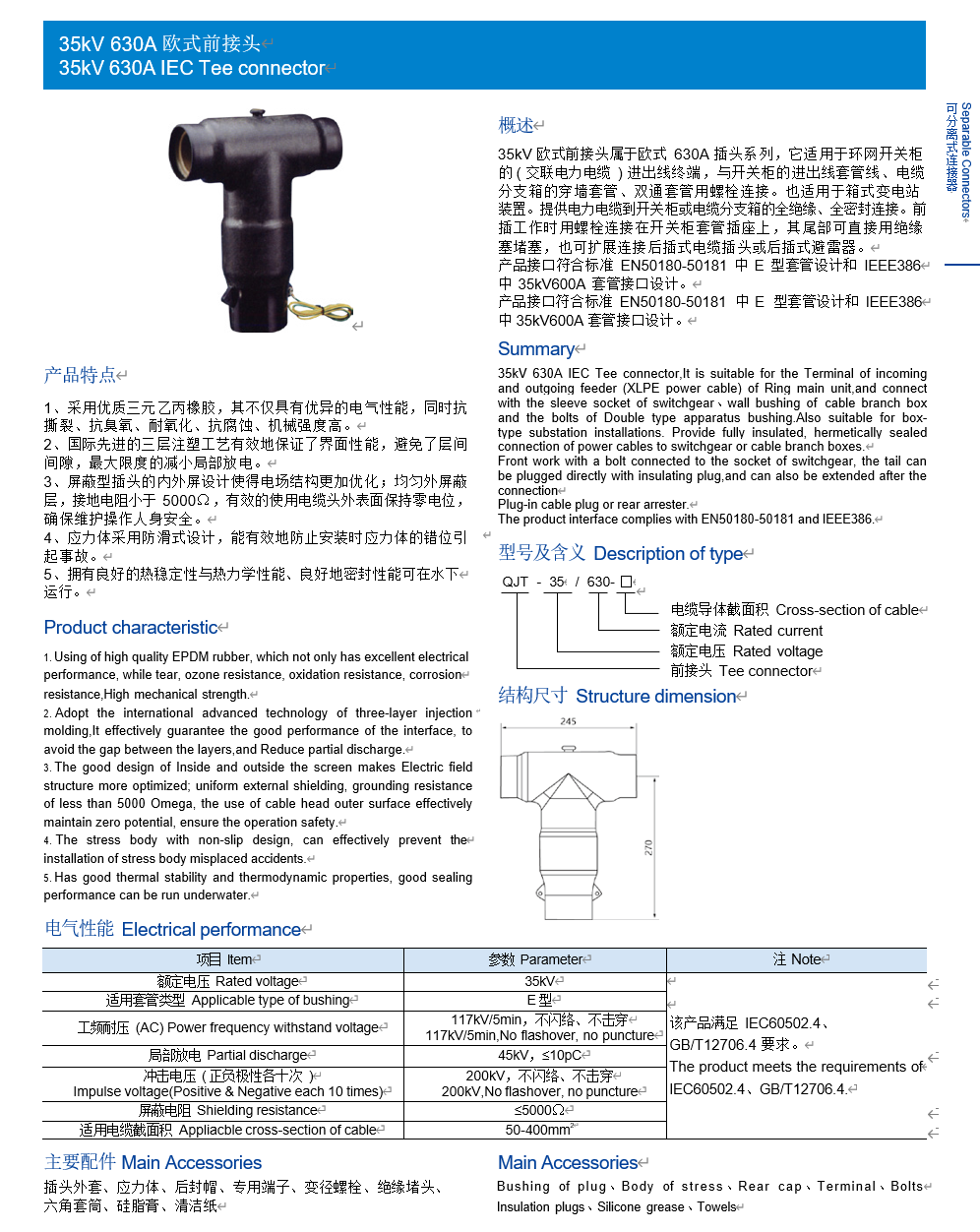

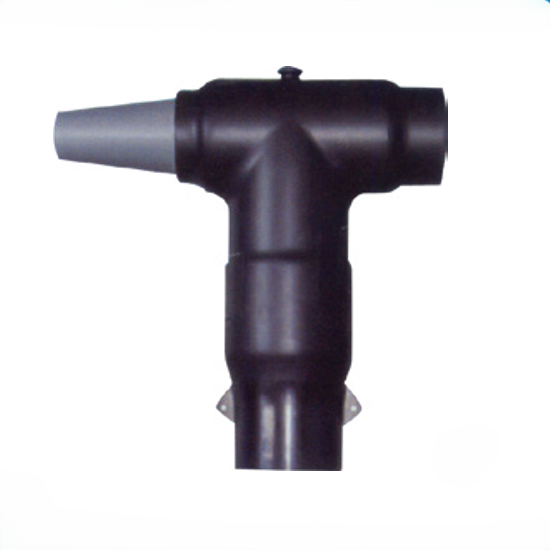

Shielding 630A IEC type Tee connector, directly connect to the bushing ofswitchgear and the wall bushing of cable branch box.provide fully insulatedsafety circuits for Switch cabinets and cable branch boxes. The tail can beplugged directly with insulating plugs, but also extend the connection afterthe connectionHead or rear connector with surge arrester.Through 630A prefabricated joints to achieve single-phase or three-phasensulated cables and transformers, switchgear, branch boxes and otherequipment connected.The products is suitable for indoor and outdoor installation, continuousrated current is 630A (900A overload for 8 hours).When the product is fitted with a suitable bushing or plug, a fully shieldedand hermetically separable connection is provided. Long-term underwaterand othersHarsh conditions of operation.For cross-section of the cable cross-section of 25mm² ~ 40Omm² XLPEcable.

Know your supplier

Switchgear parts

VoltEdge Solutions specializes in manufacturing premium MV switchgear accessories for global power distribution systems. Our product range includes circuit breaker modules, disconnector spares, and surge arrestors, engineered for 24kV+ substations and renewable energy plants. With ISO-certified production and 24/7 technical support, we ensure reliability, compliance with IEC standards, and rapid global supply.

Main Categories

Equipment Parts

Business Type

Sales

Highest Annual Export (USD)

$300000000

Professional Experience

1 years

Workplace

1000m²
