HECS-R Series Generator circuit-breakers

discuss personally

Model

Basic info Product Detail Supplier

Basic info

Brand	ROCKWILL
Model NO.	HECS-R Series Generator circuit-breakers
Rated voltage	25.3kV
Rated frequency	50/60Hz
Rated short-time withstand current	130kA
Series	HECS-R Series

Product Detail

Overview

The HECS-R GCB has a compact structure and is an ideal choice for replacement and retrofit. The three circuit breaker poles, along with the electromechanical spring drive, monitoring, and control components, are installed on a common frame. The phase distance can be easily selected to fit the connected busbars. This circuit breaker is based on the reliable HECS platform, has a wide installation base, and supports all power plants between 80 - 300 MW to improve safety and efficiency. It is suitable for open and compartmentalized installations.

Applications

Replacement and retrofit of power plants up to 300 MW Power plants with space limitations.

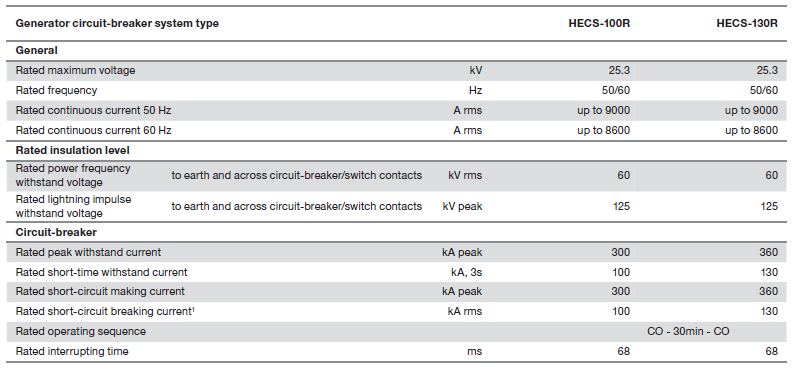

Technology parameters
