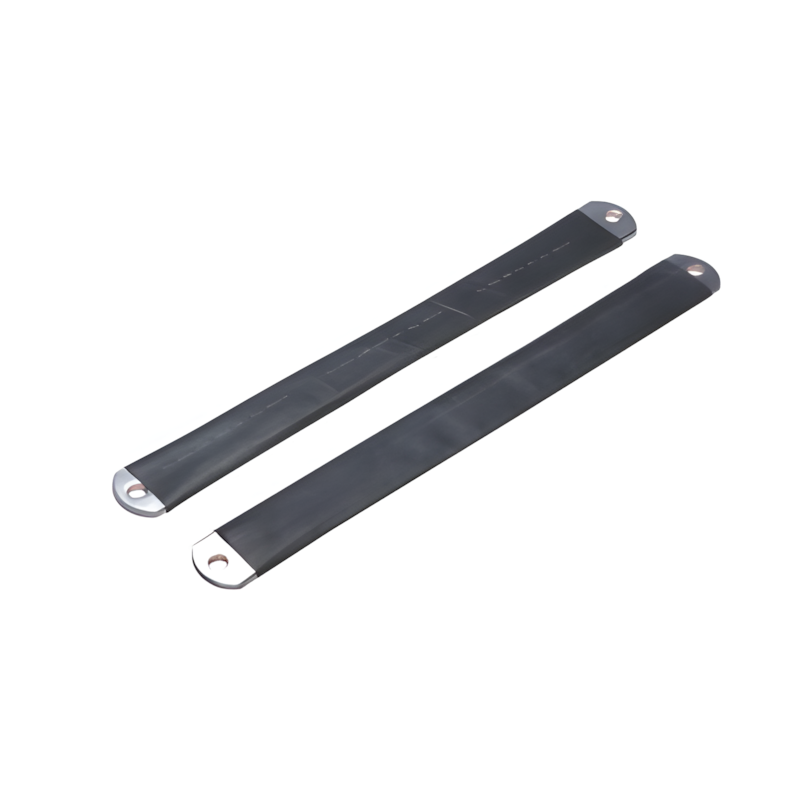

Flexible insulated earthing tapes and copper connectors
Key attributes
| Brand | Switchgear parts |
| Model NO. | Flexible insulated earthing tapes and copper connectors |
| Nominal cross-sectional area | 16mm² |
| Series | RN-10-210 |
Product descriptions from the supplier
The raw material is PVC plastic coated copper stranded wire, and the installation contact surface is seamless copper tube. The stamping process does not use any additives such as tin or others.
Copper wire and copper tube are both made of purple copper with the same performance and composition. We can ensure the most precise stamping, so there will be no harmful gases or other impurities inside the conductive strip. Our conductive strip can provide the best performance and the lowest connection resistance.
Thanks to the technical characteristics of insulation materials and copper wires, this conductive tape can be used as a grounding wire inside circuit breakers or high current control equipment.
Technical Specifications

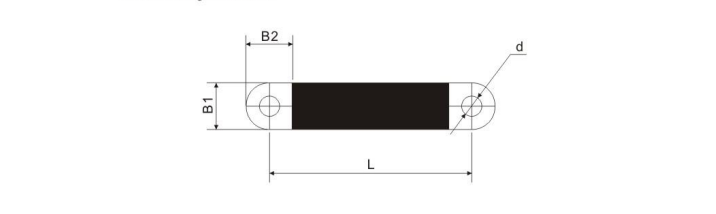

| Cross - section () | Current - load (A) | Dimensions (mm) | |||
|---|---|---|---|---|---|
| 10 | 12 | 12 | 5.5 | Customized according to customers' wishes | |
| 16 | 15 | 15 | 6.5 | Customized according to customers' wishes | |
| 25 | 20 | 20 | 9 | Customized according to customers' wishes | |
| 25 | 25 | 25 | 9 | Customized according to customers' wishes | |
| 35 | 20 | 20 | 9 | Customized according to customers' wishes | |
| 35 | 25 | 25 | 9 | Customized according to customers' wishes | |
| 50 | 25 | 25 | 9 | Customized according to customers' wishes | |
| 50 | 30 | 30 | 11 | Customized according to customers' wishes | |
| 70 | 25 | 25 | 9 | Customized according to customers' wishes | |
| 70 | 30 | 30 | 11 | Customized according to customers' wishes | |
| 70 | 35 | 35 | 11 | Customized according to customers' wishes | |
| 70 | 40 | 40 | 14 | Customized according to customers' wishes | |
| 100 | 35 | 35 | 11 | Customized according to customers' wishes | |
| 100 | 40 | 40 | 14 | Customized according to customers' wishes | |
| 120 | 40 | 40 | 14 | Customized according to customers' wishes | |
| 140 | 40 | 40 | 14 | Customized according to customers' wishes | |
| 210 | 40 | 40 | 14 | Customized according to customers' wishes | |
| 210 | 50 | 50 | 14 | Customized according to customers' wishes |
