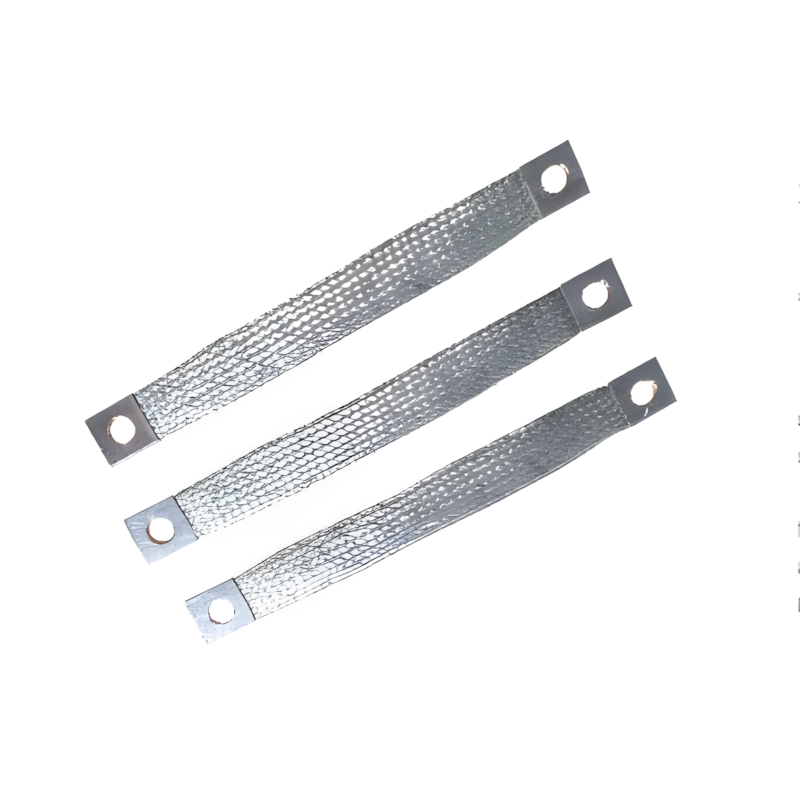

Earthing Tapes With Solderless Pressed Contact Areas
Key attributes
| Brand | Switchgear parts |
| Model NO. | Earthing Tapes With Solderless Pressed Contact Areas |
| Nominal cross-sectional area | 6.0mm² |
| Series | RN4-70 |
Product descriptions from the supplier
Manufactured out of highly flexible braids with solderless pressed contact areas made out of seamless Cu-ETP-tubes. The crimping process is realized without using additives like tin or soldering and welding additives. We use exclusively materials of same analysis and same conductivity of T2 (braids and tubes). Suitable as earthing tapes as well as components for current transfer. Everywhere applicable where components with high flexibility and an optimized contact resistance are needed.
| Cross - section (mm²) | Dimension B (mm) | Dimension d (mm) | Dimension L (mm) |
|---|---|---|---|
| 4 | 8 | Customized according to customers' wishes | Customized according to customers' wishes |
| 6 | 10 | Customized according to customers' wishes | Customized according to customers' wishes |
| 8 | 12 | Customized according to customers' wishes | Customized according to customers' wishes |
| 10 | 14 | Customized according to customers' wishes | Customized according to customers' wishes |
| 14 | 18 | Customized according to customers' wishes | Customized according to customers' wishes |
| 16 | 20 | Customized according to customers' wishes | Customized according to customers' wishes |
| 25 | 22 | Customized according to customers' wishes | Customized according to customers' wishes |
| 35 | 25 | Customized according to customers' wishes | Customized according to customers' wishes |
| 50 | 33 | Customized according to customers' wishes | Customized according to customers' wishes |
| 70 | 35 | Customized according to customers' wishes | Customized according to customers' wishes |
