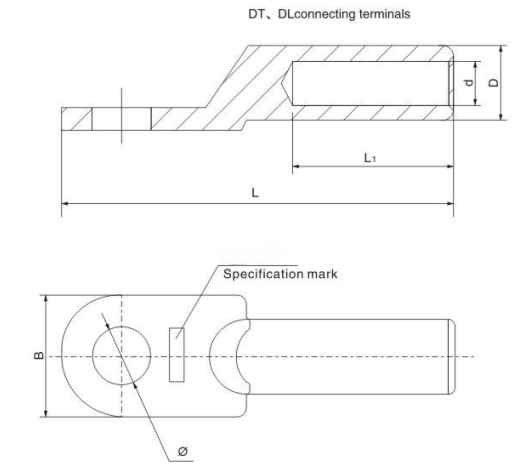

DT Series copper terminal block (oil blocking)
Key attributes
| Brand | Switchgear parts |
| Model NO. | DT Series copper terminal block (oil blocking) |
| Nominal cross-sectional area | 10mm² |
| Series | DT |
Product descriptions from the supplier
The DT series oil blocking copper terminal block is a copper conductor connection component designed specifically for oil immersed power equipment such as oil immersed transformers and oil immersed reactors. Through an oil blocking sealing structure and high-purity copper material, it achieves low impedance connection of copper wires (or busbars) while effectively preventing insulation oil leakage inside the equipment and avoiding insulation performance degradation caused by oil loss. It is widely used in oil immersed scenarios such as power transformers and distribution equipment, and is the core component to ensure the safety of electrical conductivity and sealing reliability of oil immersed equipment
