CYEVT1-36 Electronic voltage transformer

Name: CYEVT1-36 Electronic voltage transformer
Brand: Yueqing HK Electrical Trading Co., Ltd.
SKU: 1619
Availability: InStock

Yueqing HK Electrical Trading Co., Ltd.

9yrs 100+ staff 1000+m² US$300000000+ China

Attributes Description Documentation Resource Library Supplier

Key attributes

Brand	HK Electrical
Model NO.	CYEVT1-36 Electronic voltage transformer
Rated frequency	50/60Hz
Rated insulation voltage	40.5kV
Series	CYEVT

Description

Product Overview

The products accord with standard IEC60044-7, GB/T20840.7-2007, and can meet customer’s other special requirement. The products use resistive partial-pressure method to test voltage, mainly be used in the ≤ 35kV switchgear, match with electric instrument, digital measure and protective equipment, can at the same time realize the multi-functions such as measure, control, protection and data transmission etc.

Main technical parameter

Rated primary voltage : 35/ √3kV
Rated secondary voltage : 3.25/√3V or 6.5/√3V
Rated digital output : 0x2D41
Accuracy for measure winding : 0.2
Accuracy for protective winding : 3P
Rated frequency : 50Hz
Rated insulation level : 40.5/95/185 kV
Ambient temperature : -5℃ -40℃ (indoor), -25℃-50℃(outdoor)
Ambient humidity : ≤RH95%(25℃ )
Altitude : ≤ 2000m( Can devise according customer’s requirement)
Installation site : indoor/ outdoor

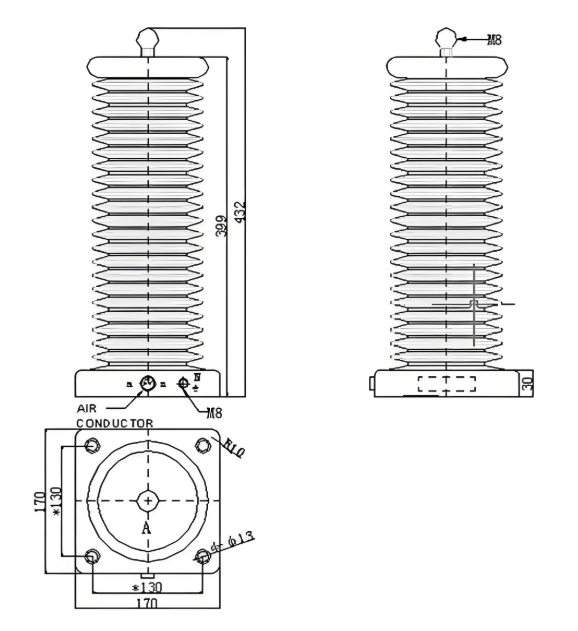

Outline drawing
