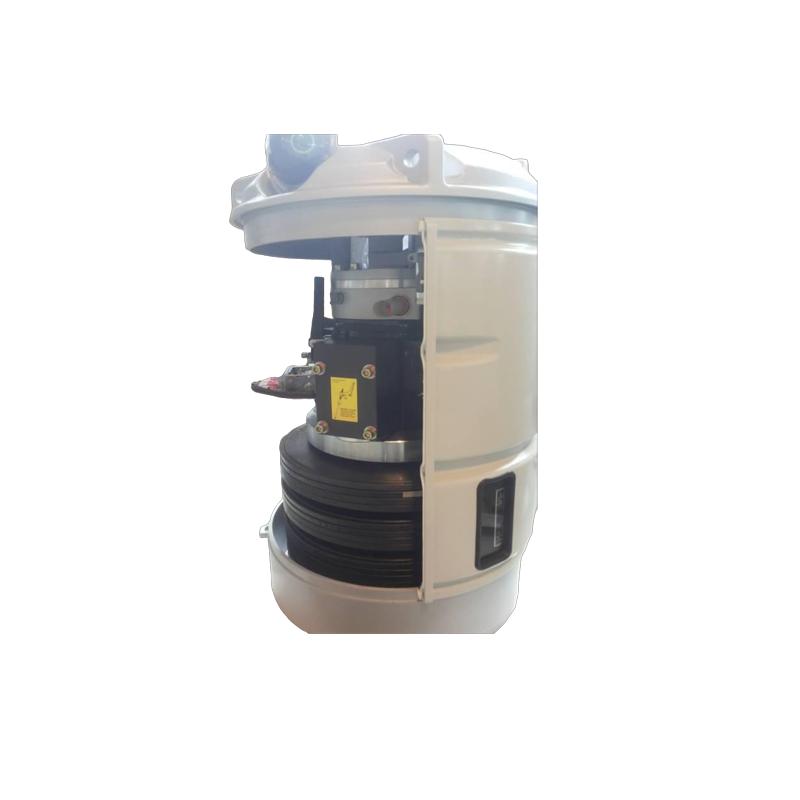

CYD-4 Hydraulic Disc Spring Operating Mechanism
Key attributes
| Brand | Switchgear parts |
| Model NO. | CYD-4 Hydraulic Disc Spring Operating Mechanism |
| Rated voltage | 220kV |
| Series | CYD-4 |
Product descriptions from the supplier
The CYD-4 series hydraulic disc spring operating mechanism uses disc springs as energy storage components. Disc springs have excellent force characteristics, are not affected by environmental temperature, store a large amount of energy, and have smooth force characteristics. Its structure adopts an integrated module design without pipeline connections. Adopting advanced sealing structure design, advanced dynamic and static sealing systems, internal integrated hydraulic buffer system, high system pressure, compact structure, high operating power, stable and reliable performance. Mainly suitable for high voltage and high current applications in GIS dead and tank circuit breakers with voltage levels of 252kV-1000KV.

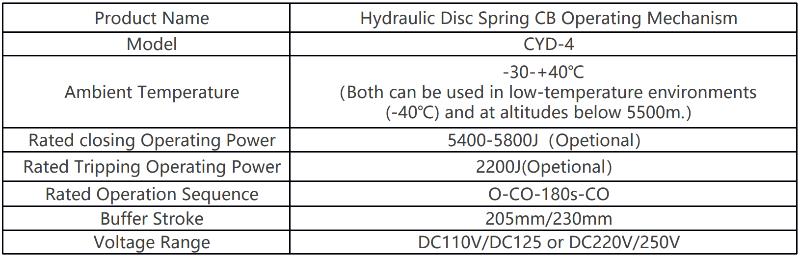

Product Technical Parameters
1. Operating power of door opening under locking pressure: 5400-5800J
2. Closing operation power under closing locking pressure: 2200J
3. Motor rated voltage DC220V/AC220V or DC110V/AC110
4. Rated power of motor: 470W-660W
5. Rated voltage disconnection energy storage time<34s
6. Rated voltage closing energy storage time ＜ 16s
7. Mechanism stroke 230 ± 1mm
8. The starting pressure of the safety valve is 81.5 ± 1MPa
9. Closing pressure 47 ± 1MPa
10. Locking pressure of split brake 37.5 ± 1MPa
Application scenarios
General: Indoor/Outdoor
Surrounding air humidity: upper limit+60 ℃, lower limit -30 ℃.
The altitude shall not exceed 3000m.
Wind pressure not exceeding 700Pa (equivalent to a wind speed of 34m/s)
No fire, explosion hazard, serious pollution, corrosive gas, or severe vibration.
Special: can be customized according to actual needs, such as high altitude, low temperature, hot, humid, etc.
