AD Series switching power supply

$56.00

Model

Basic info Product Detail Supplier

Basic info

Brand	Wone Store
Model NO.	AD Series switching power supply
Rated power	150W
Certification	CE
Insulation resistance	≥100MΩ(500VDC)
Operating environment	-10℃~60℃
Wide voltage input range	AC100V-260V
rated output of CH1	27.6,5.5A
rated output of CH1	26.5V,0.5A
Wide frequency range	47-63Hz
Series	AD Series

Product Detail

The 55 - 155W battery - charging switching power supply without PFC has the following core features: medium - power output (suitable for small and medium - sized battery packs), no power factor correction circuit (lower cost, suitable for scenarios where there is no mandatory requirement for power grid utilization), and a switching power supply architecture (higher conversion efficiency and relatively compact size). It is mainly used to meet the charging needs of small and medium - sized rechargeable batteries that are sensitive to charging speed and cost and do not need to strictly meet high - power - factor standards (such as non - industrial, civilian, or some commercial scenarios). The specific application scenarios are as follows:

1. Backup power supply systems for electromechanical equipment.

2. Battery - powered systems for security and monitoring equipment.

3. Charging supplements for vehicle - mounted and outdoor equipment.

Features:

Wattage:55W-155W

AC input suitable for the whole world

With Charging function

Protections:Short Circuit/Over Load/Over Voltage/Over Temp

100% full load burn-in test

2 years warranty

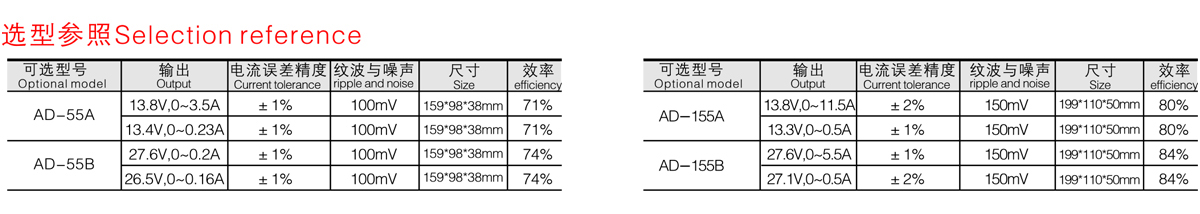

selection reference

If you need to know about or order switching power supplies of other specifications, Please check the model selection manual.↓↓↓

Or you are welcome to contact us.→→→
