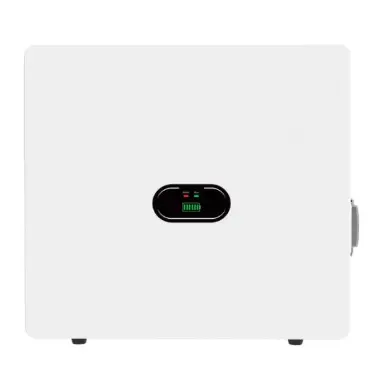

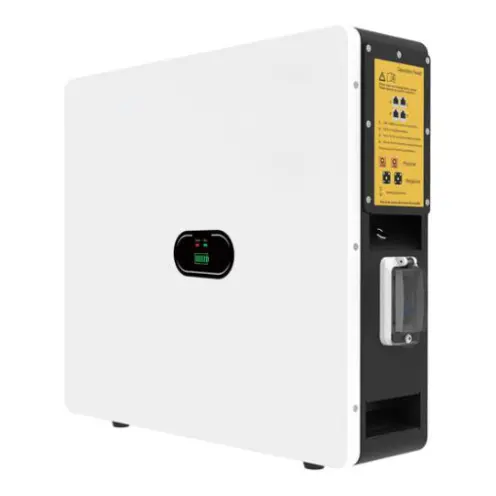

5.12kWh low-voltage wall-mounted lithium battery
discuss personally
Model
ESS-5.12
Basic info Product Detail Supplier
Basic info
Brand RW Energy
Model NO. 5.12kWh low-voltage wall-mounted lithium battery
Energy storage capacity 5.12kWh
Series Residential energy storage
Product Detail

Product Overview：

low-voltage wall-mounted lithium battery, suitable for XD3-6KTL energy storage inverter, used in home photovoltaic system. With an easy-to-install plug-and-play design, it is equipped with cobalt-free lithium iron phosphate cells for maximum safety and life cycle.

Features:

  • Easy to install：Plug-and-play design for easy installation.

  •  Flexible and worry-free：Flexible capacity expansion, up to 15 parallel units.

  • Safe and reliable：Cobalt-free lithium iron phosphate (LFP) batteries: maximum safety and life cycle.

  • Easy operation and maintenance：LED display, easy to grasp the battery SOC and operating status.

Specifications：

Category

Parameter

Specification

Battery Type

LiFePO₄

Electrical

Nominal energy

5120 Wh

Nominal capacity

100 Ah

Depth of discharge

80%

Nominal voltage

51.2 V

Operating voltage range

43.2-56.16 Vdc

Nominal charge/discharge current

50 A

Max charge/discharge current

100 A

Physical

Dimensions (W×H×D)

520×470×141.5 mm

Weight

47.2 kg

Installation

Wall/Floor mounted

Environmental

Charging temperature

0-55℃

Discharge temperature

-20℃ to +60℃

Ingress protection

IP65

Relative humidity

5-95%

Max operating altitude

2000 m

System

Parallel units

Up to 15 units

Communication

RS485, CAN

Display

LED

Cycle life

6000 cycles @80% DOD, 25℃, 0.5C

Certification

Standards compliance

CE, IEC, UN38.3, MSDS
