40.5kV series SF6 gas-insulated switchgear
Key attributes
| Brand | ROCKWILL |
| Model NO. | 40.5kV series SF6 gas-insulated switchgear |
| Rated voltage | 40.5kV |
| Rated frequency | 50/60Hz |
| Series | NG7 |
Product descriptions from the supplier
Description
NG7-40.5 series SF6 gas-insulated switchgear is a new generation of miniaturized products designed and manufactured by Rockwill according to IEC 62271-200.It has a variety of combinations and can be flexibly extended, which not only meets the requirements of power distribution, but also meets the needs of various secondary distribution application for flexible compact switchgear. It is widely used in public power grids, rail transit, new energy E-house, solar farm, wind farm, data center and other new energy fields.
Product Advantages
- Complete mechanical interlock：The reliable interlock design ensures safety of operators.No any additional tools needed when opening the cableroom door.
- Easy to operate：4m is the most comfortable height for people, combined with reliable mechanical interlocking, which is convenient for the operator.
- Compact structure：The compact design makes the best use any of the space inside the cabinet, and the width of the 420/500 cabinet is the first-class in the industry.
- Flexible extension：The modular design realizes the building block installation of each component, and the field extension is convenient and flexible.
- Lifetime maintenance-free：The live actuated parts are fully sealed inside the gas tank and are not affected by the environment, maintenance-free during its life cycle.
- Adapt to harsh environments：The completely sealed insulating structure makes it extremely adaptable to environmental influences. It is suitable for various harsh environments such as high altitude, high pollution, high salt spray, etc.
Parameters
|
Item |
Unit |
Value |
||
|
Load switch unit (C) Circuit breaker unit (V |
Load switch unit (C) Circuit breaker unit (V |
|||
|
Rated voltage (IEC/GB) |
kV |
36 / 40.5 |
||
|
Rated frequency |
Hz |
50 (60) |
||
|
Rated normal current * |
A |
630(x1.1) |
630/1250(x1.1) |
|
|
Rated short-duration power frequency voltage (1min) |
To earth & between phases (IEC/GB) |
kV |
70 / 95 |
|
|
Across the isolating distance (IEC/GB) |
80 / 118 |
|||
|
Rated lightning impulse voltage |
To earth & between phases (IEC/GB) |
kV |
170 / 185 |
|
|
Across the isolating distance (IEC/GB) |
195 / 215 |
|||
|
Rated power frequency voltage of control and auxiliary circuits (1min) |
kV |
2 |
||
|
Rated short-time withstand current & duration ** |
kA |
25/4 (20/4) |
||
|
Rated peak withstand current ** |
kA/s |
63 (52) |
||
|
Rated short-circuit breaking current ** |
kA |
- |
25 (20) |
|
|
Rated short-circuit making current ** |
kA |
63 (52) |
||
|
Mechanical endurance |
Circuit breaker |
- |
- |
10000 |
|
Load switch / Disconnector |
5000 |
|||
|
Earthing switch |
3000 |
|||
|
Rated functional pressure for insulation and interruption (relative at 20°C) |
Mpa |
0.04 |
||
|
Minimum functional pressure for insulation and interruption (relative at 20°C) |
Mpa |
0.02 |
||
|
Gas leakage rate |
/year |
≤ 0.01% |
||
|
Degree of protection |
Gas tank |
- |
IP67 |
|
|
Gas tank |
- |
IP4X, IK10 |
||
|
Internal arc classification AFLR |
kA/s |
16/1, 20/1, 25/1 |
||
|
Altitude |
m |
≤ 5000 |
||
|

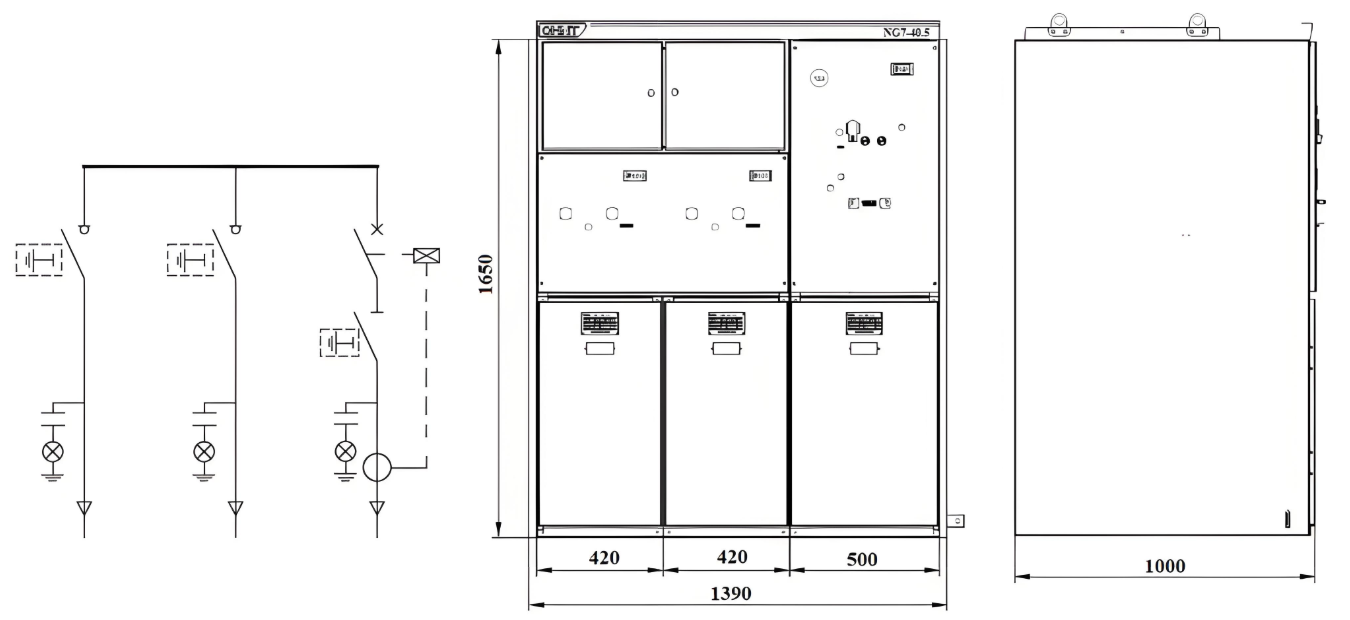

Dimension (Width x Depth x Height) *** |
mm |
420 x 1000 x 1650 500 / 550 x 1000 x 1650 |
420 x 1000 x 1650 500 / 550 x 1000 x 1650 |
|
Online store
On-time delivery rate
Response time
100.0%
≤4h
Company overview
Workplace: 108000m²m²
Total staff: 700+
Highest Annual Export(usD): 150000000
Services
Business Type: Design/Manufacture/Sales
Main Categories: High Voltage Electrical Apparatus/Electric transformer
Whole life care manager
Whole-life care management services for equipment procurement, use, maintenance, and after-sales, ensuring safe operation of electrical equipment, continuous control, and worry-free electricity consumption.
