Distribution transformer calculations – MS Excel Spreadsheet

Distribution transformer calculations of losses, efficiency, and load capacity that can be automated using an MS Excel spreadsheet. Download the template to simplify design, save time, and improve accuracy.

Field: Electrical Standards

10Year<

China

Add us on Google

Four Fast Transformer Calculations

The distribution transformer calculations spreadsheet enables rapid computations for the following: ascertaining the MV/LV transformer rating, calculating the rating of the overcurrent protection device on the low - voltage side of the transformer, determining the prospective short - circuit current, and computing the sizes of natural ventilation openings required for the transformer room.

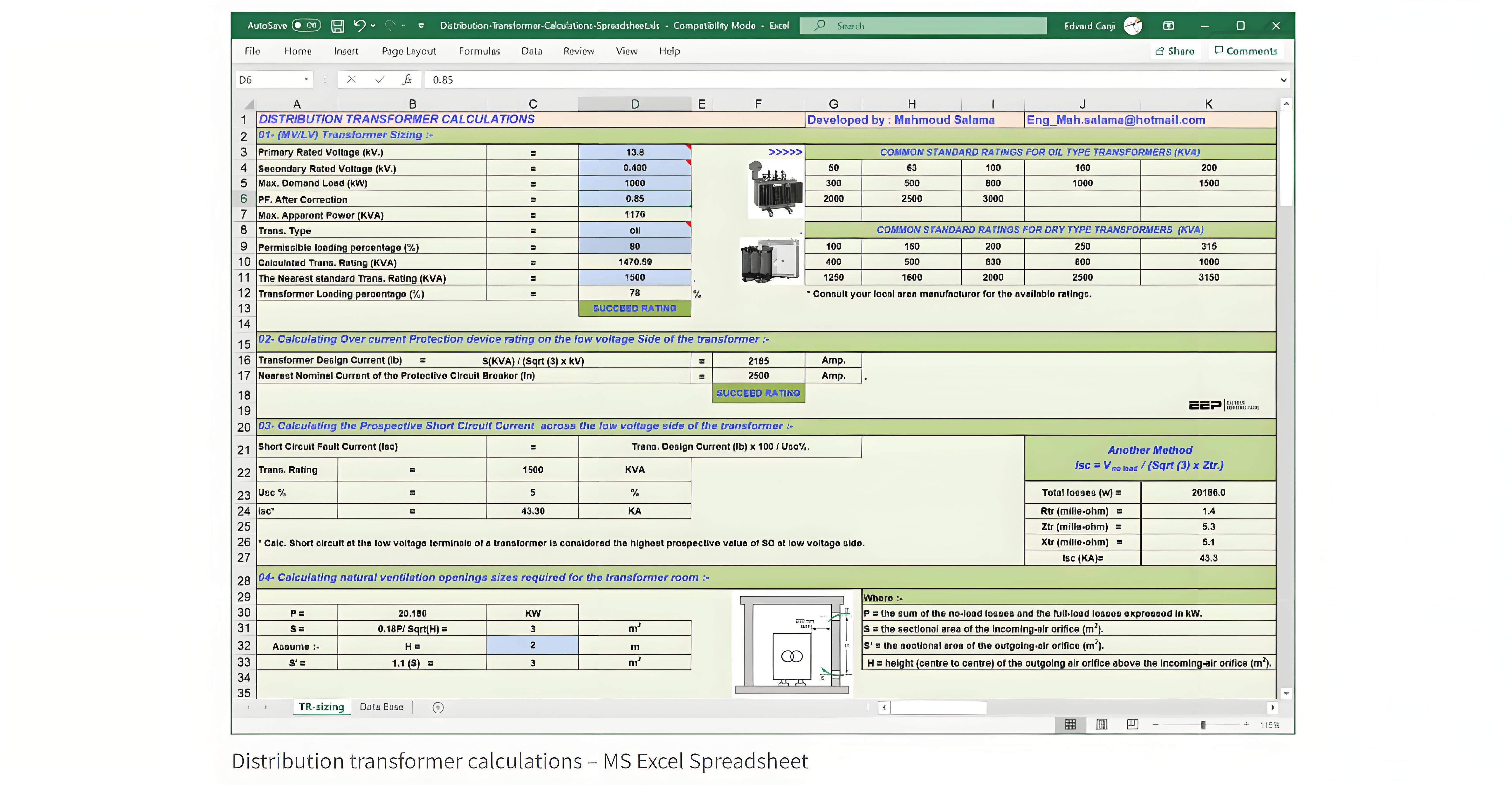

Distribution transformer calculations – MS Excel Spreadsheet

Determining the MV/LV Transformer Rating

Input Parameters:

Primary Rated Voltage (kV)
Secondary Rated Voltage (kV)
Maximum Demand Load (kW)
Corrected Power Factor
Transformer Type
Permissible Loading Percentage (%)
Nearest Standard Transformer Rating (kVA)

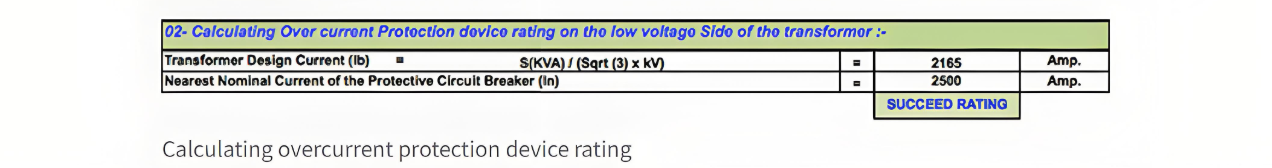

Calculating the Rating of Overcurrent Protection Device on the Low - Voltage Side of the Transformer

Distribution transformer calculations – MS Excel Spreadsheet

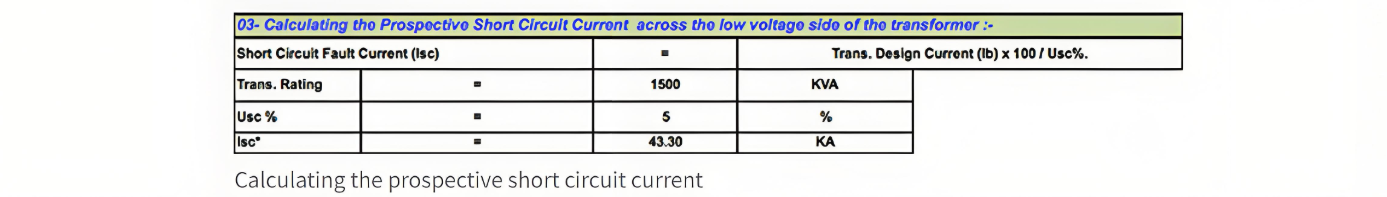

Calculating the prospective short - circuit current on the low - voltage side of the transformer

Distribution transformer calculations – MS Excel Spreadsheet

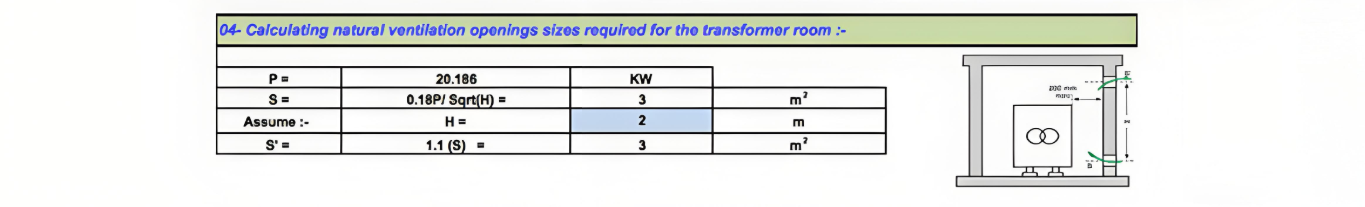

Calculating the sizes of natural ventilation openings required for the transformer room.

Distribution transformer calculations – MS Excel Spreadsheet
