By deploying 29 Vziman RVR-1 pole-mounted voltage regulators, ensure that the 10kV line end voltage is stable within the rated range, fully complying with GOST, TR CU, and EAC certifications.

1. Demand Analysis: Core Challenges of Rural Grid Transformation in Russia

The Altai Krai region of Russia is vast, with its rural grid (Rural Grid) characterized by "low space density and long power supply distance." In the operation of the 10kV rural grid, severe voltage quality challenges are encountered:

Severe Voltage Drop at Line Ends: 10kV power supply lines often extend to remote pastoral areas or farms, with lengths exceeding 20-30km. Line impedance causes end voltages to frequently drop below 90% of the rated value, seriously affecting the normal operation of agricultural machinery and terminal distribution transformers.
Extreme Climate Conditions: The winter minimum temperature in this region can drop to -45°C. Ordinary power equipment is prone to insulating oil solidification, brittle seals, or mechanical mechanism jamming and failure.
Extremely Difficult Operation and Maintenance: The rural grid environment is complex and equipment is scattered. Traditional ground-based station-type voltage regulation solutions are too costly and easily affected by snow-blocked roads and snow burial. There is an urgent need for a highly reliable pole-mounted installation solution.
Strong Seasonal Loads: During peak agricultural production periods (such as sowing, irrigation, and harvesting), loads fluctuate violently, requiring voltage regulation equipment to have multi-stage, fine, and rapid on-load automatic adjustment capabilities.

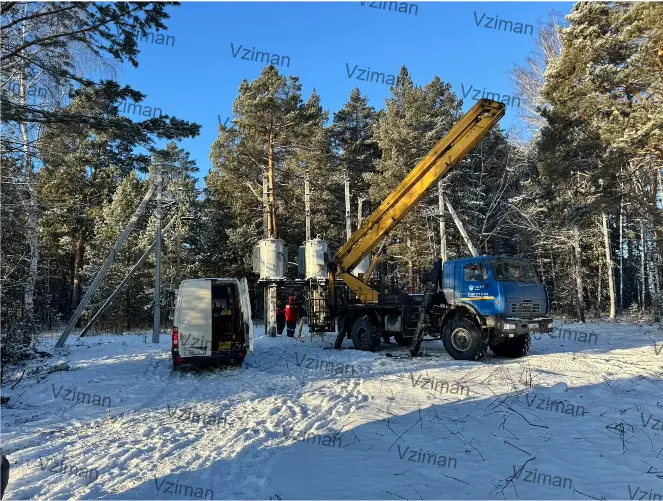

Vziman RVR-1 10kV Pole-Mounted Voltage Regulator Solution for Altai Krai, Russia

2. Technical Solution: Precise Compensation of Vziman RVR-1 Pole-mounted Voltage Regulator

Tailored for the characteristics of 10kV lines in the Altai region, Vziman has adopted the RVR-1 step-type on-load automatic voltage regulation solution. This solution installs the voltage regulator directly in series at the midpoint of the 10kV line or at the load center.

2.1 Technical Principles and Core Advantages

The RVR-1 voltage regulator monitors the line voltage in real-time and drives the On-Load Tap Changer (OLTC) to automatically switch taps, changing the device transformation ratio to achieve voltage compensation:

16-Step Fine Adjustment: Utilizes 16-step cascade adjustment with a step size of 1.25%/step, ensuring a smooth regulation process without voltage jumps, effectively protecting terminal electrical equipment.
Extreme Low-Temperature Operation Design: Deeply customized for the Russian climate, with a minimum operating temperature of -45°C. Special low-temperature transformer oil and high-performance cold-resistant seals are used to ensure the tap changer operates freely in extreme cold.
High-Protection Pole-Mounted Installation: IP55 protection rating, using a double-pole cross-arm mounting method, effectively preventing snow, dust, and small animals, significantly saving land acquisition and civil engineering costs for substations.
Intelligent Automatic Control: Built-in intelligent controller supports automatic adjustment based on the inverse time principle, featuring overcurrent protection, undervoltage bypass, and remote data monitoring interfaces.
Comprehensive Compliance Access: Product design strictly follows GOST, TR CU, and EAC standards, fully meeting the access and grid-connection specifications of the Russian power system.

Vziman RVR-1 10kV Pole-Mounted Voltage Regulator Solution for Altai Krai, Russia

2.2 Technical Specifications (RVR-1)

Parameter Item	Specification / Indicator
Model	RVR-1
Installation Method	Pole-mounted (Double-pole cross-arm)
System Voltage	10 kV
Rated Regulation Capacity	300 kVA
Rated Load Current	300 A
Insulation Withstand (Power Freq)	32 kV
Current Transformer (CT) Ratio	400 A
Regulation Range	±10%
Regulation Mode	On-load Automatic Voltage Regulation
Regulation Steps	16 steps (1.25% per step)
Protection Rating	IP55
Min Operating Temperature	-45°C
Compliance Standards	GOST, TR CU, EAC

3. Empirical Study: 10kV Line Governance Effectiveness in Altai Krai

Project Dimension	Detailed Content
Implementation Site	A 10kV agricultural long trunk line in Altai Krai, Russia
Pre-governance Status	Line length approx. 28km; end voltage during peak irrigation periods was only 8.8kV, leading to a surge in downstream transformer losses and frequent motor damage due to overheating.
Engineering Deployment	Installed a Vziman RVR-1 (300kVA) regulator at the 15km node of the line using double-pole mounting.
Governance Results	1. Voltage Recovery: End voltage stabilized within 10.2kV ± 1.5% through automatic regulation.2. Efficiency Improvement: Due to voltage recovery, current decreased for the same power, reducing line losses by approx. 8.5%. 3. Low-Temp Stability: In an extreme cold environment of -42°C, the Vziman switching mechanism operated smoothly without oil pressure anomalies or mechanical jamming.

Vziman RVR-1 10kV Pole-Mounted Voltage Regulator Solution for Altai Krai, Russia

4. Value Assessment: Analysis of Long-term Operation and Economic Advantages

4.1 Economical and Efficient Rural Grid Optimization Strategy

Compared to rebuilding 10kV lines or building new substations, the Vziman RVR-1 solution's construction cost is only 20%-30% of the former, with a shorter construction period. It is the optimal technical choice for solving voltage deviation issues in Russia's vast rural areas.

4.2 Extreme Environmental Tolerance and Low Maintenance Cost

With its IP55 protection rating and -45°C cold-resistant design, the RVR-1 overcomes the harsh natural environment of the Siberian region, reducing on-site inspection requirements by 70% and significantly enhancing power supply reliability in remote areas.

5. Authoritative Standards: Compliance Certification and Industry Specifications

GOST R 52719-2007 General technical conditions for power transformers
GOST 15150-69 Machines, instruments and other technical products. Execution for different climatic regions. Categories, operating conditions, storage and transportation
TR CU 004/2011 On safety of low-voltage equipment (Eurasian Union Technical Regulation)
TR CU 020/2011 Electromagnetic compatibility of technical equipment (Eurasian Union Technical Regulation)
IEC 60076-1:2011 Power transformers - Part 1: General
IEC 60214-1:2014 Tap-changers - Part 1: Performance requirements and test methods
