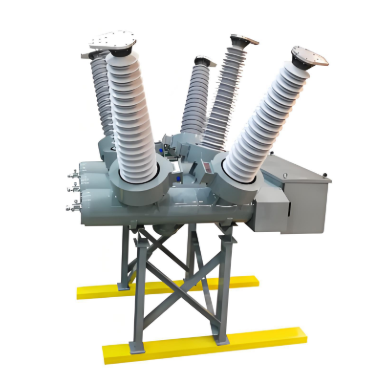

Seismic Design Solution for Dead Tank SF6 Circuit Breaker in Peru: Integrating Earthquake Protection and High-Voltage Equipment Specifications

1. Seismic Design Context and Requirements for Peru

Peru's location within the Pacific Ring of Fire necessitates adherence to stringent seismic standards (e.g., 8-degree intensity per code E.030). For critical infrastructure like the Dead Tank SF₆ Circuit Breaker, design priorities include:

• Foundation Stability: Ground motion parameters directly shape the base design of the Dead Tank SF₆ Circuit Breaker.

• Structural Safety: Class I seismic resistance is mandatory for the Dead Tank SF₆ Circuit Breaker, exceeding standard industrial requirements (Class ≥II).

• Dynamic Response Control: Damping systems must limit energy transfer to the Dead Tank SF₆ Circuit Breaker during quakes.

2. Seismic Design Strategy for the Dead Tank SF₆ Circuit Breaker

2.1 Structural Optimization

• Tank and Support System: The Dead Tank SF₆ Circuit Breaker employs a dual-layer structure: inner SF₆ chamber + outer alloy frame with C-shaped steel connectors. Inclined columns (≤15°) with adjustment screws stabilize the Dead Tank SF₆ Circuit Breaker against lateral forces.

• Damping Integration: Hydraulic dampers absorb S-wave energy transmitted to the Dead Tank SF₆ Circuit Breaker. Locking mechanisms activate at >0.3g acceleration to secure the Dead Tank SF₆ Circuit Breaker's operating rods.

2.2 Material and Process Innovations

• Lightweight Alloys: Al-Mg-Si tanks (≥480 MPa strength) reduce the Dead Tank SF₆ Circuit Breaker's mass by 30% without compromising seismic performance.

• Hybrid Gas System: SF₆/CF₄ gas mixtures prevent liquefaction in the Dead Tank SF₆ Circuit Breaker at Andean temperatures (-50°C). Flexible bellows (±5 mm tolerance) protect the Dead Tank SF₆ Circuit Breaker's gas seals during ground motion.

2.3 Seismic Installation Standards

• Foundation Requirements: C35 concrete and LRBs (≥20 kN/mm vertical stiffness) anchor the Dead Tank SF₆ Circuit Breaker.

• Frequency Calibration: Post-installation sweeps ensure the Dead Tank SF₆ Circuit Breaker avoids Peru's dominant seismic bands (1.5–5 Hz).

2.4 Intelligent Monitoring

• Embedded Sensors: Triaxial accelerometers track real-time stresses on the Dead Tank SF₆ Circuit Breaker.

• Early Warning Integration: The Dead Tank SF₆ Circuit Breaker links to Peru's IGP network for preemptive shutdowns.

3. Performance Validation

3.1 Seismic Testing

• The Dead Tank SF₆ Circuit Breaker achieved IEEE 693-2018 HL certification under 0.4g PGA shaking.

• Load tests verified lateral (≥0.5× weight) and longitudinal (≥1.2× weight) capacity for the Dead Tank SF₆ Circuit Breaker.

3.2 Environmental Compliance

• Altitude Adaptation: The Dead Tank SF₆ Circuit Breaker's insulation is scaled by 1.15× for 2000m Andes deployment.

• Coastal Durability: Pollution Class IV design (≥31 mm/kV creepage) shields the Dead Tank SF₆ Circuit Breaker from salt fog.
