Performance Optimization of Compact Substations: Innovative Technical Solutions and Full-Cycle Implementation Guide

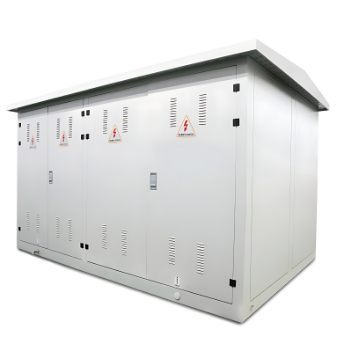

1. Challenges and Innovative Solutions
Despite significant advantages, compact substations still face technical challenges in practical applications. Performance optimization requires innovative solutions.

1.1 Thermal Performance Optimization

• Core Issue:Heat accumulation effect of equipment in enclosed space

• Innovative Solutions:

• Directed Airflow Technology:Establishing independent air ducts (dedicated transformer-radiator channels), avoiding heat exchange interference; improves heat dissipation efficiency by 40%.

• Phase Change Material (PCM) Application:Filling cabinet walls with microencapsulated PCM (melting point 45°C) to effectively buffer temperature spikes.

• Intelligent Control System:Staged ventilation activation (natural ventilation at 40°C → forced ventilation at 50°C → air conditioning cooling at 60°C).

1.2 Overcoming Space Constraints

• Core Issue:Conflict between functional density and maintenance accessibility within limited space.

• Innovative Solutions:

• 3D Layout Optimization:Adopting Z-shaped busbar arrangement, improving vertical space utilization by 30%.

• Modular Sliding-out Design:Circuit breaker modules equipped with rail systems, allowing entire unit to slide out for maintenance.

1.3 Initial Investment Control

• Core Issue:Prefabrication increases the proportion of equipment costs.

• Innovative Solutions:

• Modular Tiered Configuration:Basic Type (essential functions) / Enhanced Type (+smart monitoring) / Advanced Type (+capacity & voltage regulation).

• Financial Model Innovation:EPC + Energy Performance Contracting, amortizing equipment premium through energy savings.

• Standardized Design:Establishing a library of 12 standard solutions to reduce non-standard design costs.

1.4 Electromagnetic Interference (EMI) Protection

• Core Issue:Electromagnetic compatibility (EMC) challenge within compact space.

• Innovative Solutions:

• Layered Shielding Technology:Transformer compartment uses a composite structure of μ-alloy (low-frequency shielding) + copper mesh (high-frequency shielding).

• Active Cancellation System:Real-time monitoring and generation of counter electromagnetic fields, achieving field strength suppression of 20dB.

• Topology Optimization:Dyn11 connection combined with star-delta windings, suppressing 3rd harmonic by over 90%.

2. Implementation Pathway Recommendations
Successful compact substation projects require a scientific approach and phased execution of key tasks.

2.1 Planning Phase

• Load Characteristic Analysis:Use smart meter data for 8760-hour load simulation to identify peak/valley characteristics (e.g., a food plant found load <40% Sn for 30% of operating time).

• Scenario-based Selection:

• Location Optimization:Apply Voronoi algorithm to delineate supply zones, ensuring distance from load center to substation &le;500m.

2.2 Design Phase

• Modular Configuration:Example - Hospital Project:

• Base Unit: 2&times;800kVA transformers (N+1 redundancy)

• Expansion Module: 125kW emergency power interface

• Smart Kit: Power quality monitoring + fault pre-warning

• Digital Twin Application:Conduct electromagnetic field simulation (ANSYS Maxwell), thermal analysis (Fluent), and structural verification (Static Structural) on a BIM platform to predict design flaws.

• Connection System Optimization:Adopt closed-loop operation (normally open-loop), reducing short-circuit current by 40%.

2.3 Installation Phase

• Foundation Innovation:Precast concrete base (3-day curing) vs. traditional cast-in-place (28-day curing).

• Commissioning Process:Factory pre-commissioning (90% function verification) →On-site joint commissioning (48 hours).

2.4 Operation & Maintenance (O&M) Phase

• Intelligent O&M System:

• Real-time Monitoring Layer:SCADA + IoT platform (5-minute data refresh).

• Analysis & Alert Layer:Lifespan prediction based on equipment degradation models (error <5%).

• Decision Support Layer:Maintenance strategy optimization (reducing O&M costs by 35%).

• Condition-Based Maintenance (CBM) Strategy:Transition from "time-based maintenance" to "data-driven maintenance"; reduced failure rate by 70% in a water plant case.

• Lifecycle Management:Conduct comprehensive performance assessment every 5 years over a 20-year lifespan, implementing energy efficiency upgrades as appropriate.
