A new market trend E-House Solution

Overview

E-House Solution

The Electrical House (E-House) is a factory integrated, tested, validated, compact power distribution solution. The E-House typically contains Medium Voltage and Low Voltage switchgears, motor control centers,VFD systems, transformers, HVAC,UPS
c/w batteries, building management, instrumental and control systems, telecom systems. Despite different names can be used
according to specific applications and configurations, such as MSS (Modular Substation), PDC (Prefabricated Distribution
Center), LER (Local Equipment Room), EIT (Electrical Instrumental Telecom) Building etc., it helps to reduce construction lead
times, optimize the cost of transportation, installation, and commissioning, and enhance uptime thanks to qualified and reliable
design.

The E-House is the ideal solution for projects in all type of industries such as Oil & Gas, Mining & Minerals, Transportation
facilities, Data Centers, Off-shore, Utilities, Electro-intensive industries, New Energy, or Railways.

Increase safety for people and equipment:

• Internal arc protection and thermal insulation

• Equipment protection in harsh environments

• Compliance with localstandards

Reduce costs:

•  CAPEX reduction thanks to reduced engineering, installation, and commissioningcosts

•  The complete engineered solution is controlled, tested and pre-commissioned within the factory it enables to save time
   on-site

• OPEX reduction via a highly serviceable design and local technical experts

• Enhanced uptime due to qualified and reliable design

Simplify:

• One partner for the complete distribution solution

• One project management team simplifies processes, time management, and control

• One engineering design team optimizes costs

The largest integrated Solution for energymanagement

For painless execution of your industrial projects

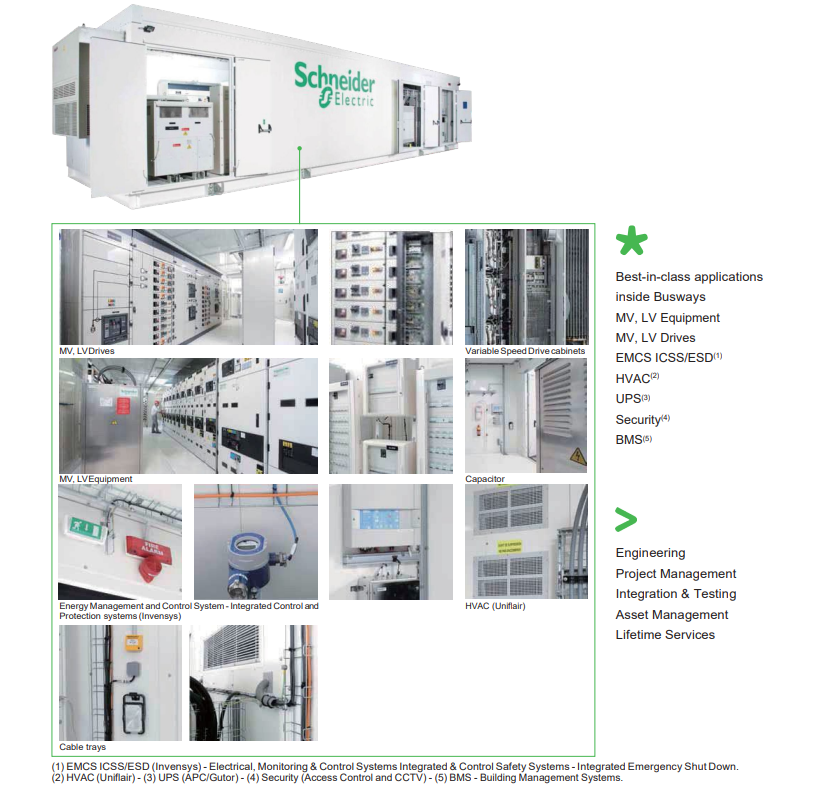

Fully assembled and tested at the factory, an E-House contains a variety of integrated Schneider Electric equipment to meet the
demanding requirements of yourapplications.

Capability

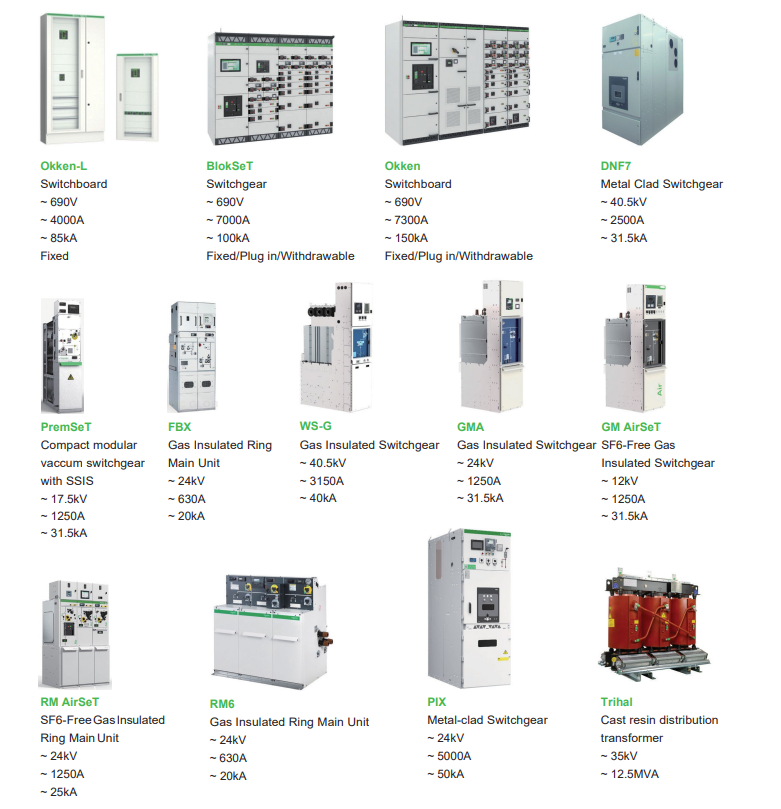

To meet your power distribution requirements, we offer primary components that range from 400 V switchboards to 40.5 kV
switchgear. Our transformers range from 0.2 to 35 kV, while our secondary equipment also offers a variety of cost effective power
distribution solutions. Our choices are designed to help you address individual facility environments, floor space issues and
budgetary concerns. Additionally, they incorporate the most efficient choices of technology. These choices come together to give
you optimal performance for your specific application.

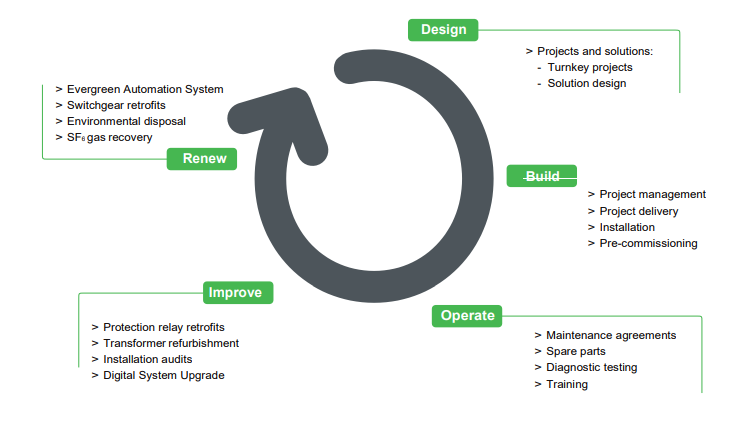

Services & LifecycleSupport

Through its Service team, Schneider Electric offers the benefits of true
lifecycle support for our customer’s electrical distribution systems.

Our capabilities enable us to provide a wide range of services and solutions
for your installations; from initial concept design to end-of-life management
and renewal programs.

Our highly trained services team work with you to understand your needs
and offer individually tailored solutions, allowing you to focus on your core
business. Schneider Electric has local and global project teams to manage
your automation, electrical distribution and energy management projects.

With a full range of services, encompassing strategic consulting, design and
engineering, maintenance agreements, support and education; Schneider
Electric is the right partner for your projects and engineering challenges.

Schneider Electric Services provides specialist manufacturer’s support for
your medium voltage equipment – delivering value throughout your system
lifecycle.

Successful Case

French SPL clay calcination project

Customer’s Requirements

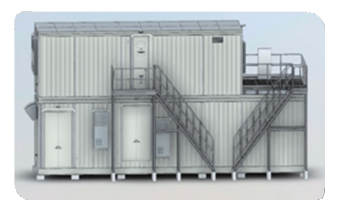

• Space limitation of old factory area, 3D model, match site installation environment

• Double-tier E-house integration scheme for fast delivery and installation

• EU design standards and product certification

• Local supply of electrical equipment, pre- assembly and joint commissioning cooperation


Our Solutions

• 1 set double layer E-house site positioning and joining

• Integrated with a variety of electrical devices: LVC,VSD, UPS, ACC, HVAC, LDB, Dry Transforme

• Customized design of air conditioning system to meet the heat demand of large capacity frequencyconverter

• Full system installation, joint commissioning


Customer’s Benefits

• Delivery/commissioning of E-House within 3 months

• Full system integrated project management

• Reduce the workload of on-site civil construction and installation difficulty

• Guaranteed fast power up and production

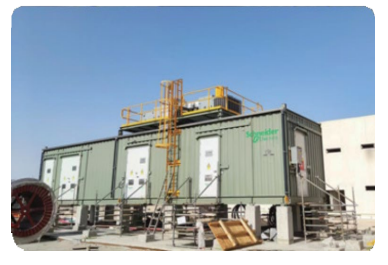

Saudi Arabia Maritime Yard Project

Customer’s Requirements

• Site environment: port + desert

• Single supplier of electrical and automation solutions

• Local supply of electrical equipment，fast and effective integrated testing and coordination

• Pre-assembled solution for all electrical equipment, reducing construction time and difficulty on site

Our Solutions

• Three packages comprise 117 E-houses, including Transformer, RMU, LV MDP, DC UPS, AC UPS, Battery, DB, HVAC, etc

• Roof type central air conditioning system, air duct system

• Dual transformer scheme

• The split joint, is scheme convenient for transportation

• The independent compartment of the equipment meets the needs of customers

• C4 corrosion resistantgrade


Customer’s Benefits

• Provide complete prefabricated modular substation

• Simplify the client’s management of design, construction and acceptance

• Reduce the time of the construction on site

• Lower the cost of the construction on site

• Raise the reliability of the whole system
