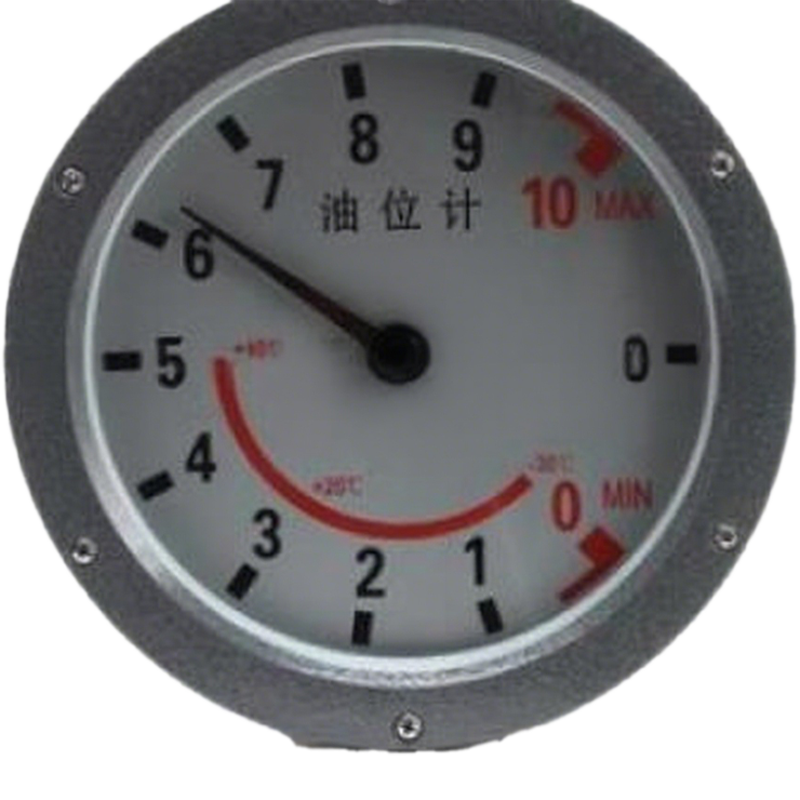

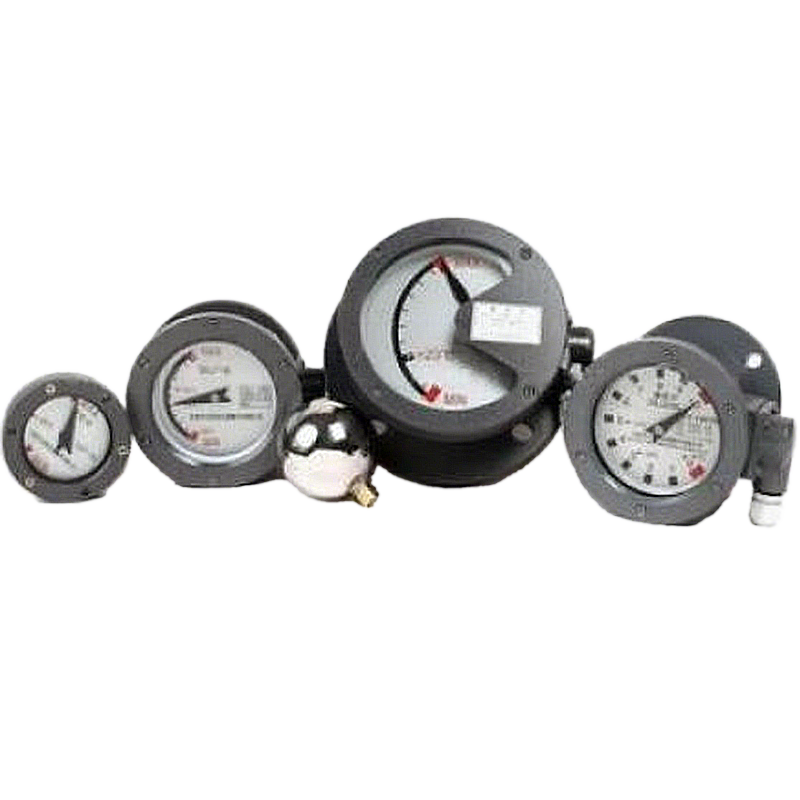

YZ Series Point type oil level indicator of transform
discuss personally
Model
YZF-100
YZF-120
YZF-140
YZF2-175
YZF2-200
YZF-200
YZFS2-250/YZB-250
YZF-250
YZF2-250
Basic info
Brand Transformer Parts
Model NO. YZ Series Point type oil level indicator of transform
Dial diameter 100
Installation diameter 100
Series YZ Series
Product Detail

Overview

YZ series point type oil level indicators are used for oil level indication of conservators of transformer and on load tap changer as well as oil level indication of various pressure and open type containers. The oil level indicator is not only is not only used for local indication but also can be used for remote control because it is provided with signal output of higher and lower oil level alarming. According to the JB/T 10692-2007 production.



Technology parameters

1.working temperature:-30℃~50℃

2.switch capacity:DC220 0.3A ; AC220 1A

3.Sealing performance:

Seal performance: Without leakage and deformation under the oil pressure of 0.3Mpa

5.YZF oil level indicator installatoin size simple list

 Type

φP

α

H

D

d

n - φx

α1

α2

φn xφ

YZF2 - 250

250

270°

170

156

130

6 - φ12

45°

20°

φ115 x 6

YZF - 250

250

270°

170

195

170

6 - φ12

45°

20°

φ152 x 8

YZF - 200

200

270°

155

195

170

6 - φ12

120°

20°

φ152 x 8

YZF2 - 200

200

120°

155

160

135

6 - φ12

120°

20°

φ115 x 5

YZF3 - 200

200

270°

155

160

135

6 - φ12

45°

20°

φ115 x 5

YZF2 - 175

175

120°

100

210

170

4 - φ18

60°


YZF - 140

140

120°

85

140

116

4 - φ13

120°

φ100 x 7

YZF3 - 140

140

270°

160

140

116

4 - φ13

45°

20°

φ100 x 7

YZS2 - 250

(YZB - 250)

250

270°

160

140

116

4 - φ13

 45°

20°

φ152 x 8

YZF - 120

120

120°

26

120

108

4 - φ6

120°

φ108 x 6

YZF - 100

100

120°

25

100

88

3 -φ7

120°

φ88 x 7



If you need to know about more parameters , Please check the model selection manual.↓↓↓
