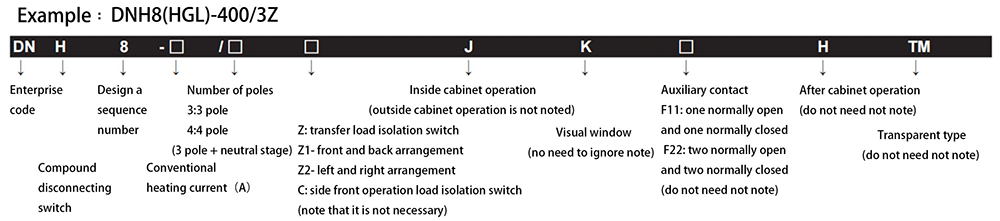

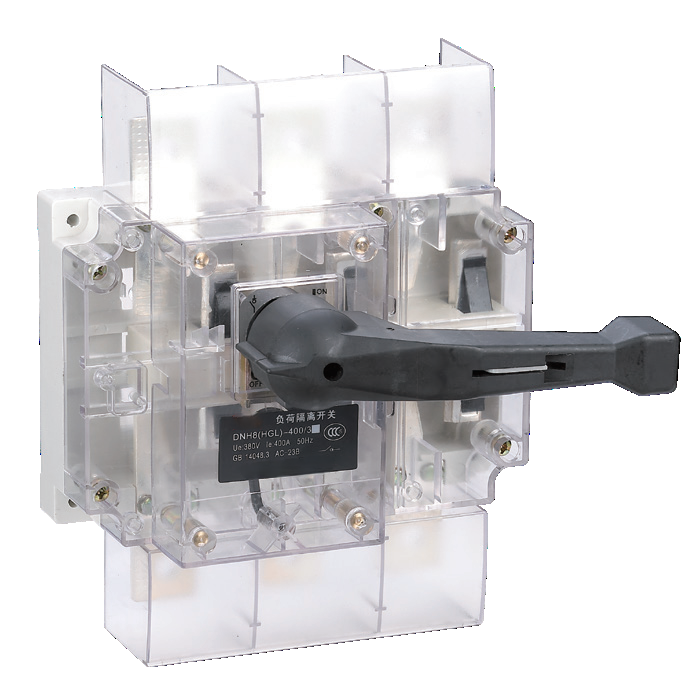

Transparent Load Disconnector DNH8(HGL)/TM Series

Operation Mode

• Direct operation: the handle is placed on the switch

• Operation outside the cabinet; The handle is installed outside the power distribution cabinet

The primary use for the transparent upper cover and small cover is to allow for direct observation of the internal structure and contact state. The extension shaft is used to allow for operation when the unit is outside of the cabinet. Suitable for various general and specialized cabinets in the field of low-voltage distribution, including GGD type low-voltage fixed switchgear, MNS type low-voltage withdrawable switchgear, XL-21 type low-voltage power cabinet, GCS type low-voltage withdrawable switchgear, etc

Outline and Installation Dimension (mm)
