HD13BX Knife Switch
Zhejiang Wone IT Service Co., Ltd...
1yrs +
staff 1000+m² US$300000000+
Key attributes
| Brand | Switchgear parts |
| Model NO. | HD13BX Knife Switch |
| Rated voltage | AC 400V/AC 690V |
| Rated normal current | 200A |
| number of poles | 3P,4P |
| Series | HD13BX |
Product descriptions from the supplier
Description

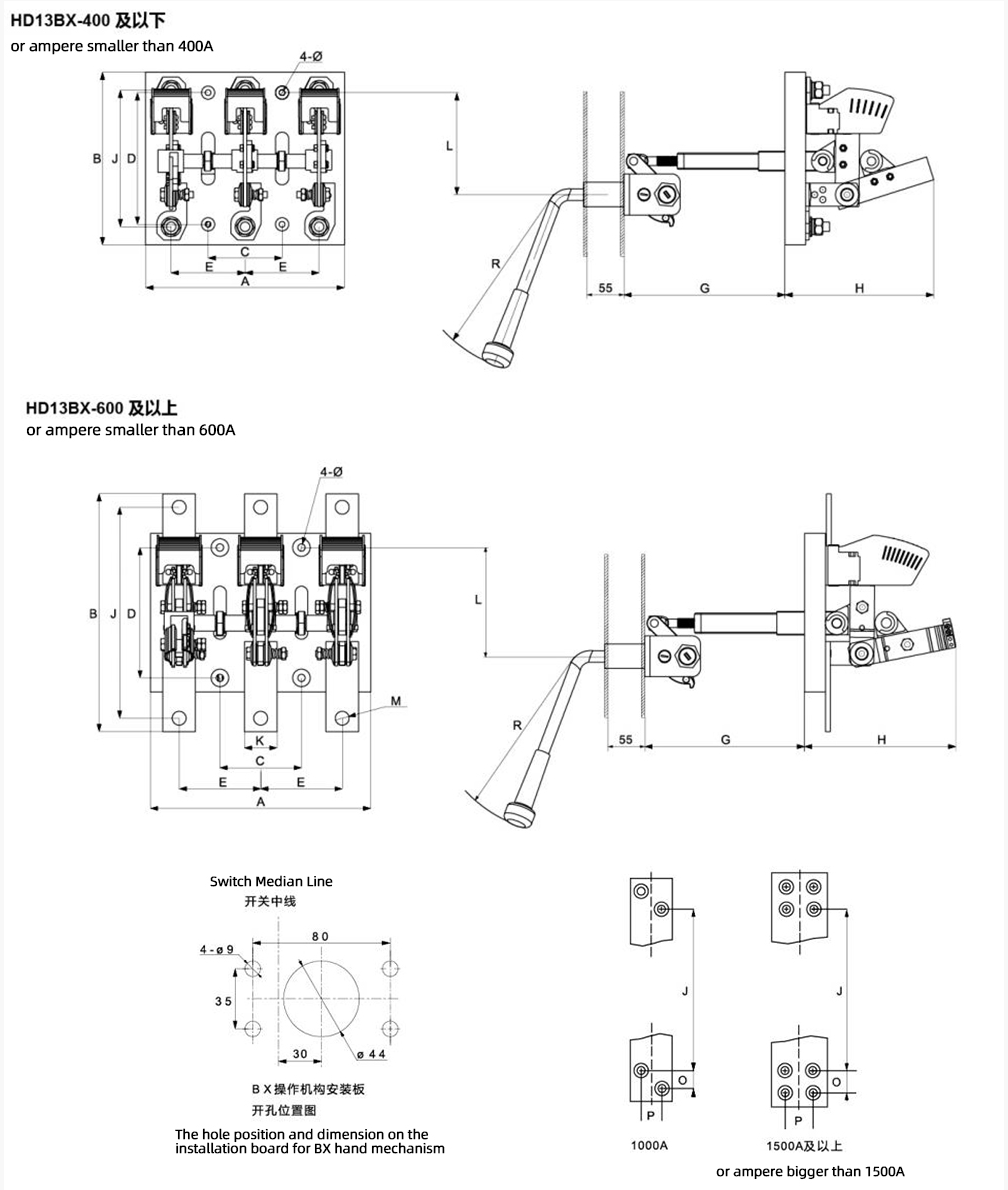

The components of the HD13BX Knife Switch
The HD13 Knife changeover switch is suitable for distribution panels at AC 50HZ ,rated voltage up to AC690V and rated ampere t to 3150A. Used for infrequently manually closing and breaking current circuits, or disconnector switches.With a middle operate handle, the switch is mainly applied in power system, be worked as a load break switch ,don’t cut off the circuit with current.HD13BX Knife Switch
|
Item |
Order No. | Current |
Working Condition |
|
1 |
HD13BX-200/31 |
200A |
The ambient temperature : +5 ° C~ +40 ° C installation location must be at an altitude of less than 2000 m
Humidity: When the highest temperature is +40℃, the relative humidity of the air does not exceed 50%. Higher relative humidity can be allowed at lower temperature, such as 90% at 20℃. Measures should be taken for occasional condensation due to ambient temperature changes.
environment pollution rating
The switch should be installed in a place where there is no significant shaking, shock vibration, and wind and rain. The switch should be installed in a place where there is no explosive medium and no gas and dust that can corrode metal and destroy insulation
The insulation material can reach flame retardant V0 grade |
|
2 |
HD13BX-400/31 |
400A |
|
|
3 |
HD13BX-600/31 |
600A |
|
|
4 |
HD13BX-1000/31 |
1000A |
|
|
5 |
HD13BX-1500/31 |
1500A |
|
|
6 |
HD13BX-2000/31 |
2000A |
|
|
7 |
HD13BX-1500/30 |
1500A |
|
|
8 |
HD13BX-2000/30 |
2000A |
|
|
9 |
HD13BX-3000/30 |
3000A |
|
|
10 |
HD13BX-200/41 |
200A |
|
|
11 |
HD13BX-400/41 |
400A |
|
|
12 |
HD13BX-600/41 |
600A |
|
|
13 |
HD13BX-1000/41 |
1000A |
|
|
14 |
HD13BX-1500/41 |
1500A |
|
|
15 |
HD13BX-2000/41 |
2000A |
|
|
16 |
HD13BX-1500/40 |
1500A |
|
|
17 |
HD13BX-2000/40 |
2000A |
|
|
18 |
HD13BX-3000/40 |
3000A |
