| Brand | Vziman |

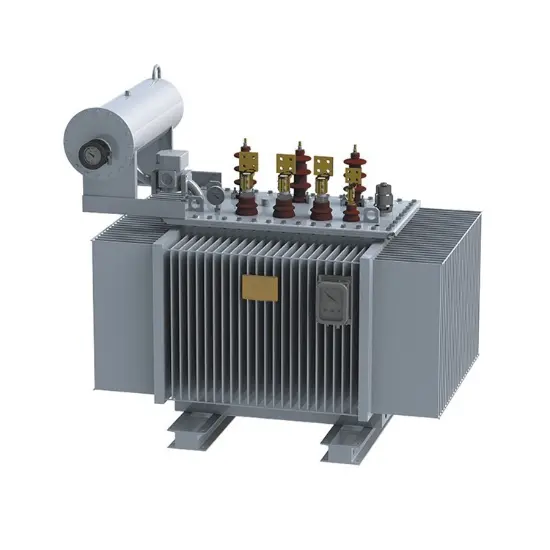

| Model NO. | Three-phase Oil-immersed distribution transformer 1000kVA 11kV |
| Rated voltage | 11kV |
| Rated capacity | 1000kVA |
| Series | S |

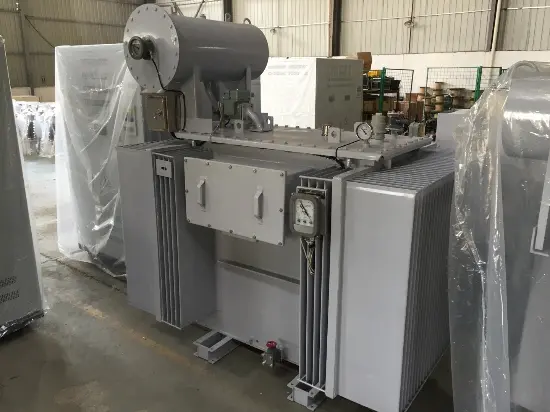

This Oil-immersed distribution transformer adopts our professional calculation and strict validation procedures to guarantee stable performance of the distribution transformer. Supported by advanced processing equipment, premium material selection and standardized production flow, the Oil-immersed distribution transformer features compact size, light weight, low loss, low partial discharge and low noise.
With stable operation, high reliability, cost efficiency and eco-friendly performance, this distribution transformer is widely applicable. The Oil-immersed distribution transformer is suitable for power plants, transformer substations, large industrial mining zones and petrochemical enterprises, delivering steady power conversion and distribution for various power system projects.
Ultralow no-load loss for the Oil-immersed distribution transformer.
Excellent energy saving performance and high power efficiency of the distribution transformer.
Pure copper coil winding endows the Oil-immersed distribution transformer with strong short-circuit withstand capability.
Dyn11 connection mode effectively reduces harmonic interference for the distribution transformer.
Fully sealed structure makes the Oil-immersed distribution transformer maintenance-free.
Slow insulation aging extends the service life of the distribution transformer.
Oil-immersed distribution transformer three-phase |
|
Model NO. |
S-1000-11 |
Product classification |
Distribution transformer |
Rated capacity |
1000kVA |
Primary voltage |
11kV |
Secondary voltage |
0.4kV |
Number of phase |
3 |
Number of winding |
2 |
Rated frequency |
50Hz |
Tap changer |
OCTC |
Tap range |
±2×2.5% |
Vector group |
Dyn11 |
Cooling system |
ONAN |
No-load loss |
1950+10% |
Load loss |
9500+10% |
Standard |
IEC60076 |
Impedance |
4% |
Basic insulation level |
75/28KV |
Winding material ( H.V & L.V) |
Copper |
The way the bushing appears |
Porcelain |
Power frequency withstand voltage |
—— |
Lightning impulse |
—— |
The temperature rise—Winding |
55k |
The temperature rise --Top oil |
65k |
Tank color |
—— |
Creepage distance |
—— |
Environmental requirement |
—— |

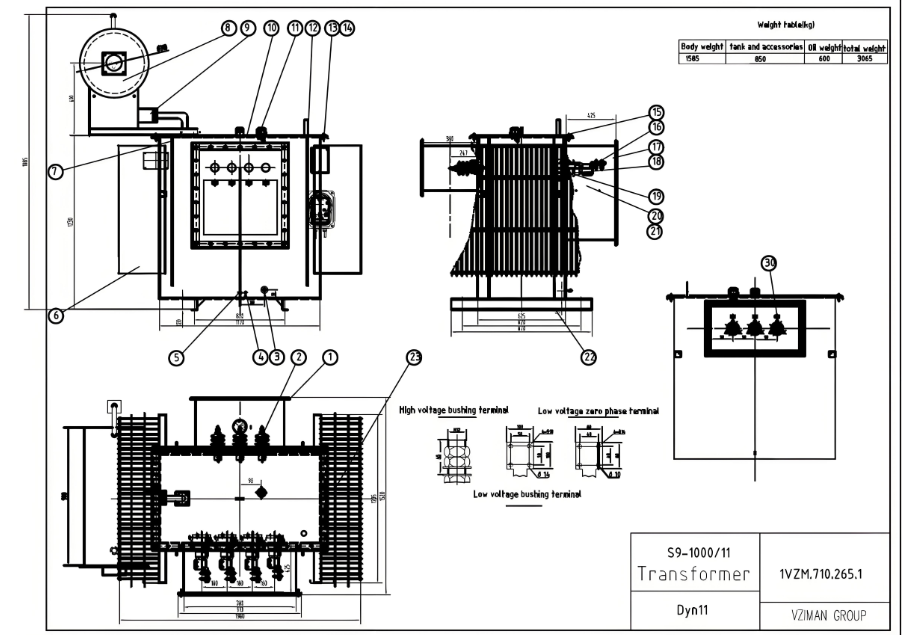

Transformer structure |
—— |
Size |
1980mm×1520mm×1885mm |
Weight |
1585KG |
Max. ambient temperature |
|
Altitude |
The Oil-immersed distribution transformer and distribution transformer are also widely used in urban and rural grid renovation, residential communities, commercial parks and new energy power stations, providing safe and reliable power distribution support for municipal construction and distributed power supply projects.
What is no-load loss？
No - load loss, also known as iron loss or no - load iron loss, refers to the electrical energy consumed by a transformer in a no - load state (that is, the secondary winding is open - circuited and there is no load current). This part of the loss mainly occurs in the iron core of the transformer and is an inevitable part of energy loss during the operation of the transformer. Understanding no - load loss is of great significance for evaluating the efficiency of a transformer and selecting an appropriate one. The following is a detailed explanation of no - load loss:
1. Definition
No - load loss refers to the loss generated in the iron core when the transformer is in a no - load state, that is, when the secondary winding is open - circuited, and the primary winding is still connected to the power supply. These losses mainly consist of the following two parts:
Hysteresis loss: The loss caused by the hysteresis effect of the iron core material.
Eddy - current loss: The loss caused by eddy currents in the iron core.
