Description：

Oil-immersed distribution transformer,use our company special calculation and validation procedures to make sure theperformance of products. superior process equipment ,elaborate materialselecting and efficient manufacturing make the Oil-immersed distribution transformer have smallvolume,light weight,low loss,low partial discharge,low noise characteristics.

The product is stable,reliable,economic, environmental protection. lt can beapplied to many places such as power plants,transformer substation ,largeindustrial mining and petrochemical enterprise and so on.

Features：

• Ultralow no-load loss

• Energy saving and great power consuming efficiency

• Copper coil winding, strong short circuit resistance ability

• Dyn11 coil connection decrease the influences of harmonic wave

• Fully sealed structure for maintenance free

• Slow insulation aging & longer serving life

Parameters：

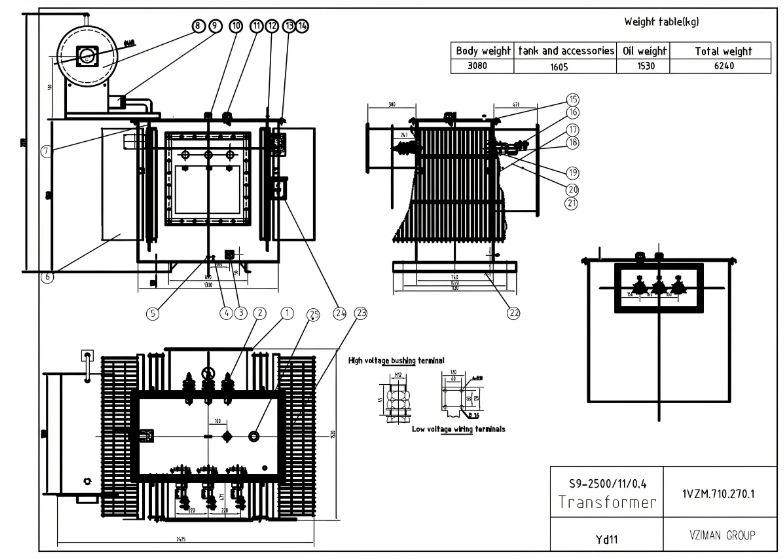

External dimensions：

Environmental requirement：

What are the structural characteristics of oil-immersed distribution transformers?

Definitions and Characteristics：

• Oil-Immersed: It means that the iron core and windings of the oil-immersed distribution transformers are immersed in insulating oil, and the oil plays a dual role of cooling and insulation.

• Distribution Transformer: It is used to convert high-voltage electrical energy into low-voltage electrical energy for users' use.
  Three-Phase: Usually, it means that the oil-immersed distribution has three independent windings and is applicable to three-phase alternating current systems.

Structural Characteristics：

• Iron Core: It is usually made by laminating high-quality silicon steel sheets, featuring low loss and low noise.

• Windings: The primary winding and the secondary winding are usually wound with copper wires, possessing excellent electrical conductivity and mechanical strength.

• Insulating Oil: The inside of the transformer is filled with insulating oil. The oil not only plays a cooling role but also provides good insulation performance.

• Oil Tank: The iron core and windings of the transformer are installed in the oil tank. The oil tank is usually made of steel plates and has good sealing performance.

• Cooling System: Depending on the power level, oil-immersed transformers can adopt natural cooling, air cooling or forced oil circulation cooling methods.

• Bushing: The high-voltage and low-voltage leads are led out through the bushing. The bushing has good insulation performance to ensure safe operation.
