| Brand | ROCKWILL |
| Model NO. | Solid Dielectric Switches |
| Rated voltage | 27kV |
| Series | UltraVac |
TRINETICS UltraVac switches are the best-in-class solid dielectric capacitor switches designed for high reliability and long life. The solenoid operated UltraVac switch offers the greatest number of mechanical operations with no maintenance and industry leading C2 re-strike free performance suited for advanced capacitor switching applications.
● UltraVac, 15kV, 110kV BIL PN: 33247102
● UltraVac, 24kV, 125kV BIL PN: 33247202

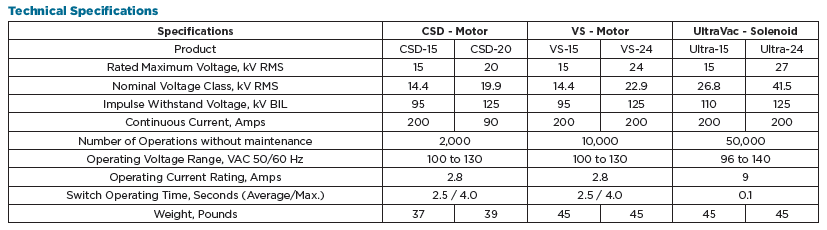

| Technical Specifications | ||||||
| Specifications | CSD - Motor | VS - Motor | UltraVac - Solenoid | |||
| Product | CSD-15 | CSD-20 | VS-15 | VS-24 | Ultra-15 | Ultra-24 |
| Rated Maximum Voltage, kV RMS | 15 | 20 | 15 | 24 | 15 | 27 |
| Nominal Voltage Class, kV RMS | 14.4 | 19.9 | 14.4 | 22.9 | 26.8 | 41.5 |
| Impulse Withstand Voltage, kV BIL | 95 | 125 | 95 | 125 | 110 | 125 |
| Continuous Current, Amps | 200 | 90 | 200 | 200 | 200 | 200 |
| Number of Operations without maintenance | 2,000 | 10,000 | 50,000 | |||
| Operating Voltage Range, VAC 50/60 Hz | 100 to 130 | 100 to 130 | 96 to 140 | |||
| Operating Current Rating, Amps | 2.8 | 2.8 | 9 | |||
| Switch Operating Time, Seconds (Average/Max.) | 2.5 / 4.0 | 2.5 / 4.0 | 0.1 | |||
| Weight, Pounds | 37 | 39 | 45 | 45 | 45 | 45 |
