SAT-0.72 Current Transformer

discuss personally

Model

Basic info Product Detail Supplier

Basic info

Brand	Wone Store
Model NO.	SAT-0.72 Current Transformer
Rated frequency	50/60Hz
Rated current ratio	100/5
Series	SAT

Product Detail

Product Overview

The SAT-0.72 Current Transformer is a precision instrument designed for low-voltage electrical systems with an operating voltage of up to 0.72kV. It plays a crucial role in accurately measuring and monitoring electrical currents, making it an essential component in various applications such as power distribution, industrial control, and energy management systems.

Technical Data

Rated insulation level:0.72/3 kV
Rated frequency: 50/60Hz
Installation site: Indoor
Technical standard: IEC 61869-1:2007, IEC 61869-2:2012,

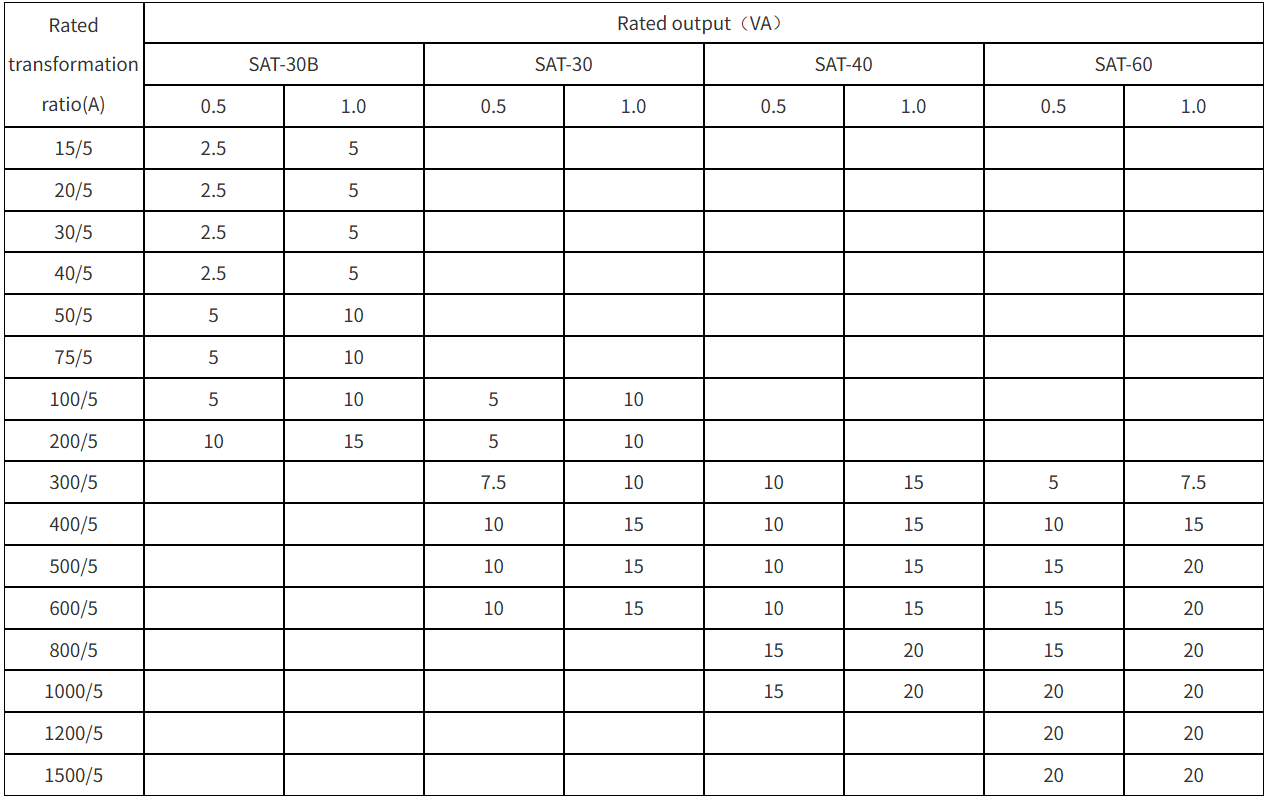

Main technical parameters

Note：Upon request we are glad to offer transformers according to other technical specs.

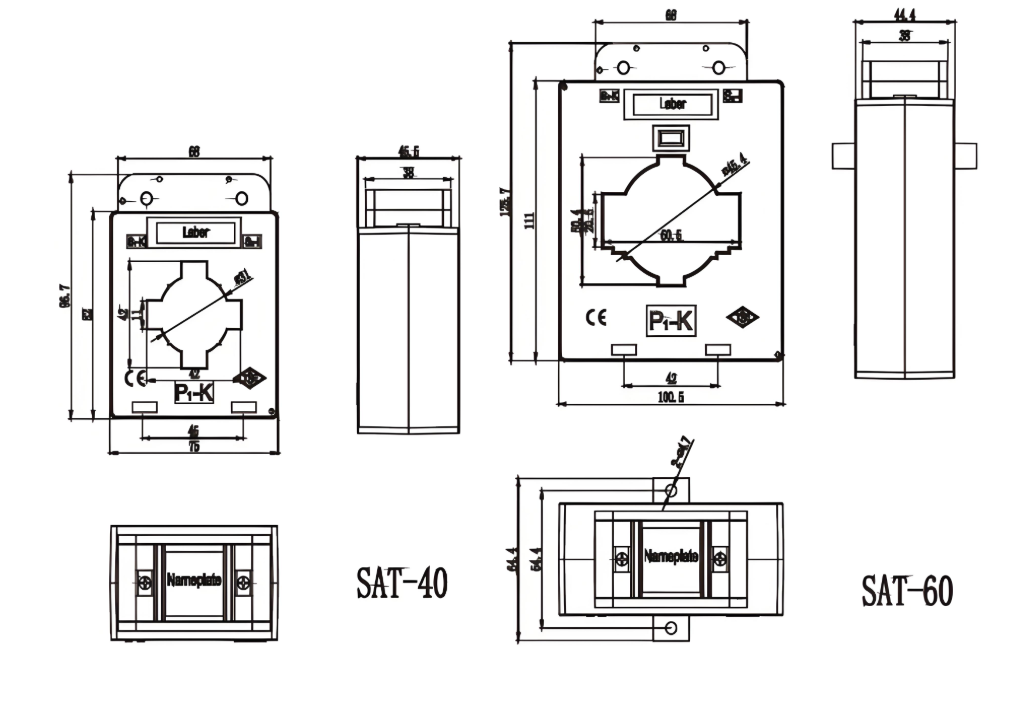

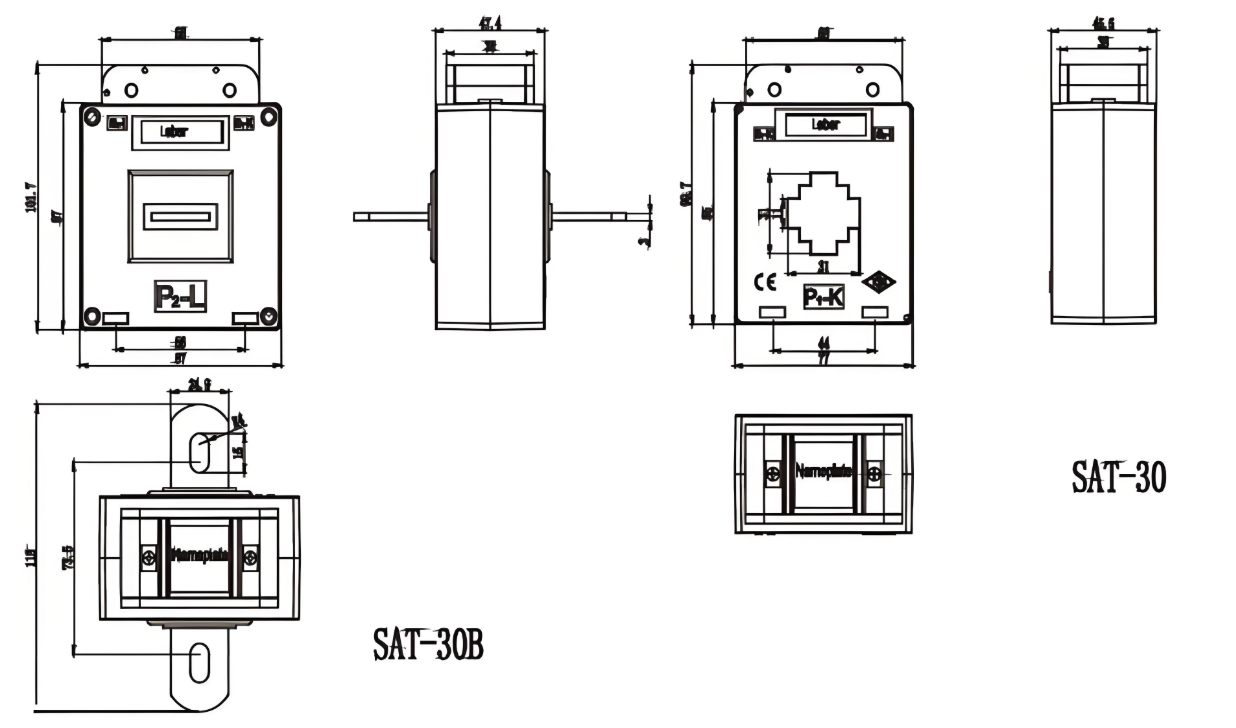

Outline Drawing
