RNVD-12 SF6 gas filling cabinet electric spring operating mechanism circuit breaker mechanism

Add us on Google
  • RNVD-12 SF6 gas filling cabinet electric spring operating mechanism circuit breaker mechanism

Key attributes

Brand Xinyouxiang
Model NO. RNVD-12 SF6 gas filling cabinet electric spring operating mechanism circuit breaker mechanism
Rated voltage 12kV
Series RNVD
Description

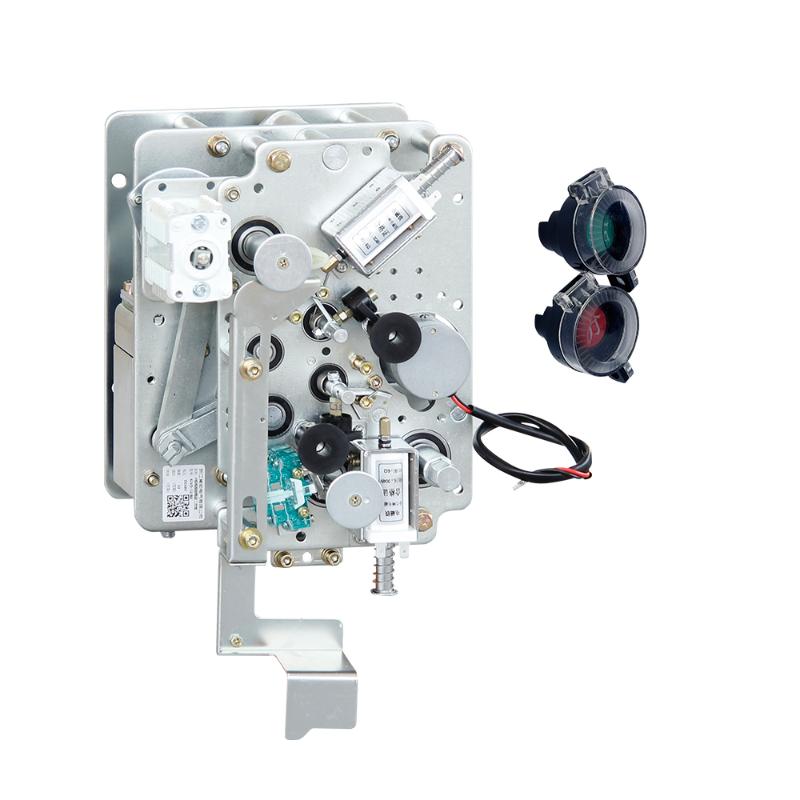

The RNVD-12 SF6 circuit breaker operating mechanism is a supporting equipment suitable for the opening and closing operations of circuit breakers in inflatable high-voltage ring main units. This series of circuit breaker mechanisms uses tension spring midpoint control to close the circuit breaker, and compression spring energy storage control to open the circuit breaker. This product has a reclosing function and an interlocking function when used in combination with an isolation mechanism,. High reliability, with a mechanical lifespan of over 10000 cycles.
Split type button refers to the button body installed on the mechanism button column, with a dust-proof and error proof cover on the button operating part, installed on the cabinet panel to meet the functional requirements of dust-proof and error proof.
This series of products will be shipped after passing the full inspection and meet the common technical requirements of GB1984-2014 High Voltage Switchgear and Control Equipment Standards and GB/T 11022-2020 Common Technical Requirements of High Voltage AC Equipment and Control Equipment Standards

Instructions for use and operation

Energy storage operation:
Install and fix the mechanism cabinet, insert the mechanism specific handle into the operating shaft located at the lower right of the mechanism, and rotate the handle clockwise until a "click" sound is heard (at this time, the energy storage indicator shaft will slightly push the energy storage to the fully closed state) to store the energy in place. When operated electrically, the mechanism will automatically run energy storage after being powered on. Once the energy storage is in place, the motor circuit will be disconnected, the energy storage will remain, and wait for the energy release to close (the secondary circuit must be ensured to be accurate and error free during electric operation).
Closing operation:
Press the green button to instantly release the closing energy storage, and the mechanism will push the circuit breaker switch to complete the main circuit closing. During electric operation, the closing electromagnetic coil is powered on, and the energy storage is instantly released by the closing electromagnet. The mechanism pushes the circuit breaker switch to complete the main circuit closing, and at the same time, the opening spring is stored with energy (energy can continue to be stored at this time, but it cannot be closed again under the anti misoperation interlock)
Opening operation:
Press the red button to instantly release the disconnection energy storage, and the mechanism will push the circuit breaker switch to complete the main circuit disconnection. During electric operation, power is applied to the opening electromagnetic coil, and the energy storage is released instantly by the opening electromagnet. The mechanism pushes the circuit breaker switch to complete the main circuit opening.

RNVD-12 SF6 gas filling cabinet electric spring operating mechanism circuit breaker mechanism

Installation dimensions

RNVD-12 SF6 gas filling cabinet electric spring operating mechanism circuit breaker mechanism

Frequently asked questions

It is a core electric drive component designed for circuit breakers of 12KV gas-insulated cabinets (including SF6 gas cabinets). Its core function is to drive the circuit breaker to realize fast opening and closing actions, which can not only connect and cut off normal load current, but also reliably cut off short-circuit fault current, realizing line fault protection and isolation. Relying on motor energy storage and electric drive mode, it adapts to the sealed and compact installation environment of gas cabinets, has remote control, status feedback and fault alarm functions, and is a key equipment for fault protection and intelligent control in 12KV medium-voltage distribution networks.
The core advantages focus on four dimensions: reliability, safety, intelligence and adaptability, meeting the high-standard requirements of medium-voltage distribution networks: ① Reliable action: Adopt motor energy storage + spring operating structure, fast opening/closing speed (opening ≤60ms, closing ≤80ms), mechanical life ≥10000 times, ensuring fast current cutting in case of faults; ② Safety protection: Integrate mechanical and electrical interlock, over-torque protection, limit protection and anti-misoperation functions, eliminating hidden dangers such as live opening/closing and overstep tripping, ensuring the safety of personnel and equipment; ③ Intelligent adaptation: Support remote control, opening/closing status feedback, energy storage status monitoring and fault recording, can be linked with distribution network automation systems, adapting to unattended scenarios; ④ Environmental tolerance: Protection level ≥IP54, with strong anti-corrosion, moisture-proof and dust-proof performance, adapting to harsh environments such as coastal salt spray, high humidity and high pollution; ⑤ Compact structure: Adapt to the narrow installation space of gas cabinets, high transmission efficiency, precise matching with circuit breakers, and convenient installation.
