| Brand | HK Electrical |
| Model NO. | Purity Humidity Test Decomposition Product Tester Sf6 Gas Comprehensive Tester |
| Rated voltage | 220V |
| Series | SF6 |
Description

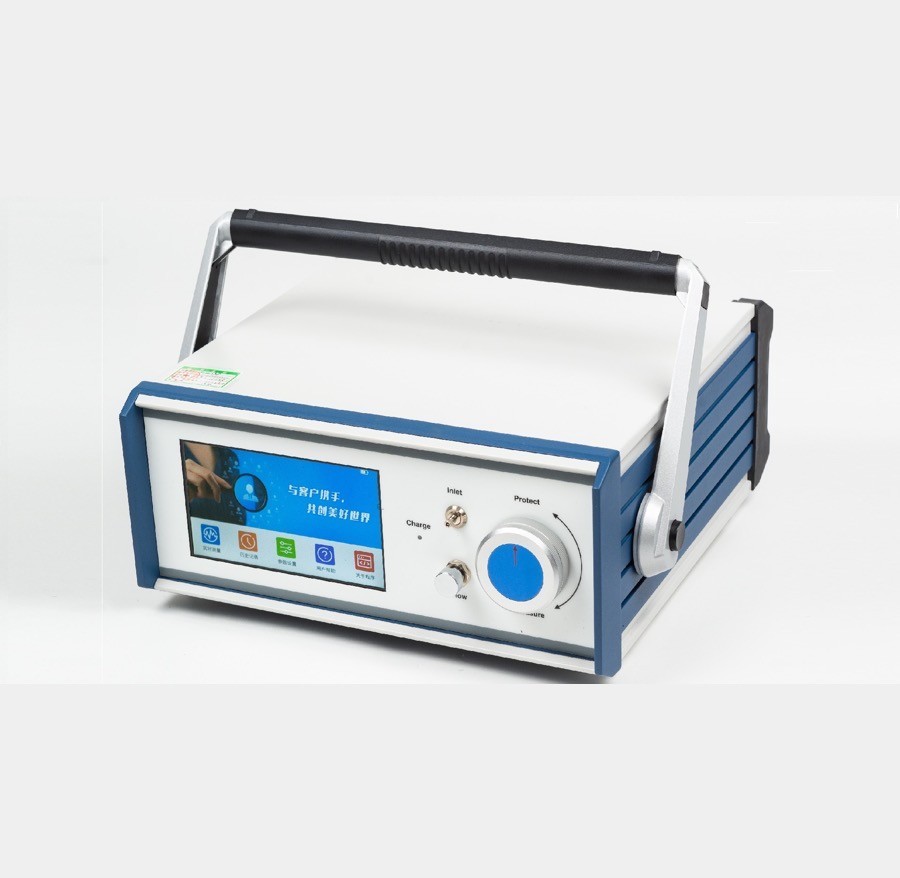

The SF6 gas comprehensive tester integrates the SF6 dew point meter, the SF6 purity meter, and the SF6 decomposition product meter. One on-site measurement can complete the detection of three indicators, which greatly saves the gas in the equipment. One measurement saves 2/3 of the gas consumption, while reducing the user's workload and improving work efficiency.
Specifications
| SF6 humidity： | Measurement range: dew point -80～+20℃ (support ppmv, etc.) |
| Dew point accuracy: ±2°C (when the dew point temperature is lower than 0°C, the sensor output is frost point)） | |
| Resolution:：Dew point 0.1°C or 0.1ppm | |
| Repeatability: ±0.5℃ | |
| Gas flow: SF6 adjusted at 0.5 ~ 0.9L/min | |
| Probe protection: stainless steel sintered filter | |
| SF6 purity： | Measuring range: 90～100% SF6 |
| Accuracy and repeatability: ±0.5%, independent of flow | |
| Response time: 90%, 30s | |
| Sensor: Gen I sensor | |
| SF6 decomposition products: | H2S: 0～200ppm (standard) |
| SO2: 0～100ppm (standard) | |
| HF： | |
| Sensitivity: ±0.1ppm | |
| Display mode： | LCD display |
| Display mode： | 220VAC±10%, 50Hz, AC and DC dual-use, overcharge protection, continuous work not less than 5 hours |
| Working pressure： | 0～1.0MPa |
| Sample gas flow rate:： | no effect |
| Output interface: | USB1.1 specification |
| Operating environment:： | Temperature: -30～+60℃ |
| Size:： | 132mm*283mm*308mm |
| Weight: | about 3kg |
