Oil Distribution Transformer up to 3150 kVA

Name: Oil Distribution Transformer up to 3150 kVA
Brand: Chengdu Fabo Automated Turnkey Equipment Co., Ltd.
SKU: 1226
Price: 1.99 USD
Availability: InStock

Chengdu Fabo Automated Turnkey Equipment Co., Ltd.

11yrs + staff 20000+m² US$400000000+ China

Attributes Description Documentation Resource Library Supplier

Key attributes

Brand	Schneider
Model NO.	Oil Distribution Transformer up to 3150 kVA
Rated voltage	12/17.5kV
Series	Minera Set Series

Description

Overview

Mineral oil-immersed, 50 Hz, three-phase distribution transformers with the following characteristics:

Hermetically sealed with integral filling
Cover bolted to the tank
ONAN
Minerai oil in accordance with IEC 60296
lndoor / outdoor use (depending on selected fittings and options)
Anti-corrosion surface treatment: corrosivity category class C3, 'Medium' durability (according to ISO 12944-2)
Final colour RAL 7033

Standards
These transformers comply with standards:

EN 50588-1 (supersedes EN 50464-1:2007, EN 50708-1, EN 50541-1:2011)
EN 60076-1
Ecodesign regulation EU 548-2014 and its amendment EU 2019/1783

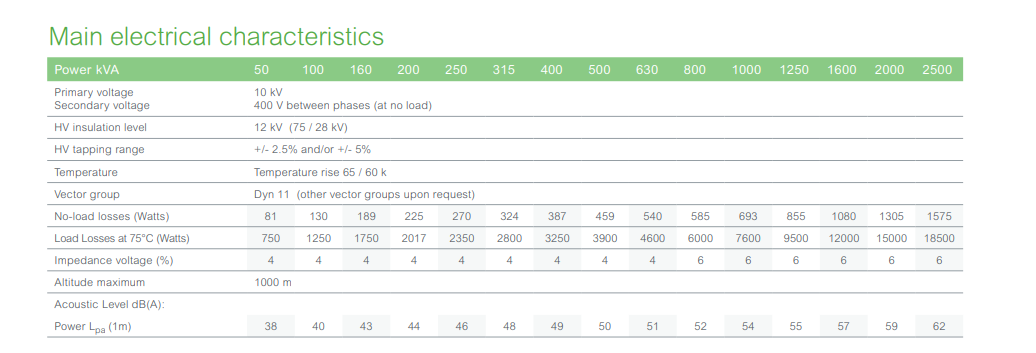

Characteristics
12 kV, 400 V

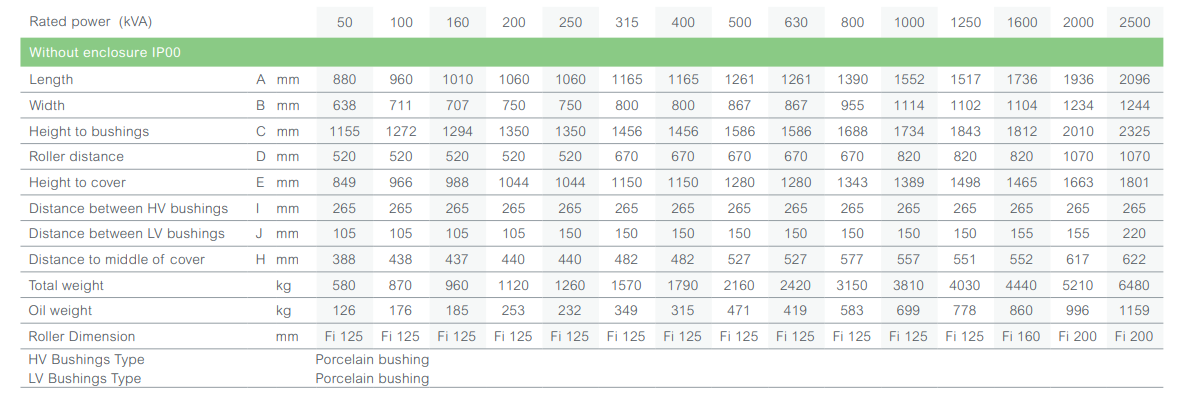

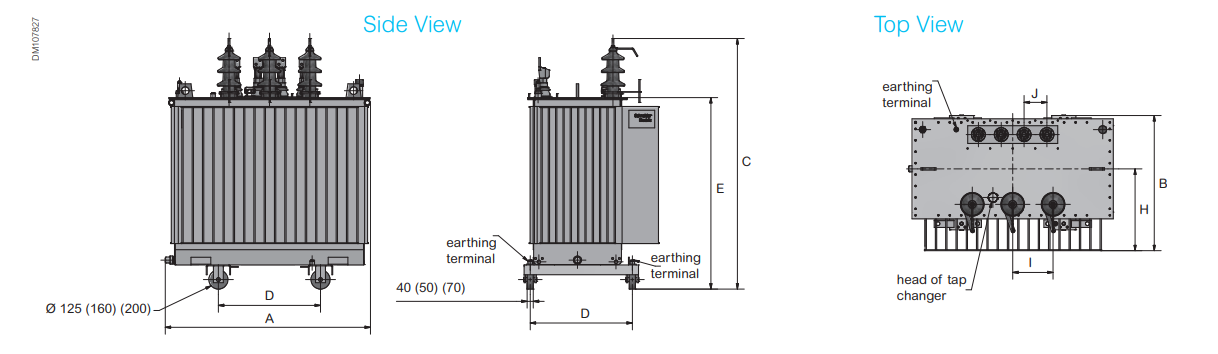

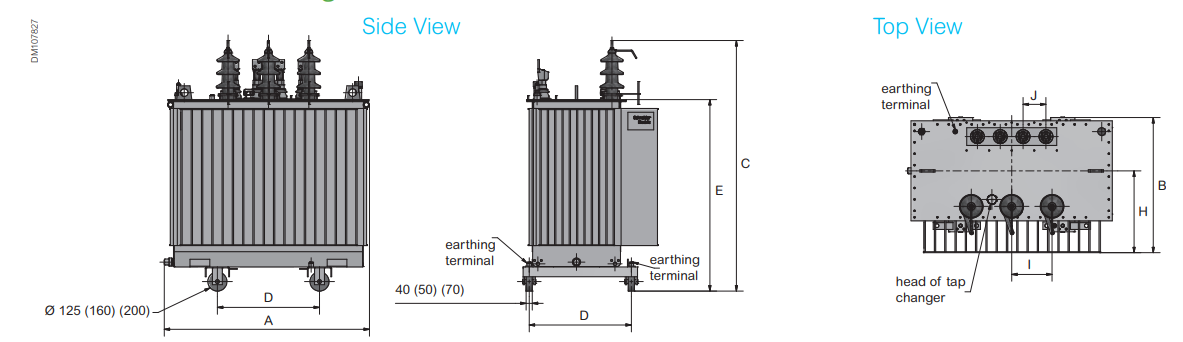

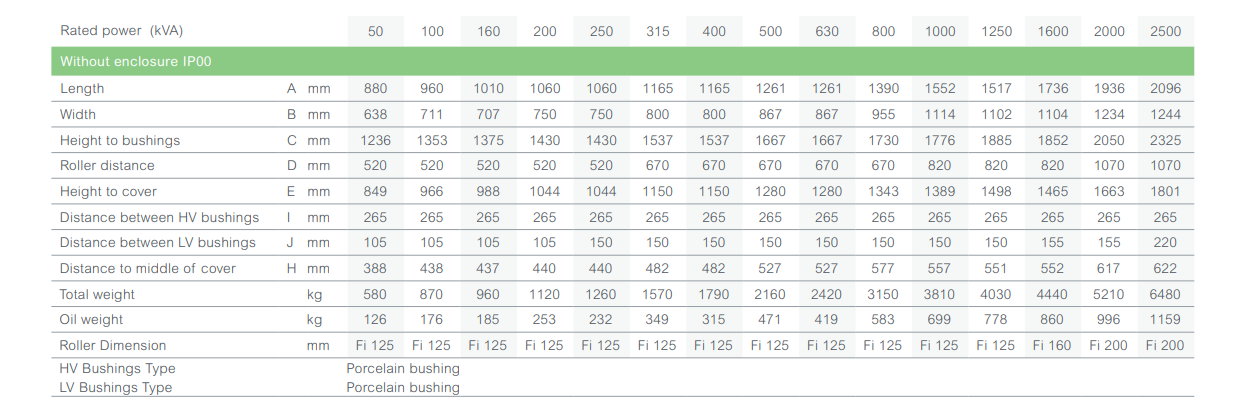

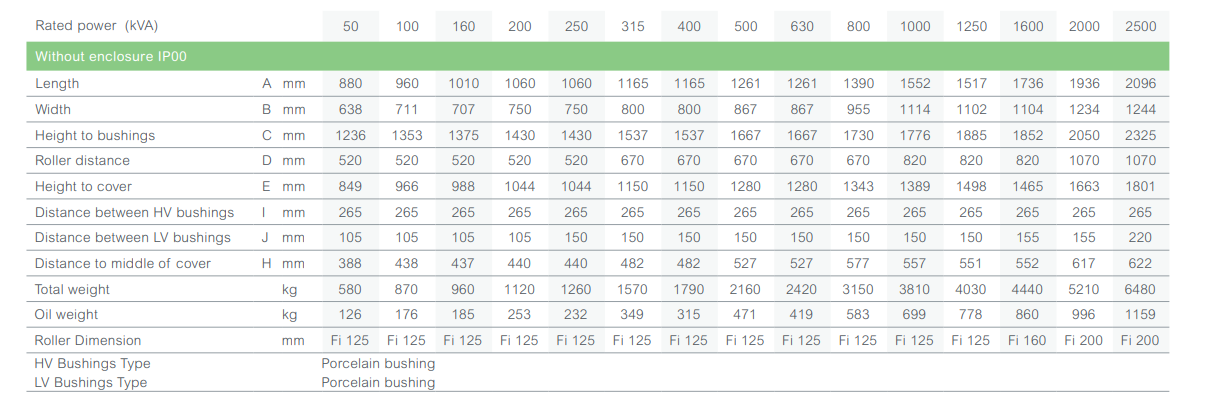

Dimensions and weights

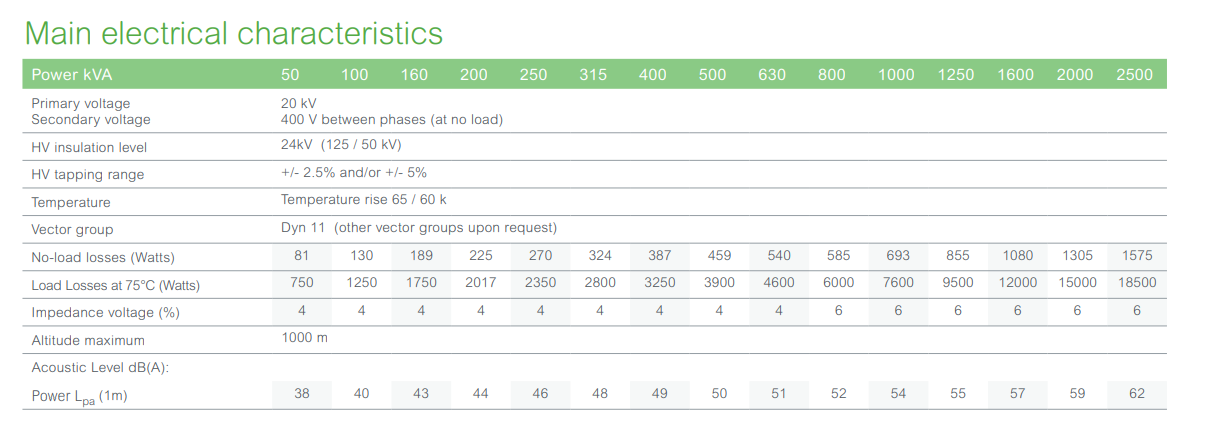

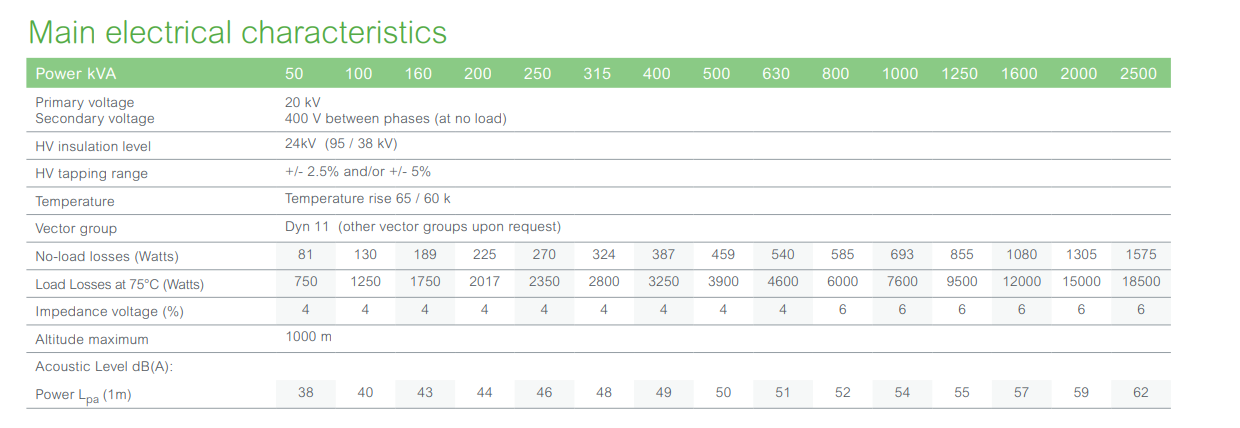

Characteristics
17.5 kV, 400v

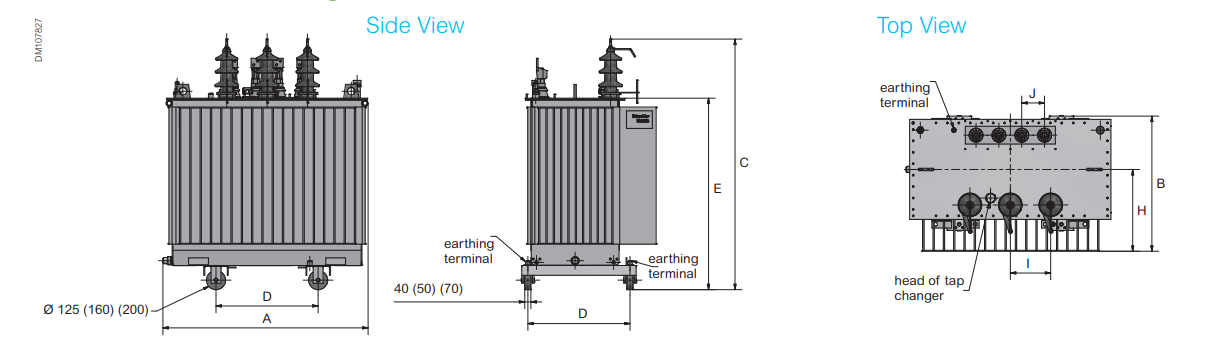

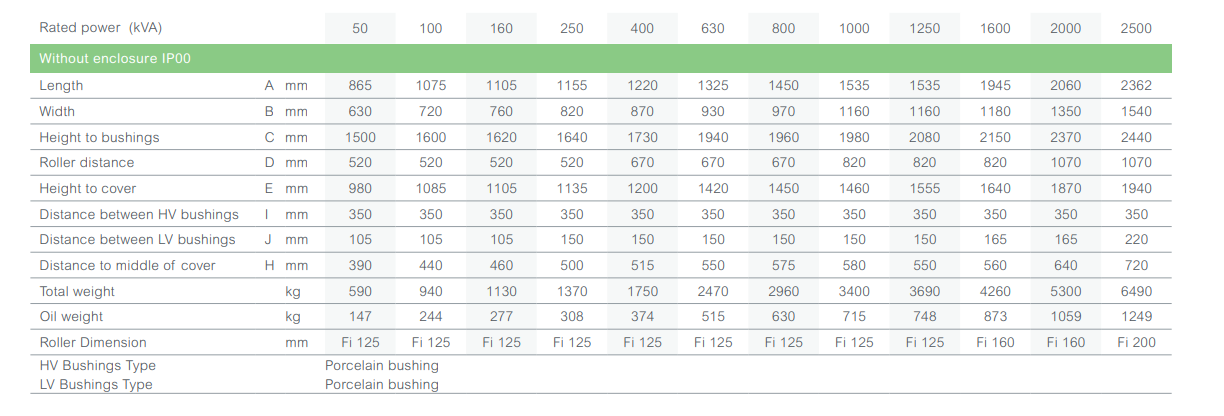

Dimensions and weights

Characteristics
24 kV, 400v

Dimensions and weights

Characteristics
36 kV, 400v

Dimensions and weights
