NT3 in line fuse link RT16-3 Hrc Ceramic Knife Blade Fuse Link

discuss personally

Model

Basic info Product Detail Supplier

Basic info

Brand	Switchgear parts
Model NO.	NT3 in line fuse link RT16-3 Hrc Ceramic Knife Blade Fuse Link
Rated voltage	AC690V
Rated normal current	315-630A
Series	RT16-3 NT3

Product Detail

Environment

1) Temperature range: -5 ℃~+40 ℃

2) Working humidity range: ≤ 50% (at 40 ℃), ≤ 90% (at 20 ℃).

3) Altitude: ≤ 2000m.

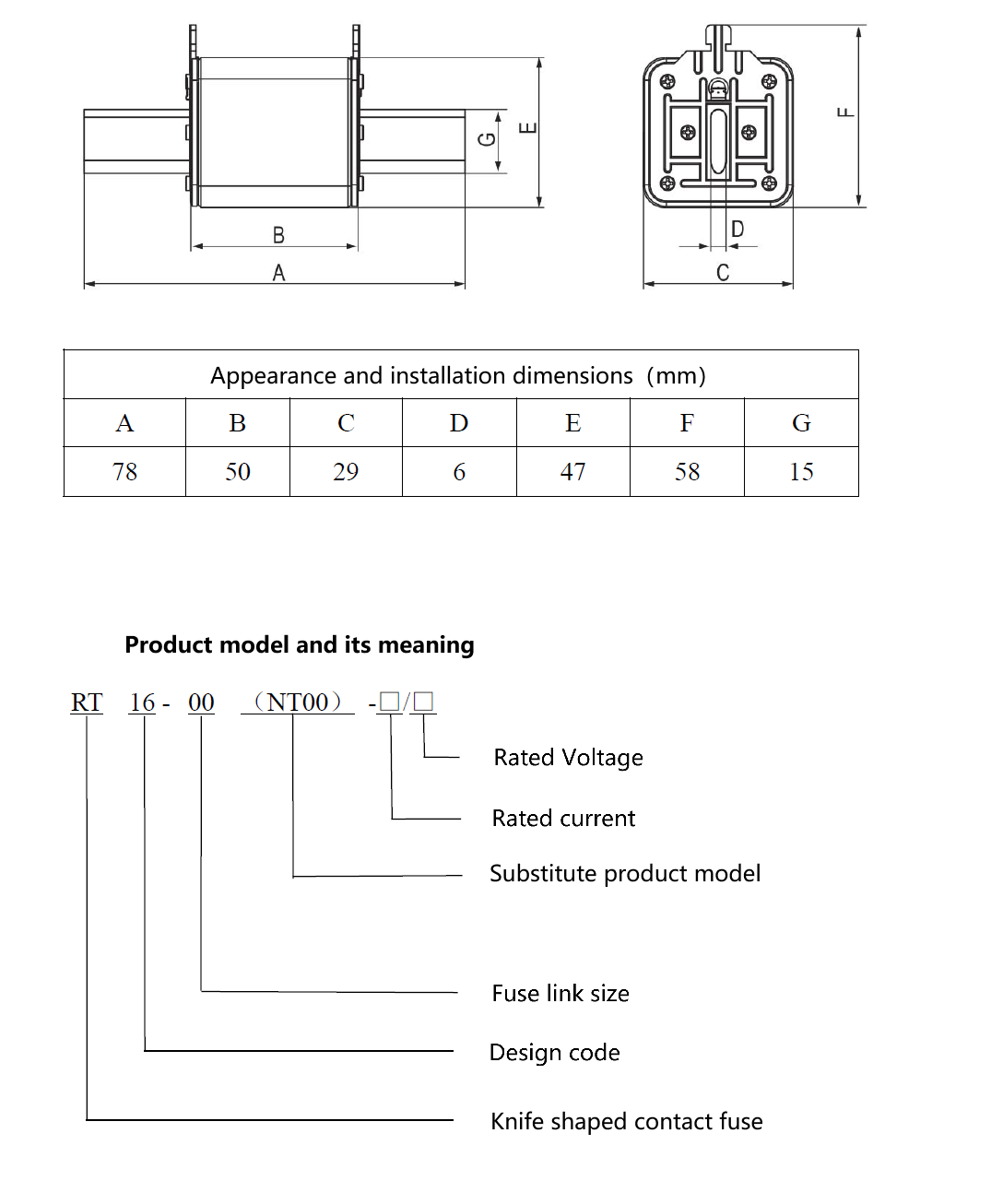

Install

The knife shaped contact fuse needs to be installed with a matching base.

Storage

When storing fuse links, they should be protected from erosion by rain and snow, and stored in a well ventilated warehouse with a relative humidity (at 25 ℃) not exceeding 90%, a temperature not exceeding 40 ℃, and not lower than -30 ℃.

Maintenance

1) Regularly clean the dust and check the contact condition of the contact points.

2) During maintenance and inspection, the power supply must be cut off according to safety regulations, and it is not allowed to remove the fuse when it is live.

Model selection	Rated voltage V	Size	Rated current (melt) A	Scope of segmentation and category of use	Rated breaking capacity
RT16-3(NT3)-315A/500V	AC500V	3	315	gG	120
RT16-3(NT3)-400A/500V	AC500V	3	400	gG	120
RT16-3(NT3)-500A/500V	AC500V	3	500	gG	120
RT16-3(NT3)-630A/500V	AC500V	3	630	gG	120
RT16-3(NT3)-315A/690V	AC690V	3	315	gG	50
RT16-3(NT3)-400A/690V	AC690V	3	400	gG	50
RT16-3(NT3)-500A/690V	AC690V	3	500	gG	50
RT16-3(NT3)-630A/690V	AC690V	3	630	gG	50
