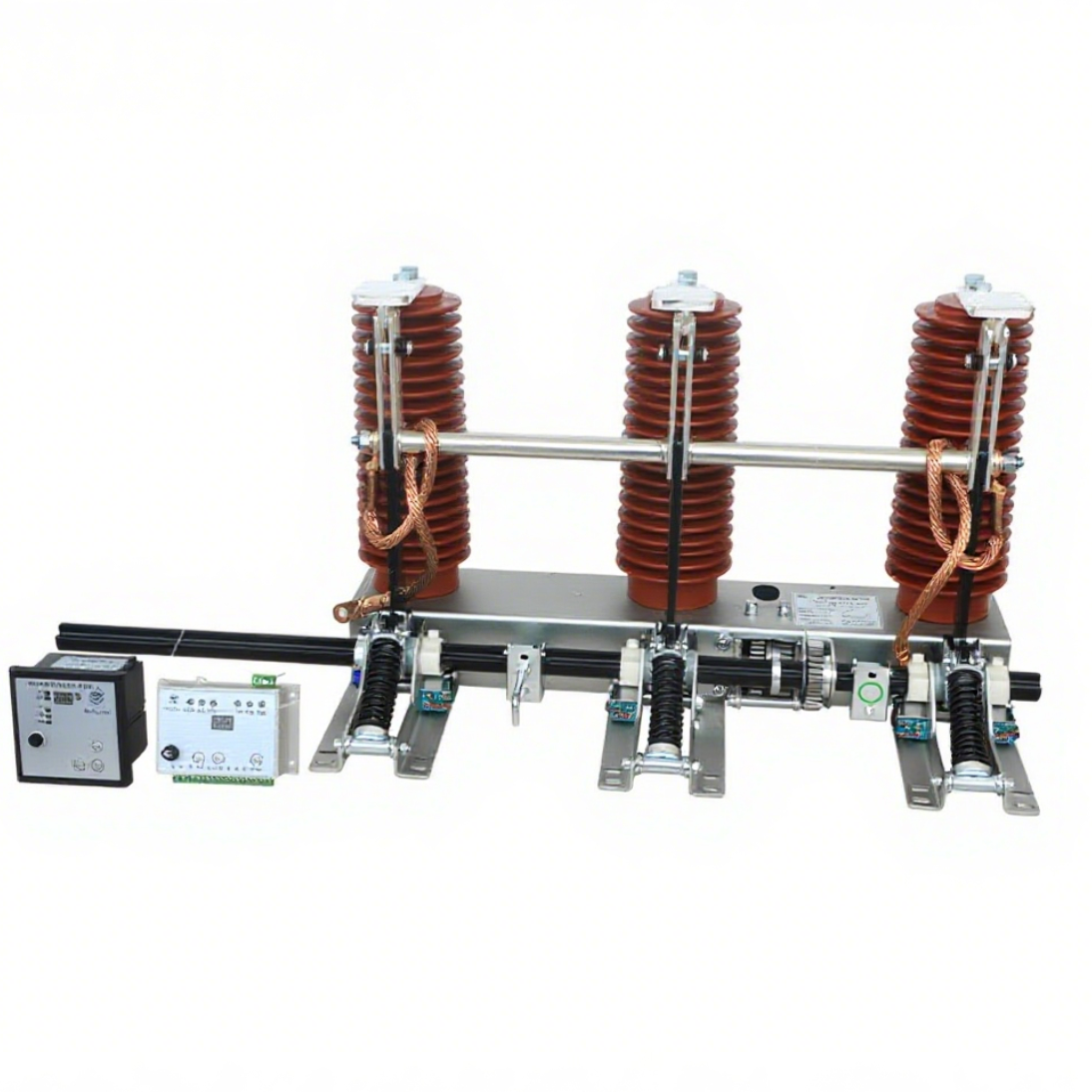

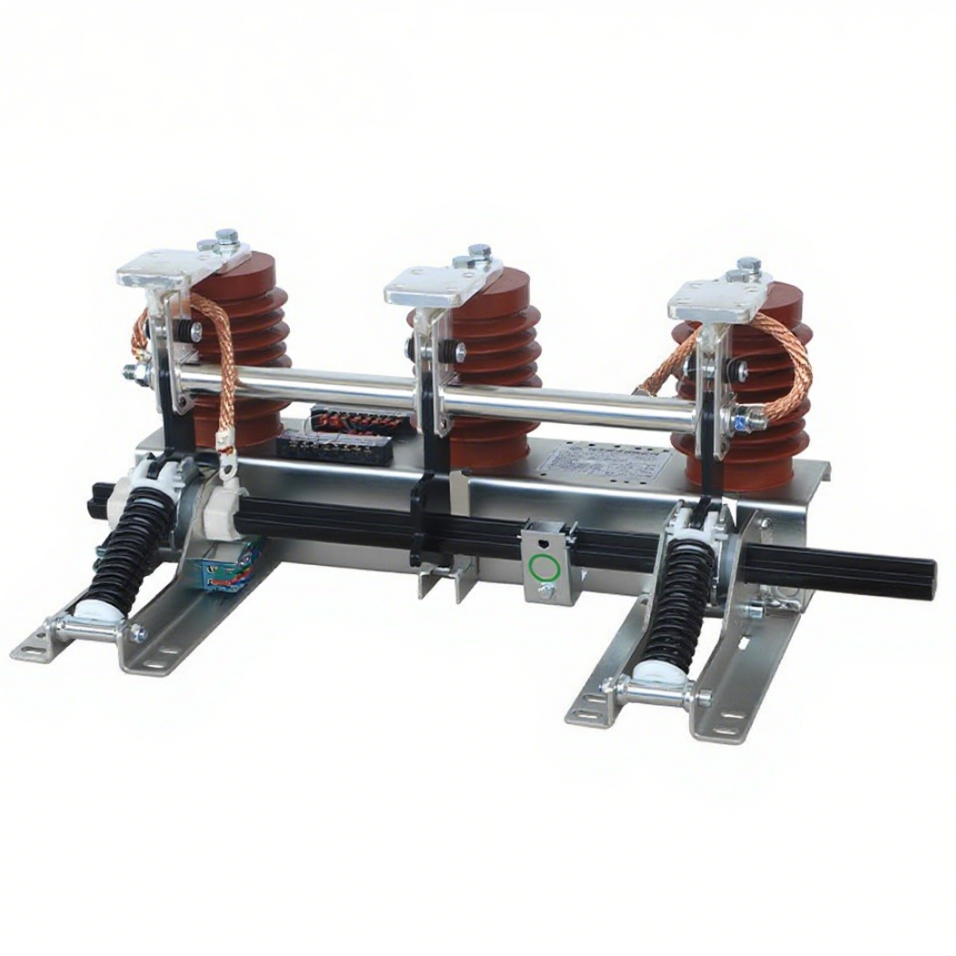

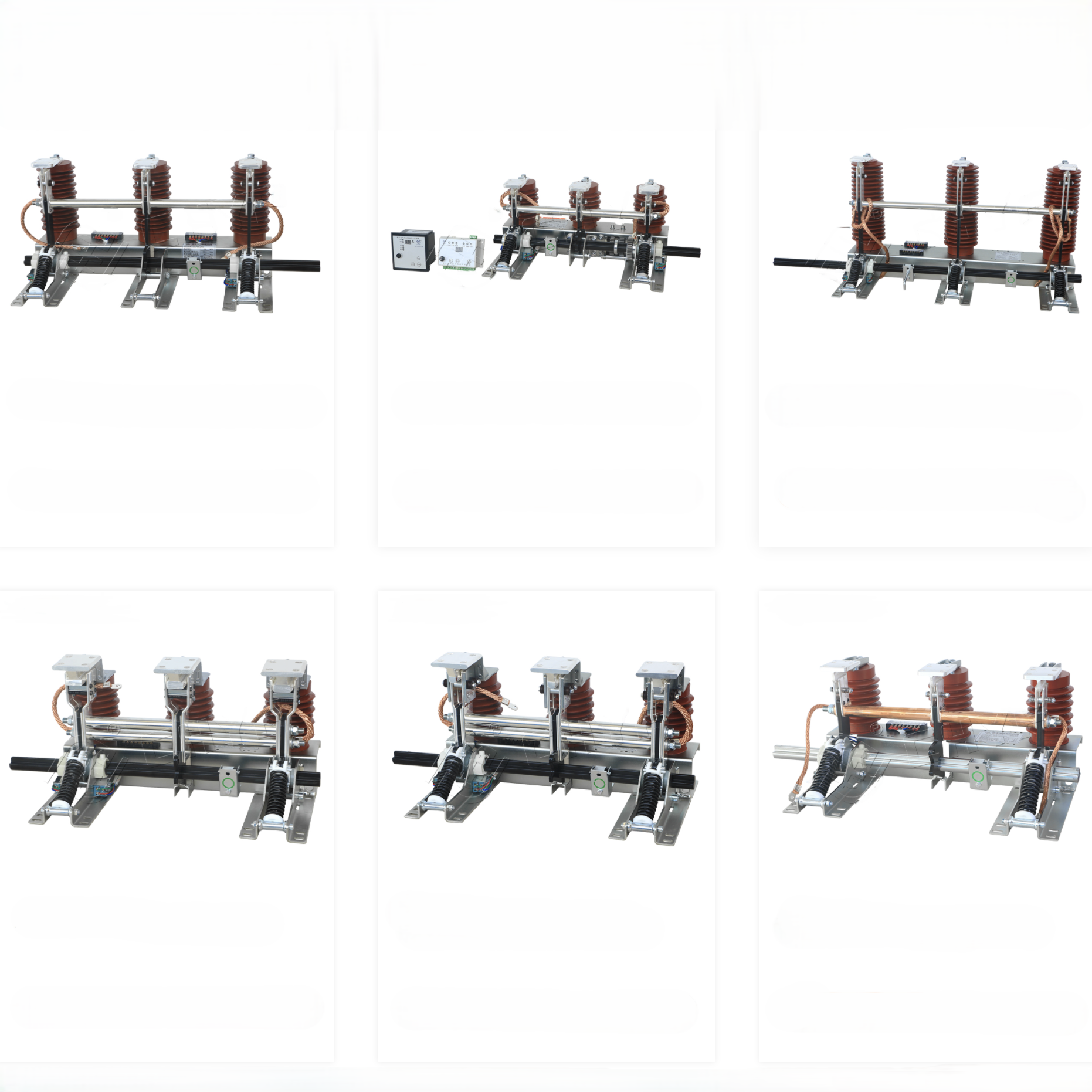

JN15-12 Indoor AC Isolation

discuss personally

Model

JN22B-40.5/31.5

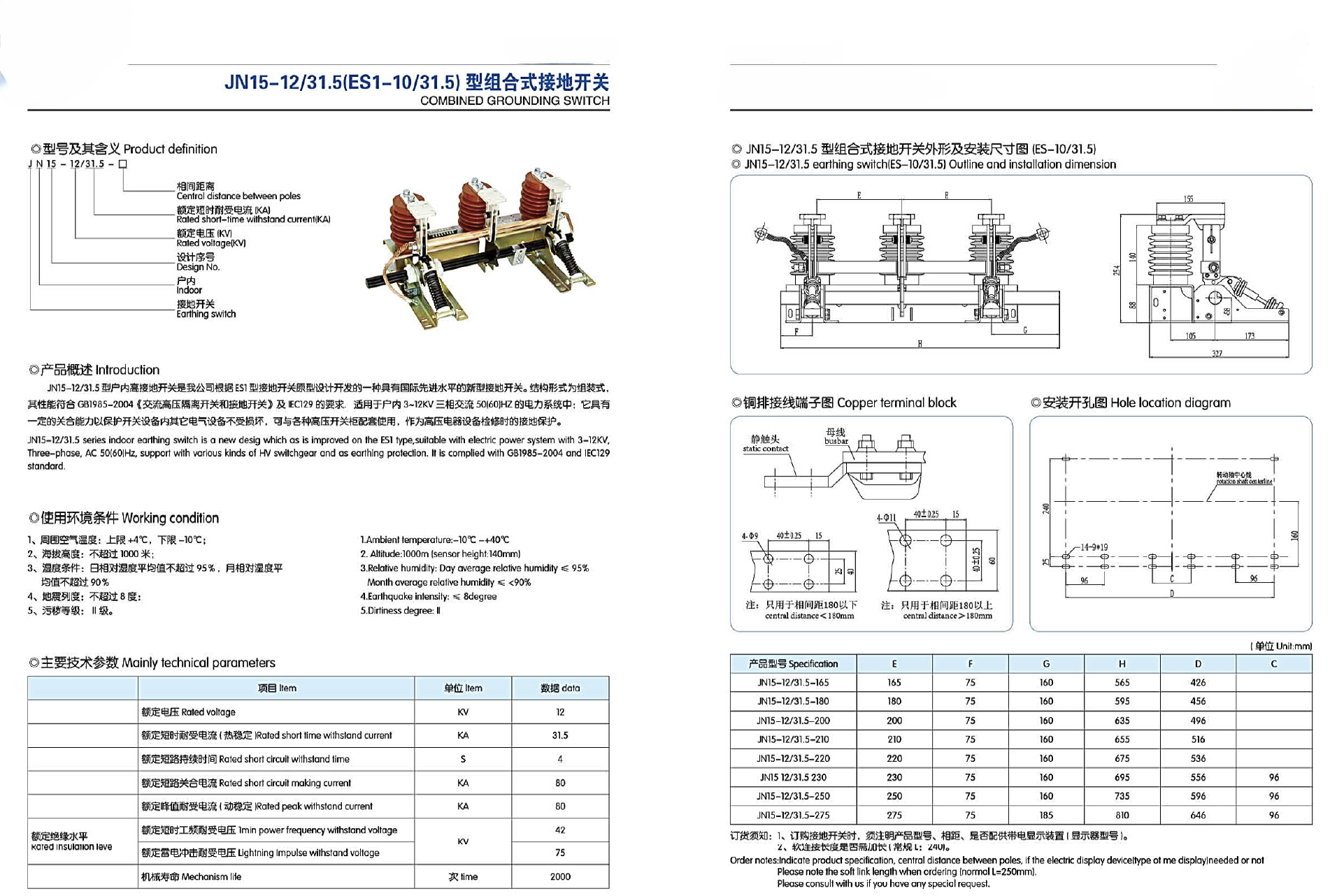

JN15-12/31.5(ES1-10/31.5)

Basic info Product Detail Supplier

Basic info

Brand	Switchgear parts
Model NO.	JN15-12 Indoor AC Isolation
Rated voltage	40.5kV
Rated short-time withstand current	40kA
Series	JN15

Product Detail

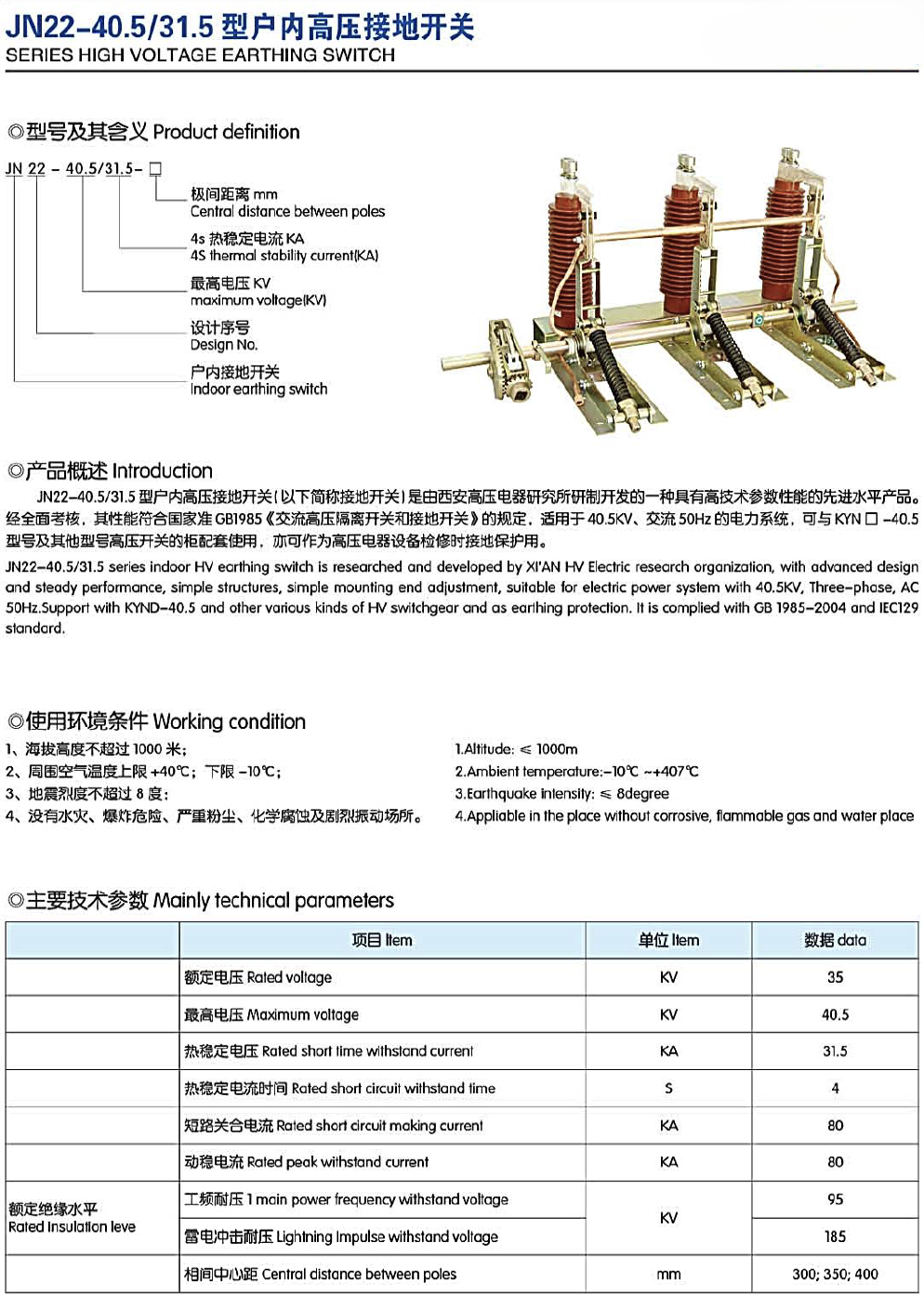

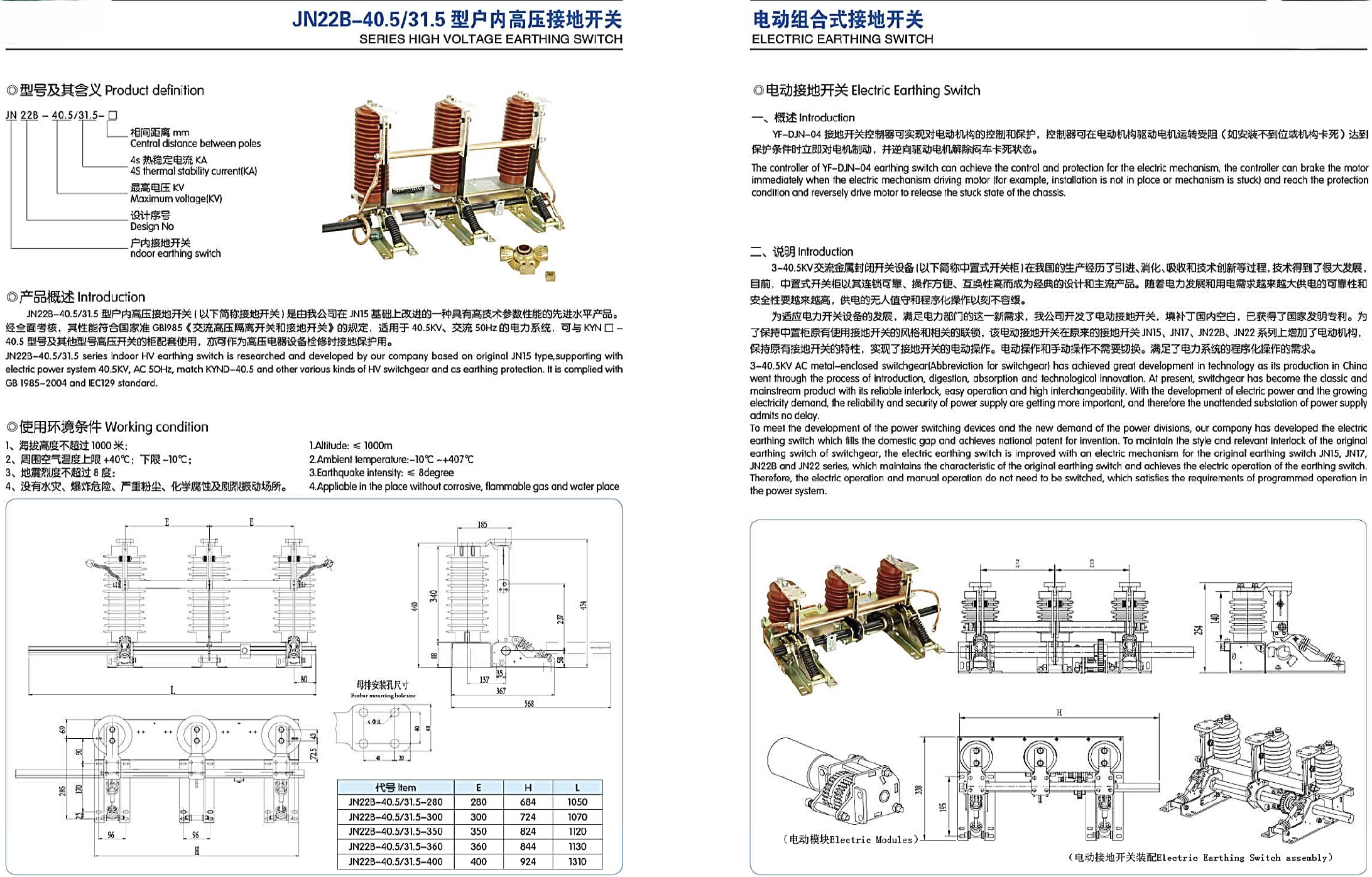

Environmental conditions of JN15-12 Indoor AC IsolationSwitches High Voltage Earthing Switch With Sensor
1. Applicable to the following environmental conditions.
a.Altitude not more than 1ooOm above sea level.
b. Ambient temperature not higher than +40C and not lower than -10°C.
c.Relative humidity not greater than 95% on a daily average and not greater than 90% on a monthly average.
d. The seismic intensity does not exceed 8 degrees.
2. Not suitable for use in the following locations
a. Installation sites where there are gases, vapours, chemical precipitates, smoke, dust and dirt that seriously affectthe insulation and conductivity of the earthing switch, as well as its explosive erosive substances.
b. The installation site is subject to frequent and severe vibrations.
