JDZXW18-12 Voltage Transformer
Zhejiang Wone IT Service Co., Ltd.
1yrs +
staff 1000+m² US$300000000+
Key attributes
| Brand | Wone Store |
| Model NO. | JDZXW18-12 Voltage Transformer |
| Rated frequency | 50/60Hz |
| Primary voltage | 10kV |
| Secondary voltage | 100/√3V |
| Series | JDZXW |
Product descriptions from the supplier
Description
Product Overview
JDZXW18-12 voltage transformer, single-phase epoxy outdoor grey resin casting and fully enclosed construction, is used for measuring current, electric energy and protective relaying in the electric system with the frequency 50Hz or 60Hz and highest voltage for equipment 12kV.
Technical Data
Installation site ： Outdoor
Rated Frequency：50/60Hz
Overvoltage factor1,9 Vn 8h
Max short circuit secondary current ：3A
Max temperatura for termal continuous capacity 400VA
Therma continuous capacity：400VA
Secondary winding resistance：1.6Ω
Technical standard accords with IEC 61869-1:2007, IEC 61869-3:2011

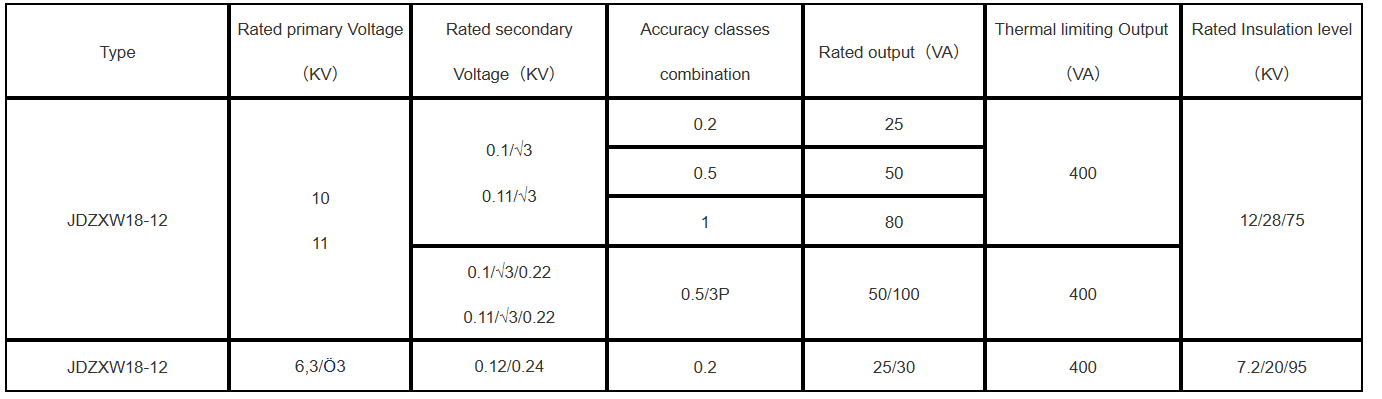

Specification
Note：Upon request we are glad to offer transformers according to other technical specs.

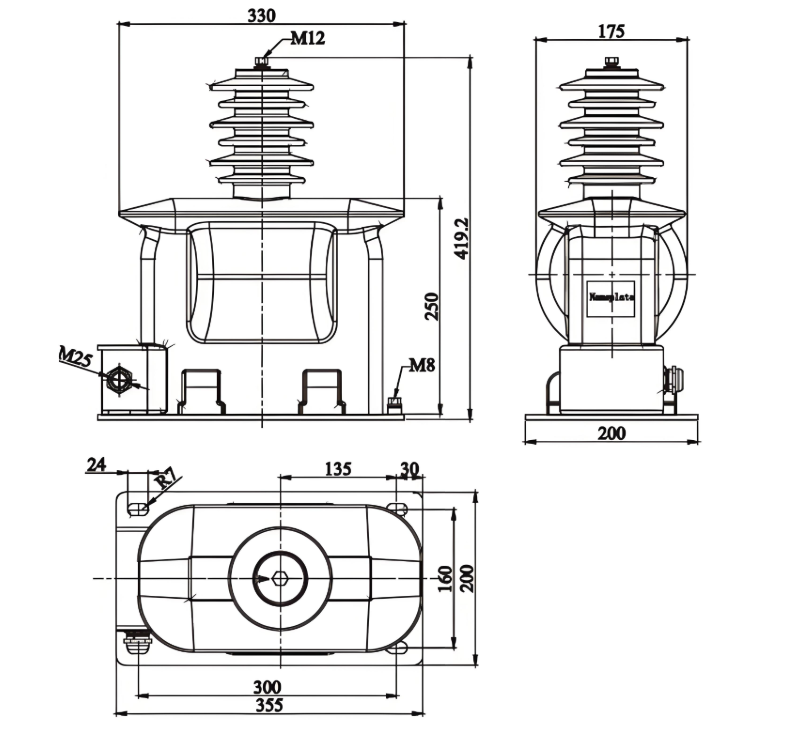

Outline Drawing
