JDZX10-36 Voltage Transformer
discuss personally
Model
JDZX10-36
Basic info Product Detail Supplier
Basic info
Brand Wone Store
Model NO. JDZX10-36 Voltage Transformer
Rated frequency 50/60Hz
Primary voltage 35/√3kV
Secondary voltage 110/√3V
Series JDZX
Product Detail

Product Overview

JDZX10-36 voltage transformer, epoxy resin casting and single pole insulated VT, is widely used indoor for measuring current, electric energy and protective relaying in the isolated neutral system with the frequency 50-60Hz and highest voltage for equipment 36 kV.

Feature：

  • High-Precision Voltage Transformation: Uses high-permeability premium silicon steel for the core and meticulously wound coils to accurately convert 36kV high voltage. With a metering accuracy of up to class 0.2, it delivers extremely precise low-voltage signals for energy metering and power system monitoring, meeting high-precision voltage data requirements and providing reliable data support for stable power system operation.

  • Adaptation to Harsh Indoor Environments: Specifically designed for indoor use with a fully enclosed structure. Internal windings and core are tightly encapsulated via epoxy resin vacuum casting, effectively resisting interference from dust, moisture, etc. It operates stably in indoor environments with temperatures ranging from -5℃ to 40℃ and relative humidity up to 90%, making it ideal for enclosed spaces like indoor substations and switch cabinets.

  • Excellent Insulation Performance: Features a robust insulation layer formed by epoxy resin casting, boasting high insulation strength to withstand 36kV rated voltage and potential operational overvoltage impacts. Its partial discharge level is extremely low (typically ≤10pC), significantly reducing the risk of insulation aging and faults caused by partial discharge, extending service life and ensuring safe, stable power system operation.

  • Compact and Lightweight Design: With an overall compact structure, it is significantly smaller in volume and lighter in weight compared to traditional similar products. This design not only saves valuable indoor installation space but also reduces labor costs and difficulties during installation, allowing flexible and convenient installation in indoor power facilities with limited space.

  • Easy Installation and Maintenance: Complies with standardized installation dimensions, supporting multiple mounting methods such as horizontal and vertical installation. The mounting holes are reasonably positioned for easy connection and fixation with mounting brackets or cabinets. It offers flexible outlet methods, easily achievable via direct outlet or cable connection. Moreover, daily maintenance requires no complex debugging procedures, effectively reducing maintenance time and costs and improving the operational efficiency of power systems.

Technical parameter

  • Rated primary voltage：33/kV or 34.5/kV or 35/√3kV etc.

  • Rated secondary voltage：100/√3V、110/√3V 、 115/√3V、 120/√3V

  • Rated voltage of residual voltage windings：100/ 3V 、110/ 3V、 115/ 3V、 120/ 3V

  • Burden power factor: cosΦ=0.8(lagging)

  • Standards: IEC60044-2.2003  Instrument transformers-Part2: Inductive Voltage transformers

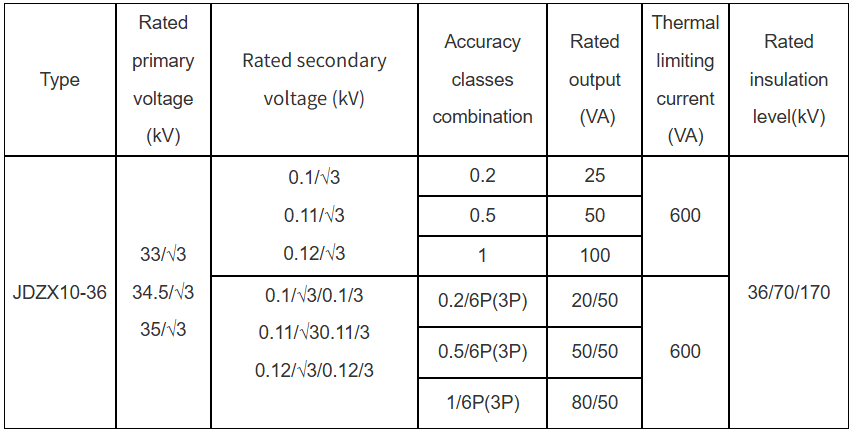

Other technical parameters pls see as follow:

Remarks: Upon request we are glad to offer transformers according to other standards or with non-standard technical specs.

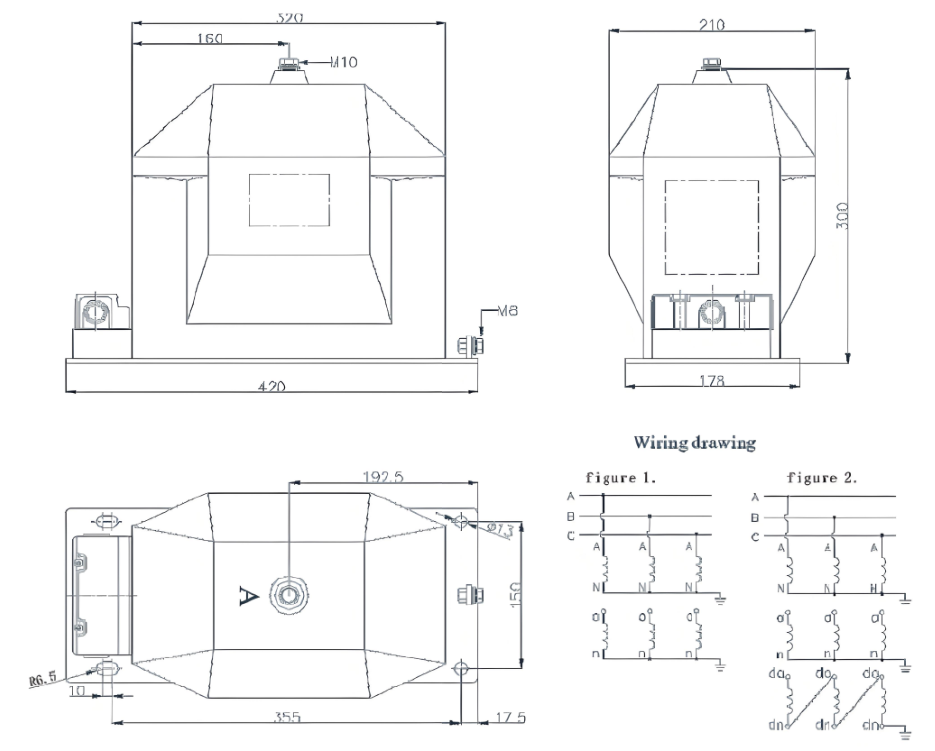

Outline drawing
