| Model NO. | IPXX Series Ingress Protection professional testing tool |
| Nominal diamete | 1mm |
| Series | IPXX Series |
Overview
The "IP probe" is a professional testing tool used to verify the degree of protection of the enclosure of electrical equipment (IP rating), mainly detecting the equipment's ability to resist the intrusion of solid foreign objects. According to the first digit in the IP rating (such as IP1X to IP4X), the corresponding probe specifications and testing requirements are different:
Core functions and classifications
IP1X test probe (test tool A):
A rigid sphere with a diameter of 50mm, used to simulate the intrusion test of solid foreign objects with a diameter of ≥50mm (such as large tools or palms), suitable for the protection verification of outdoor distribution boxes, large machinery and other equipment.
IP2X test probe (test tool B):

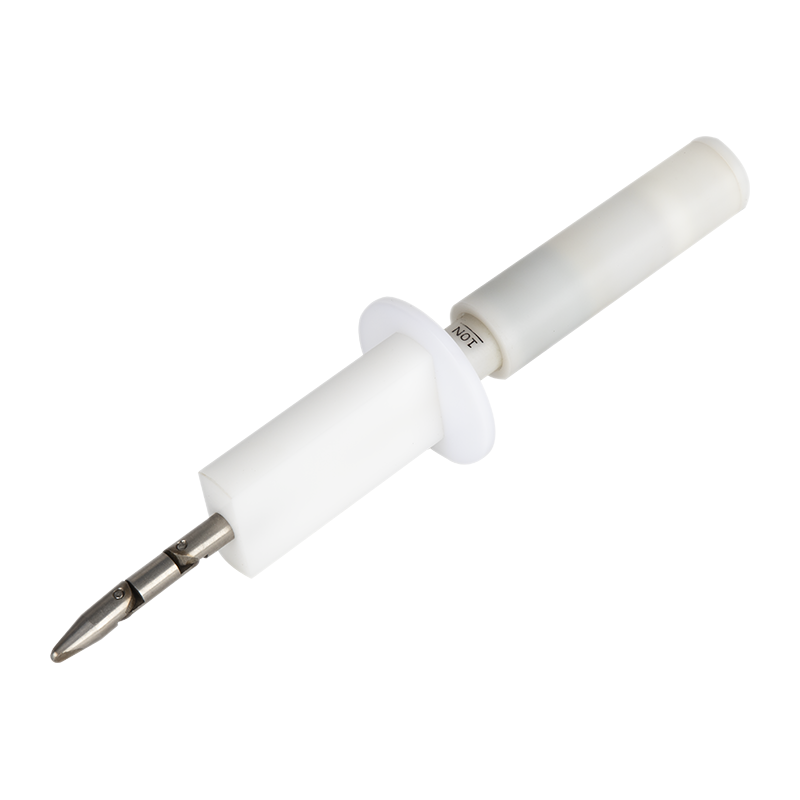

A knuckle - shaped probe simulating the shape of a finger (with a diameter of 12.5mm), with a thrust of 10±1N, used to detect whether the equipment can prevent fingers from touching the internal live parts. It is commonly used in the electric shock prevention tests of household appliances, lamps and other products.
IP3X test probe (test tool C):

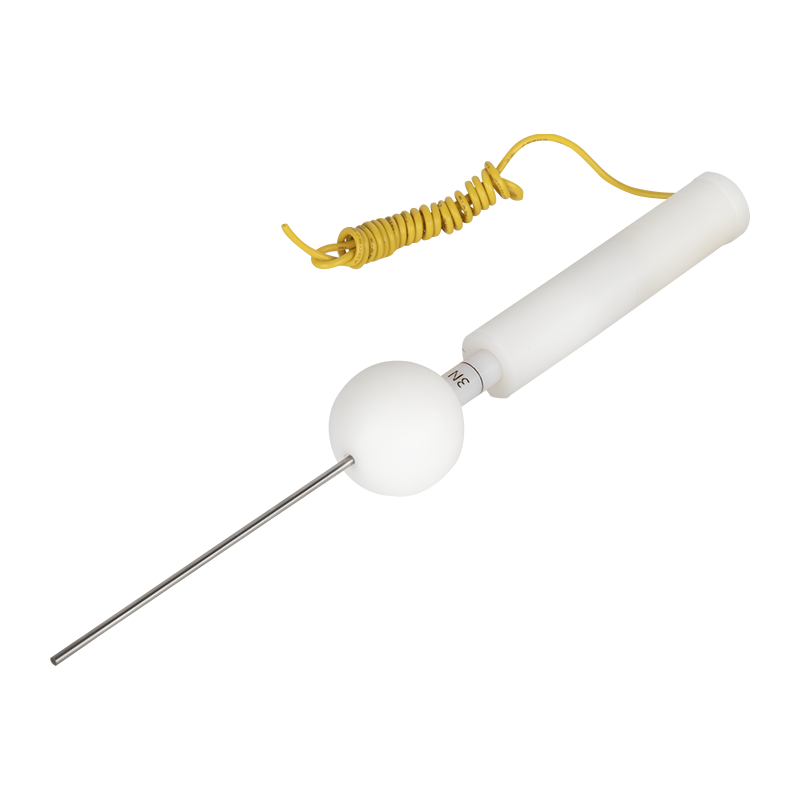

A rigid straight rod with a diameter of 2.5mm, with a thrust of 3±0.3N, used to simulate the intrusion of thin sticks or tools, suitable for scenarios such as industrial control cabinets and power tools that need to block smaller solid foreign objects.
IP4X test probe (test tool D):

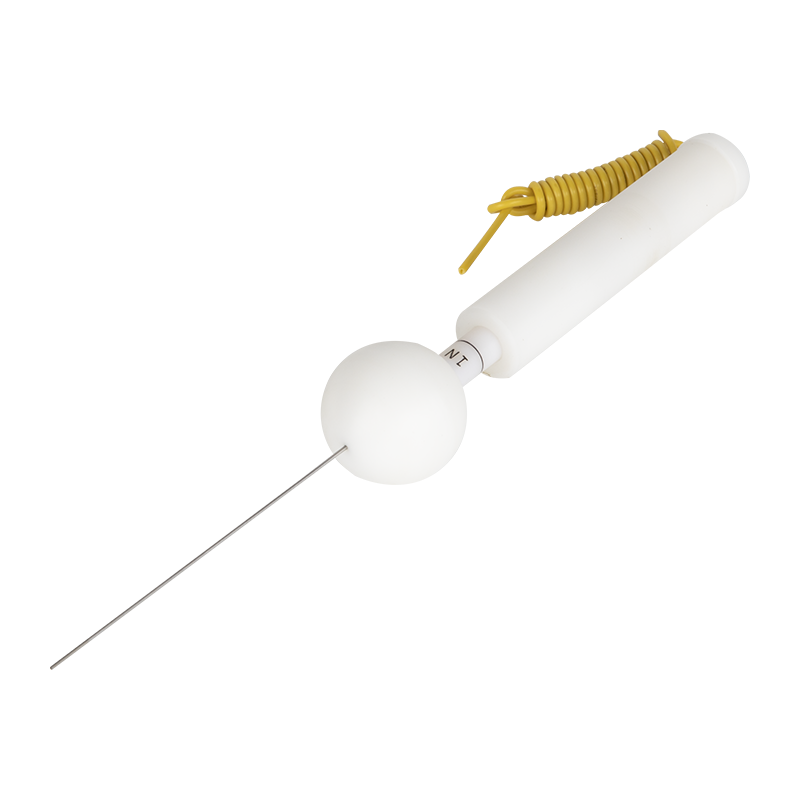

A rigid straight rod with a diameter of 1.0mm, with a thrust of 1±0.1N, specially used to test the equipment's protection ability against fine particles such as sand, dust and metal shavings, and is widely used in equipment in dusty environments such as outdoor lamps and communication base stations.
Parameters
Model |
Project |
Parameters |
IP2X |
Probe diameter |
12mm |
Probe length |
80mm |
|
Force value |
10N±1N |
|
IP20C |
Probe diameter |
12.5mm |
Force value |
30N±3N |
|
IP3X |
Probe diameter |
2.5mm |
Probe length |
100mm±0.5mm |
|
Force value |
3N±0.3N |
|
Diameter of the blocking ball |
35mm±2mm |
|
IP3X |
Probe diameter |
1mm |
Probe length |
100mm±0.5mm |
|
Force value |
1N±0.1N |
|
Diameter of the blocking ball |
35mm±2mm |
Application
Industrial and Outdoor Equipment: The IP4X probe is often used for equipment testing in dusty environments such as deserts and mines, such as construction machinery and marine electrical appliances, to ensure that dust cannot penetrate and cause malfunctions.
Electronics and Precision Instruments: The IP3X probe can verify the dust-proof capabilities of sensors and medical equipment, preventing fine metal shavings from damaging precision components.
