Interface Relay Module FY-T73
Key attributes
| Brand | Switchgear parts |
| Model NO. | Interface Relay Module FY-T73 |
| Rated voltage | 12V/24VDC/220VAC |
| Series | FY-T73 |
Product descriptions from the supplier
Feautres

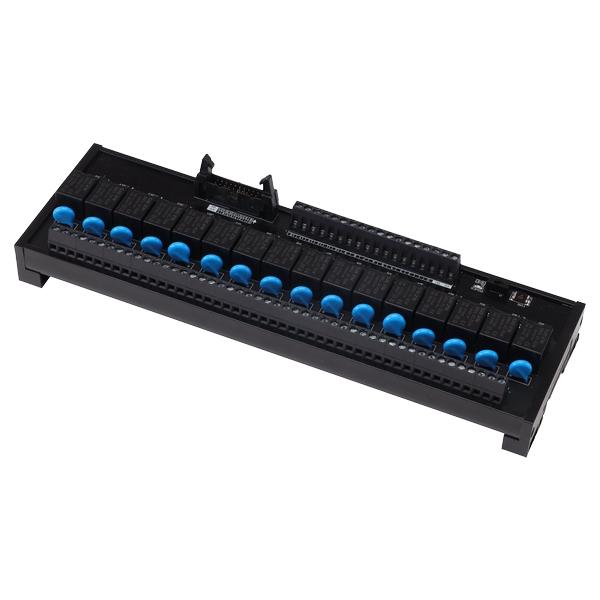

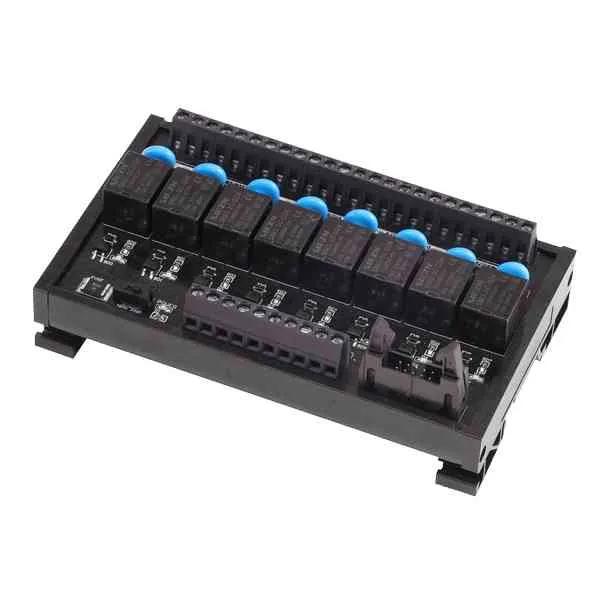

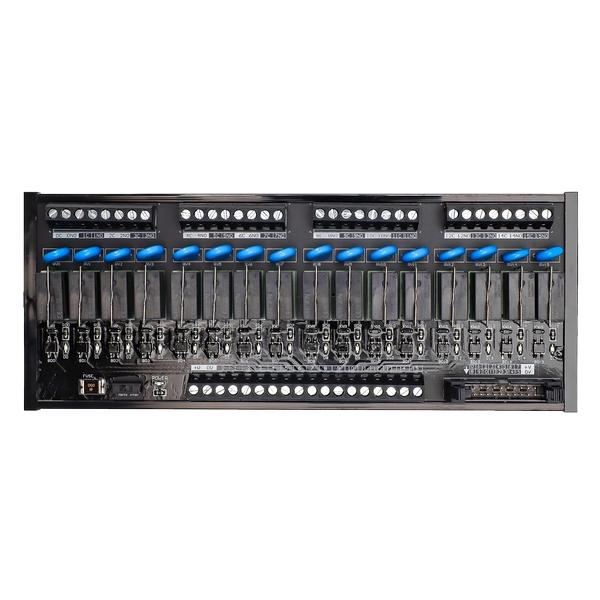

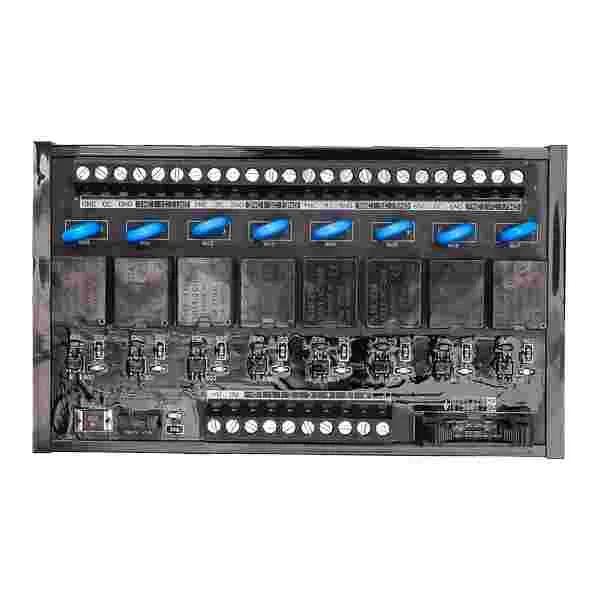

DIN Rail optional 1/2/4/8/16 channels relay interface modules
Sub-miniature intermediate power relay, approved TUV, UL, and RoHS compliant.
Switching current up to 10A at 250VAC or 30VDC
Input connections by screw terminal block.NPN& PNP in common use, AC&DC in common use
Relay status indicator LED, surge suppression protection, and overvoltage protection are provided for each relay channel
DIN Rail mountable for width TS15/28/35
FY-T73 is a relay module group used for PLC output load current amplification and isolation protection. It can be installed on digital output of PLC, microcontroller industrial control board, time relay, button light controller, and can amplify the output control current. The FY-T73 series relay module is commonly used in high-power load equipment and weak point control of strong light applications, which can protect the core control system from damage
Product features of FY-T73 series relay module:
1. 1 set of independent relay modules.
2. Built in MPA type electromagnetic relay, with a load capacity of 10A250VAC (RES.) and 10A30VDC (RES.).
3. Input method: Terminal block input, compatible with NPN and PNP, compatible with AC and DC; 0 output form: 1 normally open, 1 normally closed.
4. Equipped with independent LED working status indicator lights and surge suppression protection circuits for each group.
5. The output end has overvoltage protection.
6. Bottom TS15/28/35 rail installation.
Application scenarios of FY-T73 series relay module:
Used for amplifying and isolating the output load current of PLC, installed on the digital output terminals of PLC, microcontroller industrial control board, time relay, button and other controllers, amplifying the control current at the output terminal, and used in high-power equipment, weak current control and strong current situations to protect the core control system from damage.
