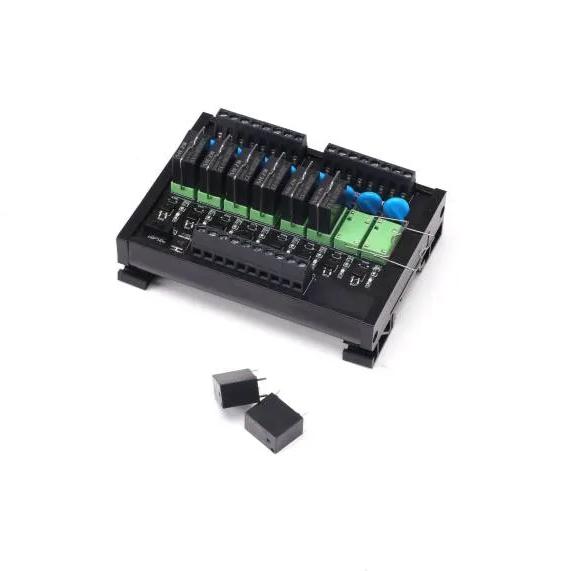

Interface Relay Module FY-N32F 8A
Key attributes
| Brand | Switchgear parts |
| Model NO. | Interface Relay Module FY-N32F 8A |
| Rated voltage | 12V/24VDC/220VAC |
| Series | FY-N32F |
Product descriptions from the supplier
Modules are designed for current amplification and isolation protection of output loads. Applicable to PLC, microprocessor systems and time relays, etc, amplifying the control current of outputs, to protect key control systems not being destroyed.
Features
DIN Rail optional 1/2/4/8/16 channels relay interface modules
Sub-miniature intermediate power relay, approved TUV, UL, and RoHS compliant.
Switching current up to 10A at 250VAC or 30VDC
Input connections by screw terminal block.NPN& PNP in common use, AC&DC in common use
status indicator LED, surge suppression protection, and overvoltage protection are provided for each relay channel
DIN Rail mountable for width TS15/28/35
| Input operating voltage | Rated DC/AC±10% |
| Relay Mounting | Soldered on PCB |
| Rated Load Current | 10A 250V AC/30V DC |
| Max Inrush Current | 10A |
| Coil Resistance | 100mQ (1A 6V DC) |
| Operate Time(at normal volt.) | ≤10ms |
| Release Time(at normal volt.) | ≤10ms |
| Input/Output Connections | Screw terminal block |
| Wire Range | 0.2～2.5mm² |
| Stripping Length | 6-7mm |
| DIN Rail Mountable | 15/28/35mm |
| Power Per Channel | 0.45W |
| Dimension | 18 x 90 x 52 mm |
