handheld Loop Resistance Tester

Name: handheld Loop Resistance Tester
Brand: Yueqing HK Electrical Trading Co., Ltd.
SKU: 822
Price: 3000.00 USD
Availability: InStock

Yueqing HK Electrical Trading Co., Ltd.

9yrs 100+ staff 1000+m² US$300000000+ China

Attributes Description Documentation Resource Library Supplier

Key attributes

Brand	HK Electrical
Model NO.	WDHL-100B handheld Loop Resistance Tester
Measurement range	0～20mΩ
Output current	30A
Series	WDHL-100B

Description

Description

This tester is an innovative product with a small size, hand-held operation, battery-powered operation, and easy portability.The products are mainly used in the measurement of contact resistance of switch contacts and other micro-ohm resistances, with fast test speed and high accuracy.

Feature

Powered by lithium battery, more than 600 tests can be carried out continuously with one charge, and the test process is simple and convenient.
The maximum output current is 100A, a variety of currents are optional, and the test range is wide.
During 100A test, the longest test time can reach 60 seconds, which can meet various field applications.
Wide range and high precision, up to 5mΩ at 100A.
It has perfect open circuit protection, overheating protection and other protection functions.
The 6.5.6-inch large industrial-grade high-brightness color LCD screen is still clearly visible in strong sunlight.
An optional external printer is available to facilitate data printing.
With local storage and USB storage, it is convenient for data preservation.

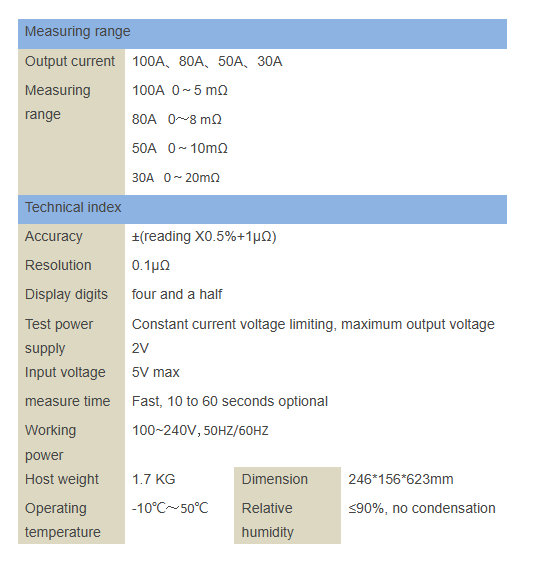

Specifications
