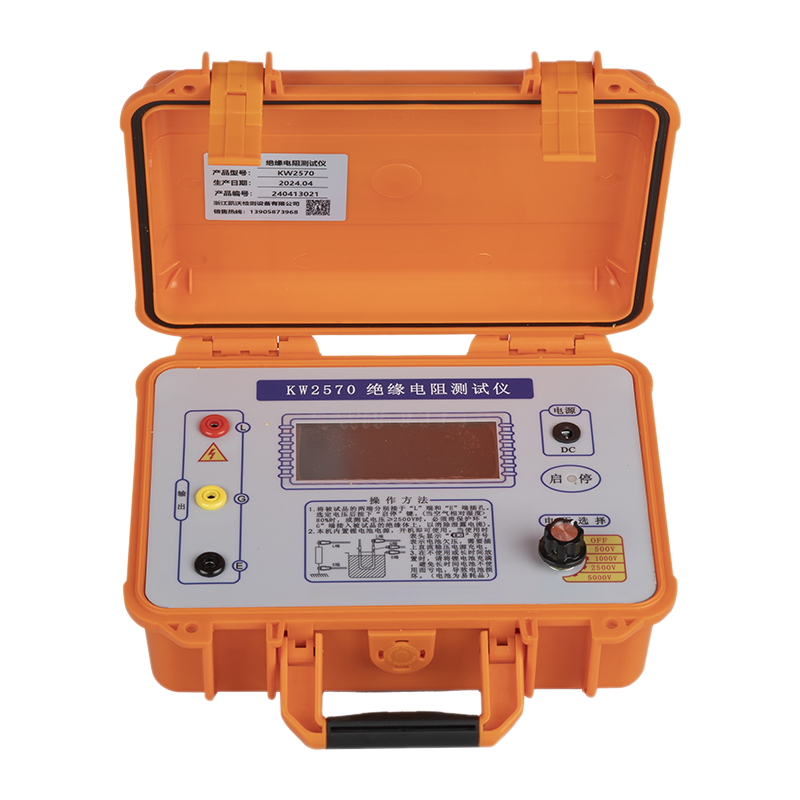

KW2570 Series Insulation Resistance Tester

discuss personally

Model

Basic info Product Detail Supplier

Basic info

Brand	Wone Store
Model NO.	KW2570 Series Insulation Resistance Tester
Rated voltage	220V
Series	KW2570 Series

Product Detail

Overview

Suitable for insulation testing in the maintenance, test and calibration of various electrical equipment.
31/2 LCD large - screen digital display, high resolution, easy to read.
There are four kinds of rated insulation test voltages, with strong load - carrying capacity.
Easy to operate, convenient to carry, accurate, reliable and stable.
Low power consumption, powered by 12V/1.8AH lithium battery, with long usage time. (Or powered by AC 220V alternatively)
When the battery voltage is insufficient, there is an undervoltage symbol display.
With shock - proof, dust - proof and moisture - proof structure, adapting to harsh working environments.
The protection function is complete, and it can withstand short - circuit and residual voltage impact of the tested electrical appliance.

Parameters

Project	Parameters
Rated voltage	500V; 1000V; 2500V; 5000V
Working voltage	Rated voltage ±10% load≥20MΩ
Error	≤5%
Output circuit-short current	≥1mA
Insulation resistance	≥50MΩDC1kV）
Power frequency withstand voltage	3kV/min
Power supply	12V Lithium battery
Changer rated	AC 180V~260V 50/60Hz
Standby power consumption	≤1.8W
Size	260mmx180mmx100mm
Weight	1kg
