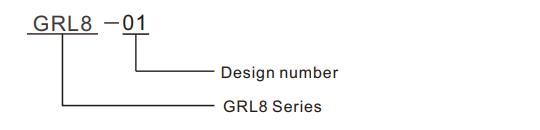

GRL8-01 02 Level Control Relay
Key attributes
| Brand | Switchgear parts |
| Model NO. | Level Control Relay GRL8-01 02 |
| Rated frequency | 50/60Hz |
| Series | GRL8 |
Product descriptions from the supplier

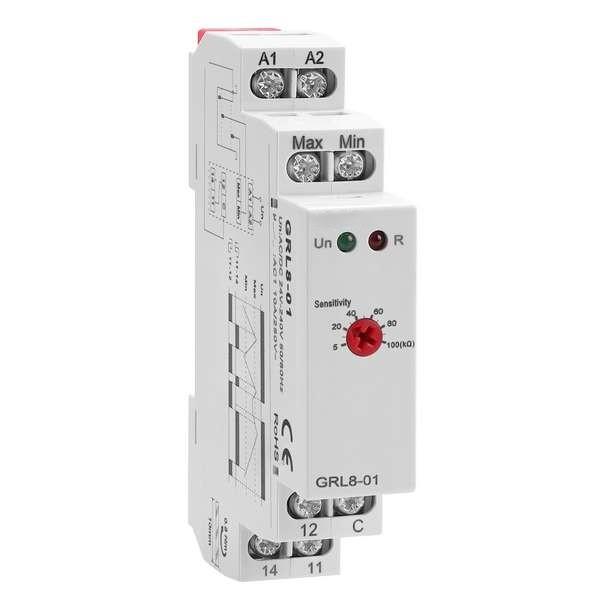

The GRL8-01/02 series is an intelligent control relay designed specifically for liquid level monitoring, utilizing isolated power supply technology and modular structure. Its compact 18mm width body supports 35mm standard card rail installation, suitable for automation control scenarios of various liquid storage and transportation systems.
GRL8-01/02 series liquid level control relay product features:
1. Dual mode flexible configuration
Type 01 supports 2-pole liquid level control
Type 02 supports 2-pole or 2-pole liquid level control
2. Programmable working mode
Free selection of drainage mode (triggered by high liquid level) or water supply mode (triggered by low liquid level) through dip switch
3. Precision parameter adjustment
Sensitivity 5-100k Ω continuously adjustable, suitable for liquids with different conductivities
The action delay can be set between 0.1s-10s, effectively suppressing interference from liquid level fluctuations
4. Wide voltage compatible design
Supports AC/DC 24~240V wide input, isolated power supply enhances system safety
5. Visual state management
Two color LED indicator lights display real-time power supply status and relay action signals
6. Industrial grade compact structure
35mm rail installation in accordance with DIN EN 60715 standard, 18mm ultra-thin width saves control cabinet space
Advantages of GRL8-01/02 series liquid level control relay products:
1. Multi purpose: A single device is compatible with both water supply and drainage modes, reducing the variety of spare parts
2. Anti interference design: adjustable delay function effectively filters false signals and improves action reliability
3. Strong compatibility: wide voltage input+wide impedance range suitable for mainstream liquid level sensors worldwide
4. Convenient maintenance: Modular plug-in design supports quick on-site replacement, LED dual indication reduces the difficulty of fault diagnosis
5. Security Enhancement: The isolated power supply design prevents induced electrical interference and complies with industrial control safety standards
| Technical parameters | GRL8-01 | GRL8-02 |
| Function | 2 level contorl mode | 2 or 1 level contorl mode |
| Supply terminals | A1-A2 | |
| Voltage range | AC/DC 24-240V(50-60Hz) | |
| Input | max.2VA | |
| Supply voltage tolerance | -15%;+10% | |
| Sensitivity ( input resistance) | adjustable in range 5 kΩ -100 kΩ | |
| Voltage in electrodes | max. AC 5 V | |
| Current in probe | AC <0.1 mA | |
| Time response | max. 400 ms | |
| Max. capacity length | 800 m (sensitivity 25kΩ), 200 m (sensitivity 100 kΩ) | |
| Max. capacity of probe cable | 400 nF (sensitivity 25kΩ), 100 nF (sensitivity 100 kΩ) | |
| Time delay (t) | adjustable, 0.1 -10 s | |
| Accuracy in setting (mechanical) | ± 10 % | |
| Temperature coefficient | 0.05%/℃,at=20℃(0.05%℉，at=68℉) | |
| Output | 1×SPDT | |
| Current rating | 1×10A(AC1) | |
| Switching voltage | 250VAC/24VDC | |
| Min.breaking capacity DC | 500mW | |
| Output indication | red LED | |
| Mechanical life | 1×107 | |
| Electrical life(AC1) | 1×105 | |
| Reset time | max.200ms | |
| Operating temperature | -20℃ to+55℃（-4℉to131℉） | |
| Storage temperature | -35℃ to+75℃（-22℉to158℉） | |
| Mounting/DIN rail | Din rail EN/IEC 60715 | |
| Protection degree | IP40 for front panel/IP20 terminals | |
| Operating position | any | |
| Overvoltage cathegory | III. | |
| Pollution degree | 2 | |
| Max.cable size(mm 2) | solid wire max.1×2.5or 2×1.5/with sleeve max.1×2.5(AWG 12) | |
| Tightening torque | 0.8Nm | |
| Dimensions | 90×18×64mm | |
| Weight | 70g | 72g |
| Standards | EN 60255-1 | |
