| Brand | Xinyouxiang |
| Model NO. | GRD9L-D Switch+Auto Reclosing Module |
| Rated voltage | AC220V |
| Rated frequency | 50/60Hz |
| Series | GRD9L-D |
GRD9L-C/D automatic reclosing, can be matched with circuit breakers/leakage protection switches, controlled by switch values, and can also remotely control the closing and opening of circuit breakers/leakage protection switches. It has mechanical/electronic dual lock function and can be widely used in power grid terminal lines, new energy circuit management, intelligent electronic triple, intelligent furniture, smart factories, new energy vehicle electric piles and other places.
GRD9L-C/D automatic reclosing product features:
1. Can be matched with circuit breakers/leakage protection switches for remote closing and breaking of circuit breakers/leakage protection switches.
2. The D-type has automatic reclosing function by controlling the circuit breaker/leakage protection switch through switch quantity.
3. Equipped with manual/automatic selection switch.
4. Equipped with mechanical/electronic dual lock function.
5. The handle can be modified to match the circuit breaker/leakage protection switch.
6. Can be paired with other accessories.
7. The working status is indicated by LED.
8. The operating mechanism has a width of only 18mm.
Application scenarios of GRD9L-C/D automatic reclosing:
It can be widely used in power grid terminal lines, new energy circuit management, intelligent electronic triple, smart homes, smart factories, new energy vehicle charging piles, etc.

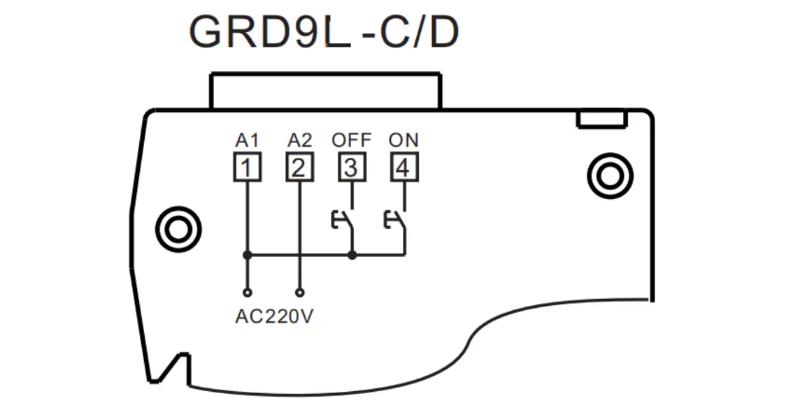

Wiring Diagram
| Type | GRD9L-D |
| Control mode | Controlled by switch |
| Supply terminals | A1-A2 |
| Voltage range | DC12V |
| Power input | DC max.1W(standby) max.20W(action) |
| Voltage range | AC 220V(50-60Hz) |
| Supply voltage tolerance | -10%; + 10% |
| Power input | AC max.1VA(standby) max.20VA(action) |
| Supply voltage tolerance | -10%;+10% |
| Supply indication | red LED |
| Action time | ≤1s |
| Auto reclosing times | 3 |
| Auto reclosing time interval | 10s-60s-300s |
| Reset the closing times | No trip or manual reset within 15 minutes after successful closeing |
| Mechanical life | 10000 |
| Electrical life(AC1) | 4000 |
| Operating temperature | -20℃ to +55℃ (-4℉ to 131℉ ) |
| Storage temperature | -35℃ to +75℃ (-22℉ to 158℉ ) |
| Mounting/DIN rail | Din rail EN / IEC 60715 |
| Protection degree | IP20 |
| Operating position | any |
| Overvoltage cathegory | III. |
| Pollution degree | 2 |
| Max.cable size(mn2） | solid wire max. 1X2.5 or 2X1. 5 / with sleeve max.1 X2.5(AWG 12) |
| Dimensions | 82X18X78mm |
| Weight | 80g |
| Combination with accessories | |
| Auxiliary contact | Yes |
| Alarm contact | Yes |
| Shunt release | Yes |
| Under voltage release | Yes |
