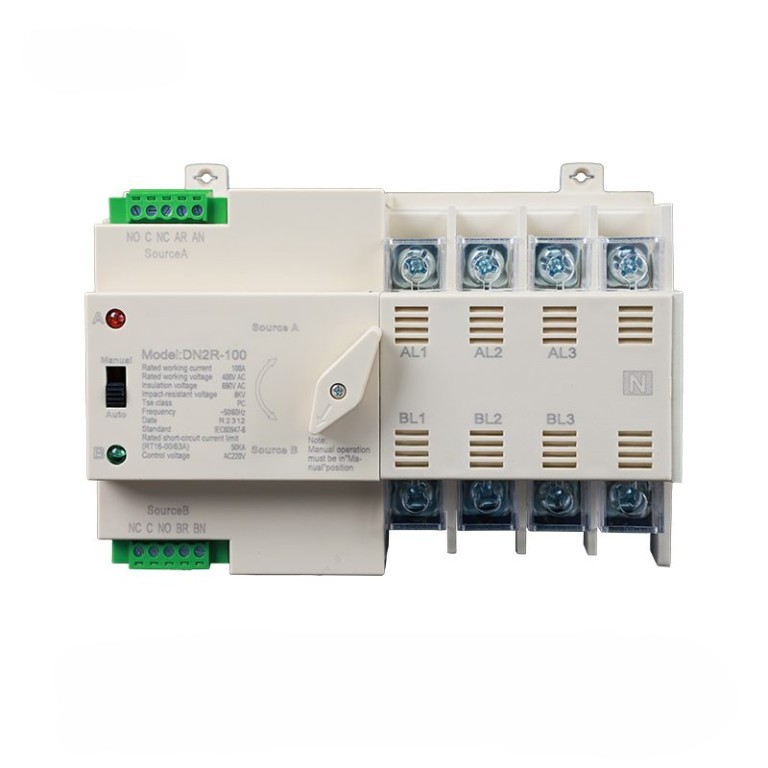

DN2R-100 Automatic Transfer Switch AC400V ats switch automatic transfer

discuss personally

Model

Basic info Product Detail Supplier

Basic info

Brand	Switchgear parts
Model NO.	DN2R-100 Automatic Transfer Switch AC400V ats switch automatic transfer
Rated normal current	100A
number of poles	4p
Series	DN2R-100

Product Detail

Overview

1.1 Series dual power automatic transfer switches are newly developedminiature household power transfer switches. This switch is mainly used to test whether the normal or standby power supply is normal.

When the normal power supply is abnormal, the backup power supply will work immediately to ensure the continuity, reliability and safety ofthe power supply. This product is specially designed for home track TV installation and is specially used for Pz30 distribution box.

1.2 Series of automatic transfer switches are suitable for emergency power system 400v，60A with AC rated current of 50v or 60Hz compact structure , reliable conversion, easy installation and maintenance.long life.

lt is widely used in various occasions where continuous power failure is not allowed. lt can be operated electrically or manually by ATS, and the controller.DN2R-100

1.3 Complies with requirements of Low-voltage Switch Gear and Control Gearspecified by IEC 60947-6-1 and IEC60947-3: functional equipment and transfer switch equipment.

3 Basic Parameters

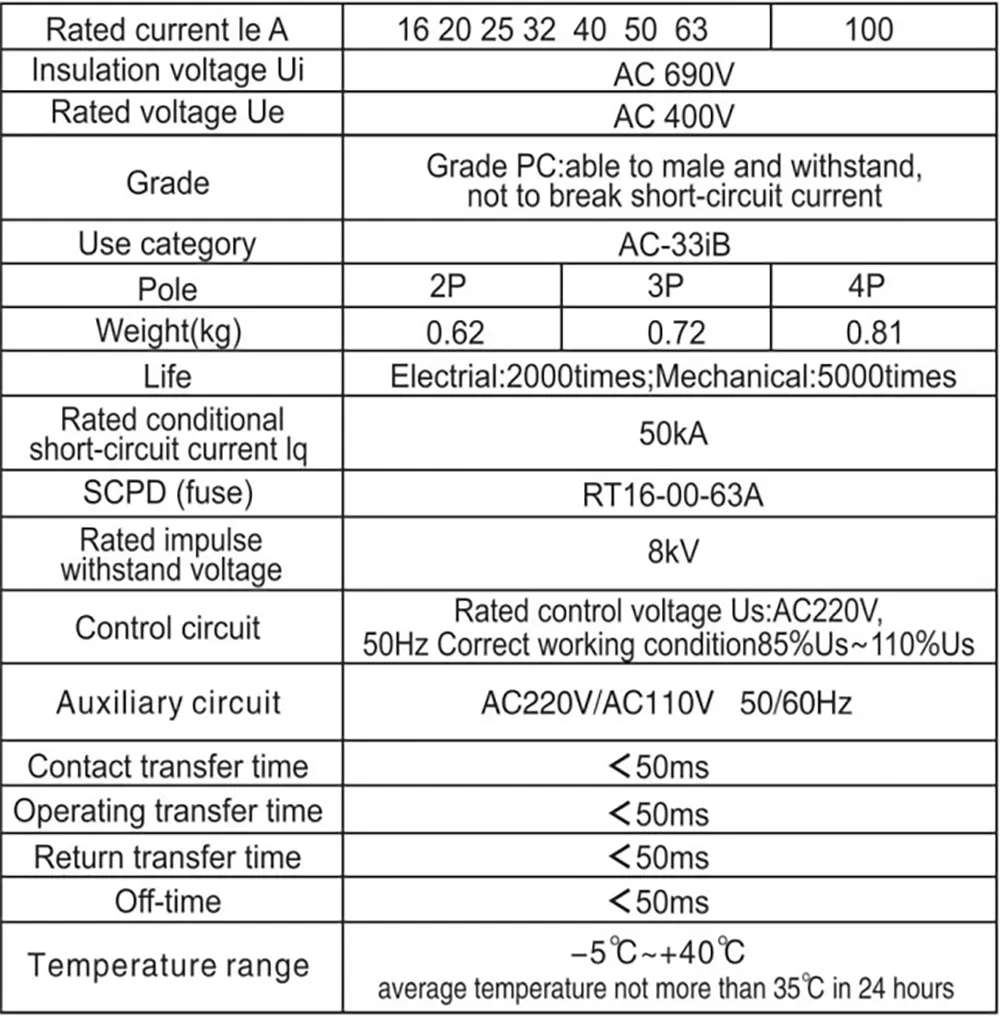

See Table 1 for the basic parameters of Table 1
