| Brand | Xinyouxiang |
| Model NO. | GPS8-05 Voltage / Current Protector |
| Rated voltage | AC220V |
| Rated normal current | 32A |
| Rated frequency | 45Hz-65Hz |
| Series | GPS8-05 |

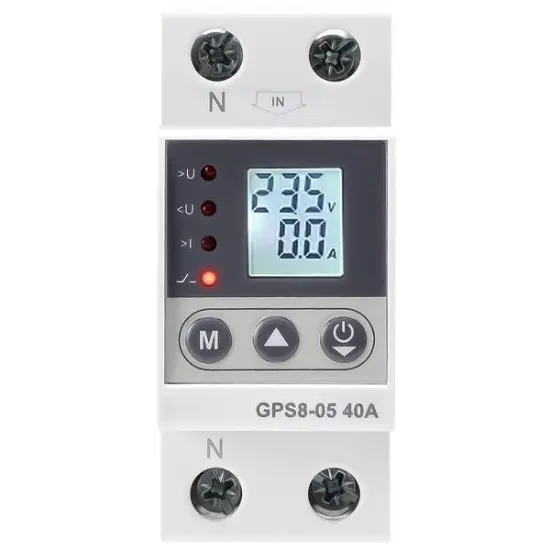

GPS8-05 is an intelligent device that combines power parameter monitoring and protection functions. Real time voltage, current, and energy data are displayed on digital screens, and multiple threshold protections such as overvoltage, undervoltage, and overcurrent are supported to provide safety assurance for household and small commercial electrical equipment. Its dual manifold structure enhances wiring stability and complies with modern electrical installation standards
GPS8-05 Digital Voltage/Current Protector Product Features:
1. Dual display monitoring system
The high-definition digital screen synchronously displays real-time voltage and current values, with an accuracy controlled within ≤1%, assisting users in accurately grasping the power supply status.

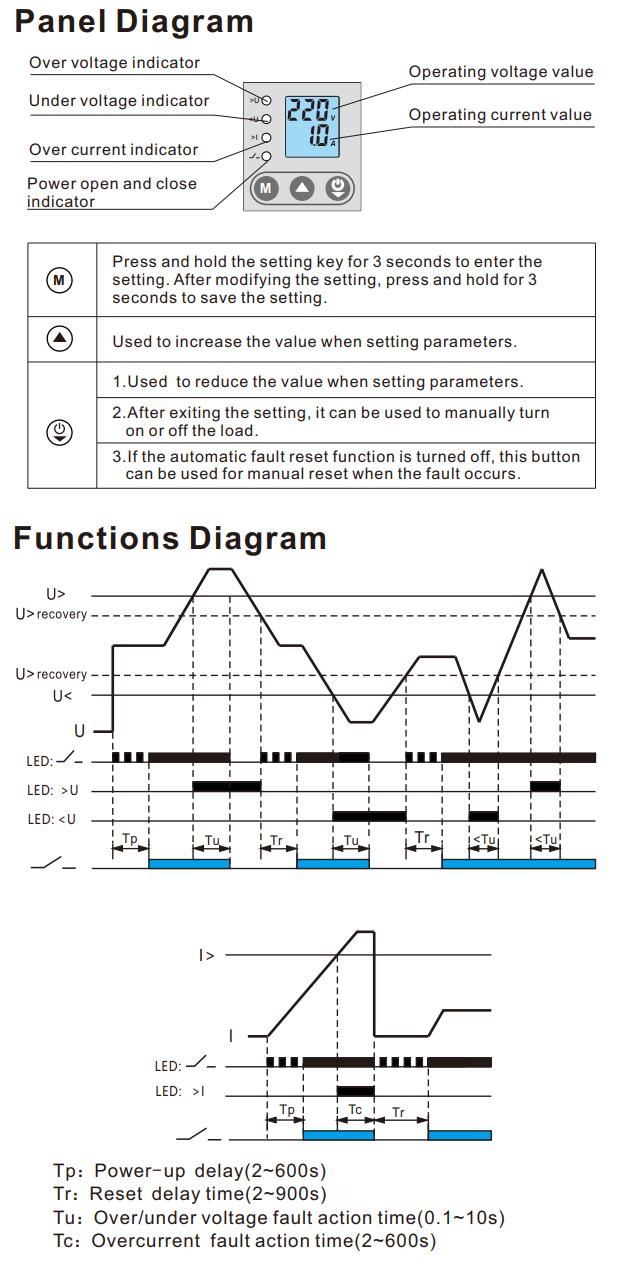

The independent LED indicator provides intuitive feedback on the operating status (normal/overvoltage/undervoltage/overcurrent), making it easy to quickly locate faults.
2. Custom protection mechanism
Support users to set overvoltage, undervoltage, and overcurrent protection thresholds as needed, flexibly responding to power grid fluctuations or equipment abnormalities.
3. Electric energy management function
Integrated energy metering module that can display real-time active power and cumulative electricity consumption, assisting in energy efficiency analysis and cost control.
4. Strengthen structural design
The dual current drainage architecture improves conductivity stability and wiring capacity, reduces the risk of poor contact, and extends service life.
5. Convenient integration solution

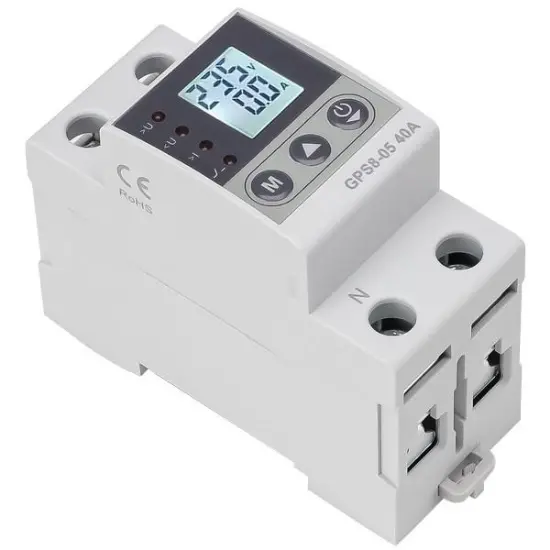

Compatible with 35mm standard electrical rails, plug and play, simplifying the installation and maintenance process of distribution boxes.
GPS8-05 |
|
Function |
Over voltage, under voltage and over current |
Rated supply voltage |
AC220V(L-N) |
Rated supply frequency |
45~65Hz |
Operation voltage range |
80V~400V(L-N) |
Rated operational current |
32A,40A,50A,63A,80A(AC1) |
Burden |
AC max.3VA |
Over voltage operation value |
OFF,230V~300V |
Under voltage operation value |
140V~210V,OFF |
Over/under voltage action delay |
0.1s~10s |
Over current operation value |
1~32A,40A,50A,63A,80A |
Over current action delay |
2s~600s |
Power-up delay |
2s~600s |
Reset time |
2s~900s |
Measurement error |
≤1% |
Electrical life(AC1) |
1x104 |
Mechanical life |
1x10⁶ |
Operating temperature |
-20℃~+60℃ |
Storage temperature |
-35℃~+75℃ |
Mounting/DIN rail |
Din rail EN/IEC 60715 |
Protection degree |
IP40 for front panel/IP20 terminals |
Operating position |
any |
Overvoltage cathegory |
III |
Pollution degree |
2 |
Dimensions |
82×36×68mm |
Weight |
135g |
The GPS8-05 Voltage/Current Protector is a high-performance electrical safety device integrating four-in-one protection (overvoltage, undervoltage, overcurrent, leakage) and intelligent monitoring, specially designed for residential power distribution, small commercial buildings and industrial control scenarios. Compatible with AC 220V rated voltage and 50-60Hz frequency, it covers a working voltage range of 80V-400V, and can real-time monitor core parameters such as voltage, current, power and power consumption. When a circuit abnormality occurs, it quickly cuts off the fault loop within 0.1-10 seconds, and supports automatic or manual reset after the fault is eliminated without continuous manual monitoring, fully protecting electrical equipment and personal electrical safety.
The core functions focus on safety protection, intelligence and convenience, with advantages in three key dimensions:
· Four-in-one comprehensive protection: Integrates overvoltage, undervoltage, overcurrent and leakage protection, accurately identifies circuit abnormalities, quickly cuts off faults, and avoids equipment burnout and electric shock risks.
· High-precision intelligent monitoring: Equipped with a professional metering chip, it real-time detects voltage, current, power factor and cumulative power consumption with a measurement error ≤1%, facilitating energy management.
· Flexible parameter configuration: Supports custom setting of overvoltage (230V-300V), undervoltage (140V-210V), overcurrent (1A-80A) thresholds and action delay time, adapting to different scenario requirements.
· Humanized design: A large-size clear display intuitively shows parameters, supporting standard DIN rail installation and optional automatic/manual reset dual modes for convenient and efficient operation.
