| Brand | Xinyouxiang |
| Model NO. | GPS8-06 Voltage / Current Protector |
| Rated voltage | AC220V |
| Rated normal current | 32A |
| Rated frequency | 45Hz-65Hz |
| Series | GPS8-06 |

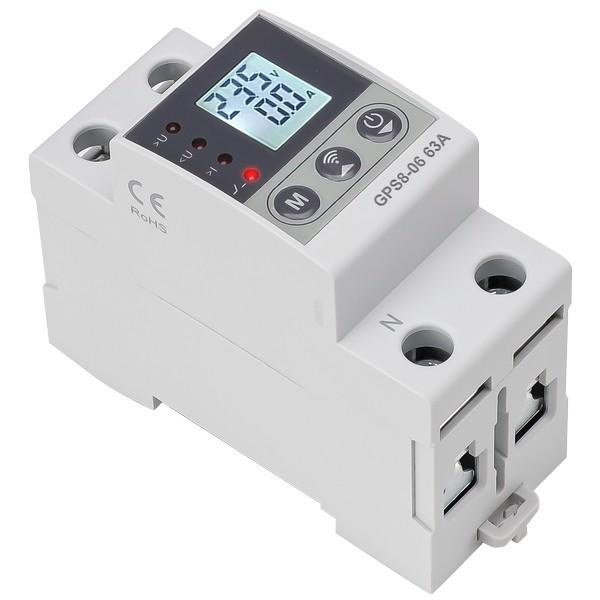

GPS8-06 is an intelligent voltage/current protector with digital display function, which can monitor line voltage, current and power status in real time, and achieve automatic power-off protection by setting protection thresholds. Integrated WiFi communication and energy metering functions, supporting remote monitoring and data query through mobile apps, making it an ideal power management device for homes and small commercial spaces
GPS8-06 Digital Voltage/Current Protector Product Features:
1. Visual monitoring

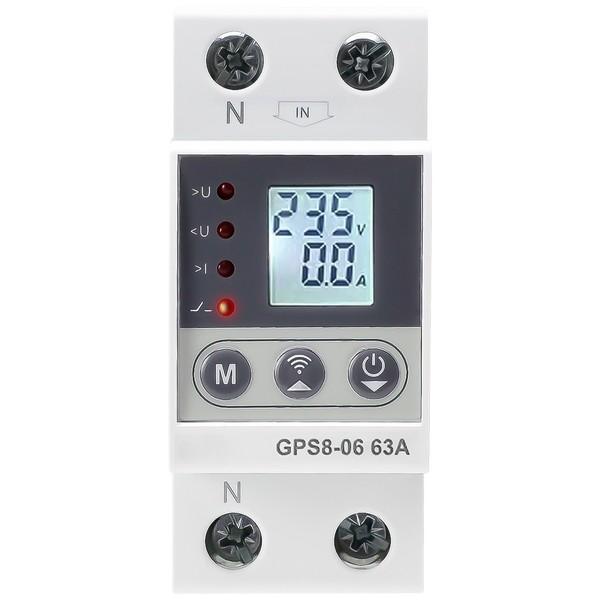

The high-definition digital screen displays real-time voltage and current values, and the operating status is clear at a glance;
The LED indicator light provides intuitive feedback on the type of fault (such as overvoltage/undervoltage/overcurrent) and quickly locates the problem.
2. Intelligent control
Support custom overvoltage, undervoltage, and overcurrent protection thresholds, flexibly matching different device requirements;
Built in WiFi module, can remotely start and stop devices, query real-time data and historical records through a dedicated APP.
3. High precision electric energy metering
Real time monitoring of active power and cumulative electricity consumption (kWh) to assist users in analyzing energy consumption patterns;
Measurement error ≤1%, provide reliable data support.
4. Stable and reliable hardware design
The dual manifold structure enhances conductivity stability and supports larger current loads;

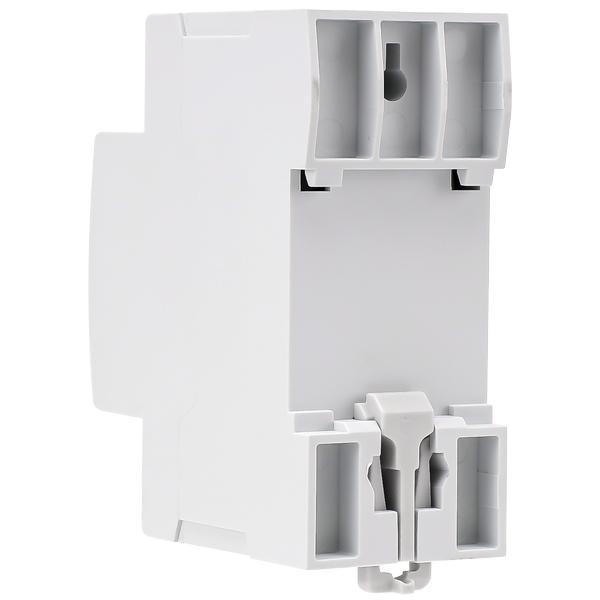

35mm standard guide rail installation, compatible with mainstream distribution boxes, easy to construct.
GPS8-06 |
|
Function |
Over voltage,under voltage and over current |
Rated supply voltage |
AC220V(L-N) |
Rated supply frequency |
45～65Hz |
Operation voltage range |
80V~400V(L-N) |
Rated operational current |
32A,40A,50A,63A,80A(AC1) |
Burden |
AC max.3VA |
Over voltage operation value |
OFF,230V~300V |
Under voltage operation value |
140V~210V,OFF |

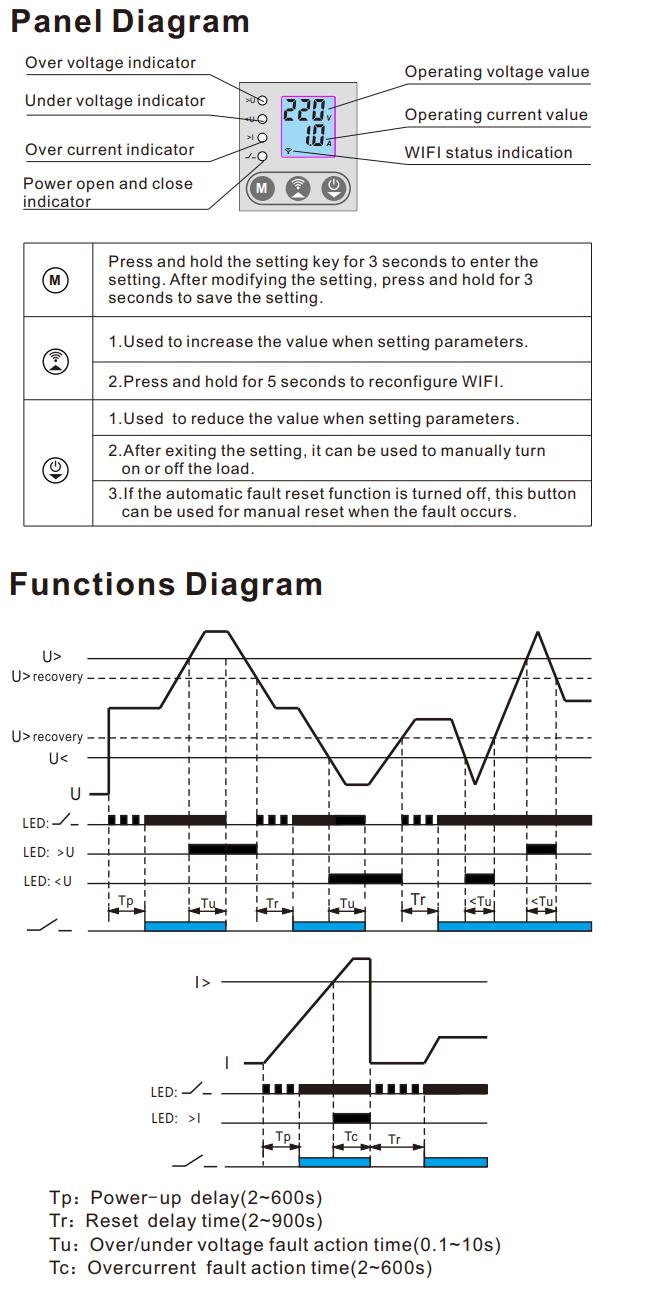

Over/under voltage action delay |
0.1s~10s |
Over current operation value |
1～32A,40A,50A,63A,80A |
Over current action delay |
2s~600s |
Power-up delay |
2s~600s |
Reset time |
2s~900s |
Measurementerror |
≤1% |
Electrical life(AC1) |
1x10⁴ |
Mechanical life |
1x106 |
Operating temperature |
-20℃~+60℃ |
Storage temperature |
-35℃~+75℃ |
Mounting/DIN rail |
Din rail EN/IEC 60715 |
Protection degree |
P40 for front panel/IP20 terminals |
Operating position |
any |
Overvoltage cathegory |
Ⅲ. |
Pollution degree |
2 |

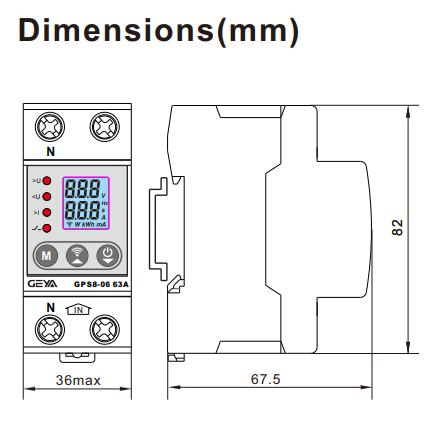

Dimensions |
82x36x68mm |
Weight |
135g |
The GPS8-06 Voltage/Current Protector is a compact electrical safety device integrating three-in-one protection (overvoltage, undervoltage, overcurrent) and intelligent monitoring, specially designed for residential power distribution, small commercial premises and old circuit renovation scenarios. Compatible with AC 220V rated voltage and 45-65Hz frequency, it covers a working voltage range of 80V-400V, and can real-time monitor core parameters such as voltage, current, power and energy consumption. When a circuit abnormality occurs, it quickly cuts off the fault loop within 0.1-10 seconds, and supports automatic reset (adjustable reset time) after the fault is eliminated. Equipped with an LCD digital display and LED fault indicators, it adopts 1-MODULE standard DIN rail installation, which is compact, lightweight and easy to operate, fully protecting electrical equipment and personal electrical safety.

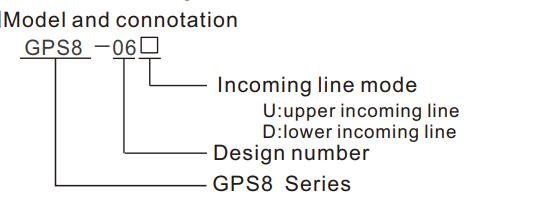

·Installation requirements: It must be installed by a qualified electrician, supporting upper wire (U-shaped)/lower wire (D-type), compatible with EN/IEC 60715 standard 35mm DIN rail, and maintaining a reasonable distance from surrounding equipment during installation;
·Maintenance taboos: The equipment does not have isolation function. Before maintenance, it is necessary to disconnect the higher-level MCB and prohibit live disassembly or wiring;
·Environmental adaptation: Working temperature -20 ℃~+60 ℃, protection level IP40/IP20, keep away from dust, corrosive gases, and strong electromagnetic interference;
·Fault handling: Automatic reset is enabled by default (reset time 2s~900s, factory 30s), and can be turned off. At this time, if there is a fault, press the "decrease button" to manually reset.
