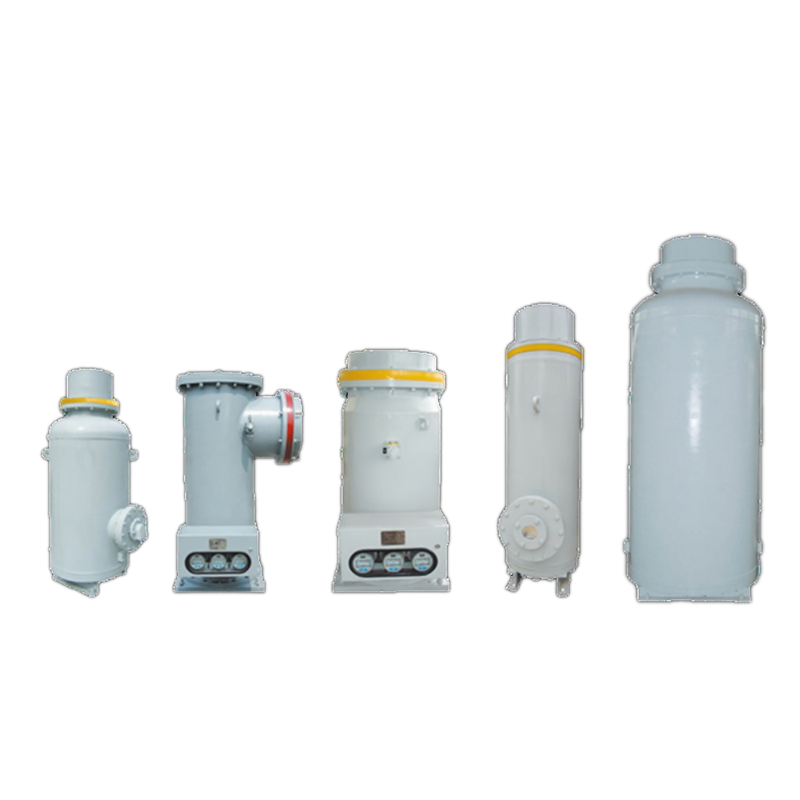

GIS Tank-Type Lightning Arresters

Name: GIS Tank-Type Lightning Arresters
Brand: Wenzhou Rockwill Electric Co., Ltd.
SKU: 1873
Availability: InStock

Wenzhou Rockwill Electric Co., Ltd.

17yrs 700++ staff 108000+m² US$150000000+ China

Attributes Description Documentation Resource Library Supplier

Key attributes

Brand	ROCKWILL
Model NO.	GIS Tank-Type Lightning Arresters
Rated voltage	500KV
Series	Y10WF

Description

Overview

GIS tank-type lightning arresters employ a metal-enclosed housing with SF6 gas as the internal insulation medium. They utilize single-column or multi-column resistor disc columns in parallel as the core, covering AC voltage ratings from 110kV-500kV.

Features

Compact Structure and Small Footprint

The tank-type structure and rational internal component layout result in a compact overall structure and reduced footprint.

High Reliability

High-performance resistor discs and reliable sealing structures ensure long-term stable operation in harsh environments with minimal risk of failure or performance degradation.

Excellent Insulation Performance

SF6 gas as the internal insulation medium and single-column or multi-column resistor disc columns in parallel offer superior insulation performance.

Strong Contamination Resistance

The shell material exhibits good contamination resistance, maintaining stable insulation performance in contaminated environments.

Technology parameters

Project	Value
rated voltage（AC）	110kV	220kV	330kV	500kV
Resistor Disc Gradient（V/mm）	360~400
2ms Repetitive Charge Transfer Qrs（C）	1.6
AC Aging Coefficient at 95% Charge Ratio	＜0.9
High-Temperature Power Consumption at 190℃（W）	＜8
