| Brand | Switchgear parts |
| Model NO. | DNH10 1P Fuse Switch Disconnector |
| Rated normal current | 250A |
| Series | DNH10 |
Dual Functionality: The DNH10 1P Fuse Switch Disconnector serves as both a fuse and a disconnector switch, reducing the need for multiple devices in the system.
High Voltage Rating: It supports rated working voltages of up to 690V AC and 440V DC, ensuring compatibility with a broad range of systems.
Versatile Usage: This product is designed to meet AC-23B and DC-21B usage categories, making it suitable for both AC and DC applications.
Excellent Short-Circuit Protection: With a rated limiting short-circuit current of 120kA at AC 400V, it provides effective protection against short-circuit faults.
Long Lifespan: The DNH10 1P offers an electrical lifespan of 200 operations and a mechanical lifespan of 2000 operations, ensuring long-term reliability and reduced maintenance.
Compact and Reliable: The product is compact and designed for easy installation and operation, making it ideal for applications where space is limited.
Industrial Control Systems: For isolating and protecting circuits in industrial environments, ensuring the safe operation of machinery and equipment.
Power Distribution: Used in electrical distribution panels for secure disconnection and protection of circuits under load.
Renewable Energy Applications: Perfect for integration into photovoltaic systems, providing a secure disconnect solution for DC circuits.
HVAC Systems: Protects HVAC electrical control circuits from overloads and short-circuits.
Motor Protection: Can be used in motor control panels for disconnecting motors safely and ensuring their protection from electrical faults.

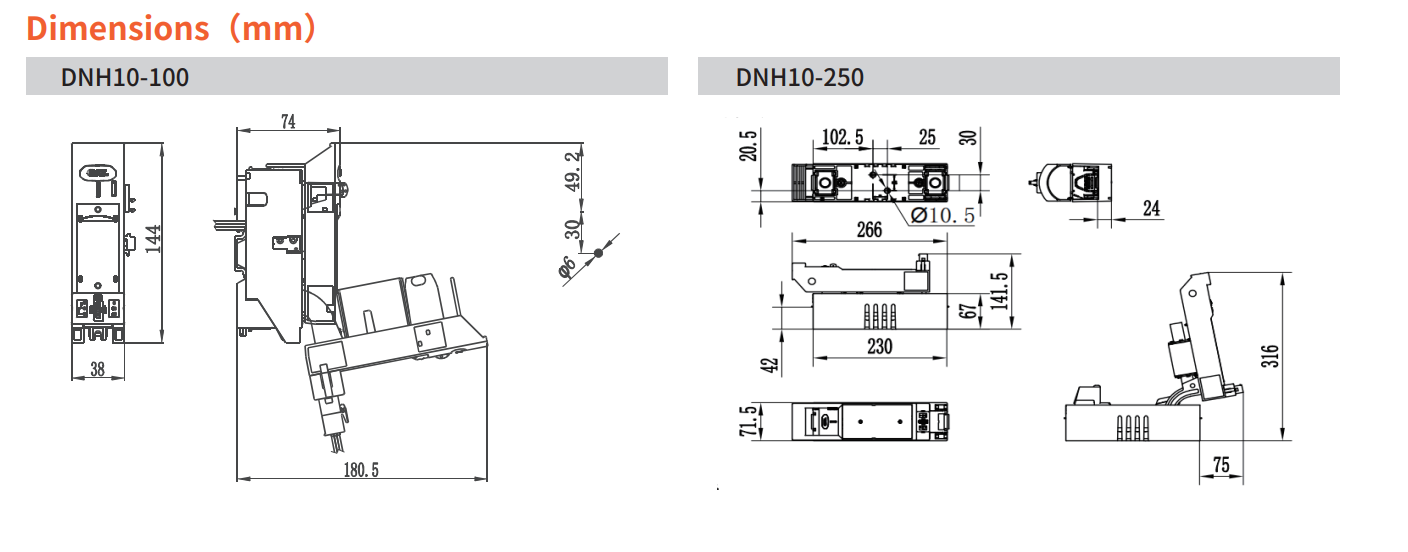

| Specification | DNH10-100 | DNH10-250 |
| Rated Working Voltage (Ue) | 690V AC / 440V DC | 690V AC / 440V DC |
| Rated Working Current (Ie) | 160A | 250A |
| Rated Insulation Voltage (Ui) | AC800V | AC1000V |
| Rated Heating Current (Ith) | 160A | 250A |
| Rated Impulse Withstand Voltage (Uimp) | 8kV | 12kV |
| Rated Limiting Short-Circuit Current | 120kA (AC 400V) | 120kA (AC 400V) |
| Rated Frequency | 40~60Hz | 50~60Hz |
| Connection Section | 15~50mm² | 15~50mm² |
| Usage Category (with Fuse) | AC-23B (AV400) / AC-21B (AV690) / DC-21B (DC440) | AC-23B (AV400) / AC-21B (AV690) / DC-21B (DC440) |
| Electrical Lifespan | 200 operations | 200 operations |
| Mechanical Lifespan | 2000 operations | 2000 operations |
| Working Conditions | -5℃ ~ +40℃ | -5℃ ~ +40℃ |
| Altitude | ≤ 2000m | ≤ 2000m |
