Customizable Pad mounted transformer for residential subdivision

The Rockwill pad-mounted transformer is a fully enclosed, ground-level power distribution solution designed for residential subdivisions, public areas, and underground network applications. Housed in a tamper-proof, , it combines robust American-style construction with advanced engineering to deliver reliable and secure step-down distribution in space-constrained urban environments.

Key Features

• Tamper-proof enclosure ：Fully sealed, lockable compartments prevent unauthorized access to live components, meeting utility security standards for public installations
• Customizable configuration： Optional over-current protection and sectionalized switching allow the unit to be tailored to specific distribution requirements
• Smart grid ready： Compatible with future integration of monitoring and control systems for remote operation and grid modernization
• Dead-front design ： Elbow connector technology enables safe live-line connections and hot-stick maintenance without exposed energized parts
• Liquid-filled cooling ： Oil-immersed design with ONAN cooling ensures efficient heat dissipation and quiet operation in residential environments

Technical Parameters

Full load loss, no-load loss, and impedance voltage values are provided on request per project-specific ratings.

Applications

• Step-down distribution in 22 kV (25 kV class) underground residential distribution (URD) networks
• Power supply for residential subdivisions, commercial districts, and public facility complexes
• Urban load centers requiring compact, low-noise, tamper-proof installation at ground level
• Networks requiring flexible configuration with optional sectionalizing and over-current protection

Custom ratings, voltages, impedance, tapping arrangements, and accessory options (SCADA-ready, metering, surge arresters) available on request. Contact Rockwill for application-specific design and quotation.

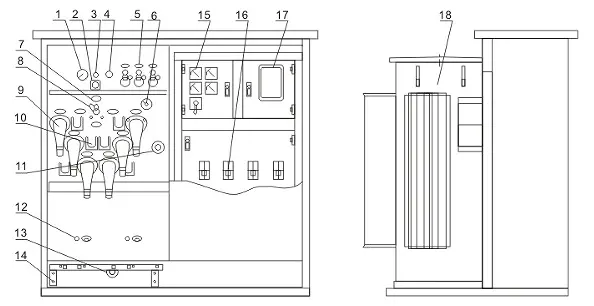

Structure View
