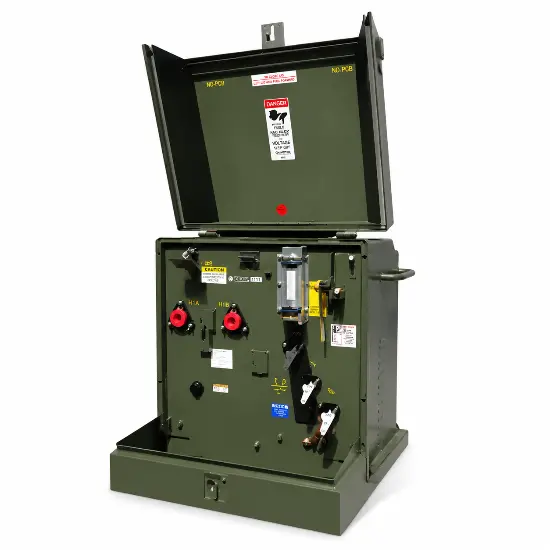

15kVA Single Phase Pad Mounted Transformer for North American residential subdivisions

Name: 15kVA Single Phase Pad Mounted Transformer for North American residential subdivisions
Brand: Wenzhou Rockwill Electric Co., Ltd.
SKU: 1282
Price: 2100.00 USD
Availability: InStock

Wenzhou Rockwill Electric Co., Ltd.

17yrs 700++ staff 108000+m² US$150000000+ China

Attributes Description Documentation Resource Library Supplier

Key attributes

Brand	ROCKWILL
Model NO.	15kVA Single Phase Pad Mounted Transformer for North American residential subdivisions
Rated frequency	50/60Hz
Rated capacity	15kVA
Phases	Single-phase
Cooling mode	ONAN
Series	ZGS-D

Description

Single-phase pad-mounted transformers provide dependable underground power distribution for medium and low voltage applications. Ranging from 15kVA to 500kVA with a maximum primary voltage rating of 34.5kV, these compact units come with universal bushing wells, a full selection of fuse protection schemes and ANSI-standard tap changer configurations.

Designed and manufactured to meet or surpass ANSI, NEMA and RUS specifications, this transformer series adopts a rugged shell-form core paired with heavy-duty enclosures for long service life, making it an optimal choice for residential, commercial and municipal distribution projects throughout North America.

Key Features

Enhanced Safety：It features a tamper-resistant enclosure fitted with stainless steel locking hardware to block unauthorized entry. An automatic pressure relief valve safely releases internal pressure during fault conditions. Multiple fuse protection options are available, including bayonet, current-limiting and dual-element fuses for complete short-circuit and overload safeguarding.
Stable & Robust Performance：The shell-form core construction delivers superior short-circuit withstand capacity. Coils are wrapped with adhesive-coated insulation for enhanced dielectric strength and aging resistance. ONAN mineral oil cooling maintains consistent operating temperatures during sustained full-load operation.
Long-Lasting Corrosion-Resistant Build：The enclosure is constructed from powder-coated steel with anti-corrosion finish to withstand harsh outdoor climates. A removable access hood facilitates easy on-site inspection and maintenance. Laser-etched nameplates retain clear markings permanently without fading after years of outdoor exposure.
Customizable & Smart Compatible Layout：Multiple ANSI Type I / Type II high-voltage and low-voltage bushing arrangements are offered to match diverse wiring layouts. Optional SCADA integration supports remote monitoring and smart grid control, compatible with modern municipal intelligent power networks.

Main Technical Specifications

Item	Specification
Phase	Single Phase
Maximum Primary Voltage	Up to 34.5kV
Coil & Core Structure	Shell Form
Rated Capacity	15kVA – 500kVA
Frequency	50/60Hz
Standard Cabinet Color	Green
Secondary Voltage	120/240V (custom voltages available upon request)
Winding Conductor	Aluminum or Copper (optional)
Cooling Class	ONAN (Oil Natural Air Natural)
Applicable Standards	ANSI C57.12.34, NEMA, RUS
Primary Usage Scenarios	Residential subdivisions, auxiliary power for light industry

Applications

Underground distribution networks for urban residential neighborhoods and commercial zones
Industrial plants and interconnection of renewable energy systems
Municipal public infrastructure such as roadway lighting
Data centers and critical load power supply facilities
