automatic Transformer Tester
Key attributes
| Brand | Wone Store |
| Model NO. | WDCTP-100P Series Transformer Tester |
| Rated voltage | AC220V+10% |
| Rated frequency | 50Hz |
| Series | WDCTP-100P |
Product descriptions from the supplier
Description
WDCTP Series Transformer Tester is new product created after widely adopt customers’ advices and deep theoretical study. It is based on the automatic FA Series Transformer Tester General which is produced by our company that is widely acclaimed and applied. The adoption of high-performance DSP and ARM, advanced manufacturing technology ensure a stable and reliable product performance, full-featured, high degree of automation, high efficiency, in the domestic leading level, they are the professional testing equipments for transformer check in power industry.

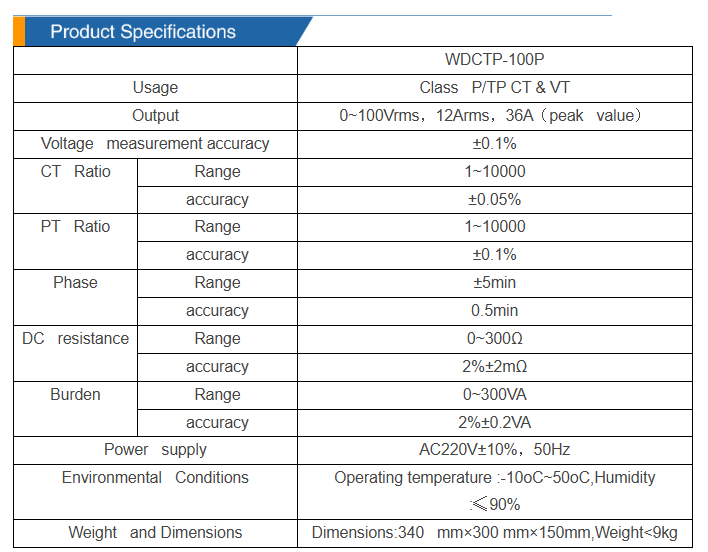

Specifications
