600V-1.5kV Low-Voltage Vacuum Contactor

Covering the rated current limitations of high-voltage motors across all power ratings to meet diverse needs, with voltage ratings of 1.5kV and rated currents of 200A, 400A, and 600A.The CV series low-voltage vacuum contactors have obtained UL/CSA/CE certifications; featuring ultra-long mechanical life and compact dimensions, they flexibly cater to both retrofitting existing contactor projects and designing new projects.

Feature

• Wide Voltage Adaptability, Covering Multi-Scenario Requirements：With a rated voltage range of 600V-1.5kV, it can flexibly adapt to different low-voltage distribution systems. It not only meets the power control needs of industrial machinery but also applies to circuit switching in small and medium-sized distribution networks, eliminating the need to replace equipment due to voltage differences.

• Vacuum Arc-Extinguishing Technology, Excellent Breaking Performance：Adopting a vacuum interrupter design, it features strong arc-extinguishing capability and fast breaking speed (usually ≤ 20ms). It can effectively cut off rated current and fault short-circuit current, avoiding arc burns and equipment damage, ensuring safe and reliable circuit breaking.

• Outstanding Resistance to Harsh Environments：The fully sealed structure can resist the impact of industrial environments such as dust, moisture, and oil stains. It has a wide operating temperature range (-25℃ to +60℃) and can withstand certain vibrations and shocks, making it suitable for complex scenarios such as factory workshops and mine auxiliary equipment.

• Low Power Consumption Design, Excellent Energy Efficiency：The optimized electromagnetic system reduces power consumption by 15%-20%, minimizing energy loss during long-term operation. Meanwhile, some models adopt high-efficiency permanent magnet mechanisms to further improve energy efficiency, complying with green industrial equipment standards.

• Multiple Protections, High Safety Factor：Integrating overload, undervoltage, and phase loss protection functions, it can monitor circuit status in real-time and respond quickly. Combined with an insulated shell design, it achieves an IP20 or higher protection rating, reducing the risk of electric shock to personnel.

Parameters

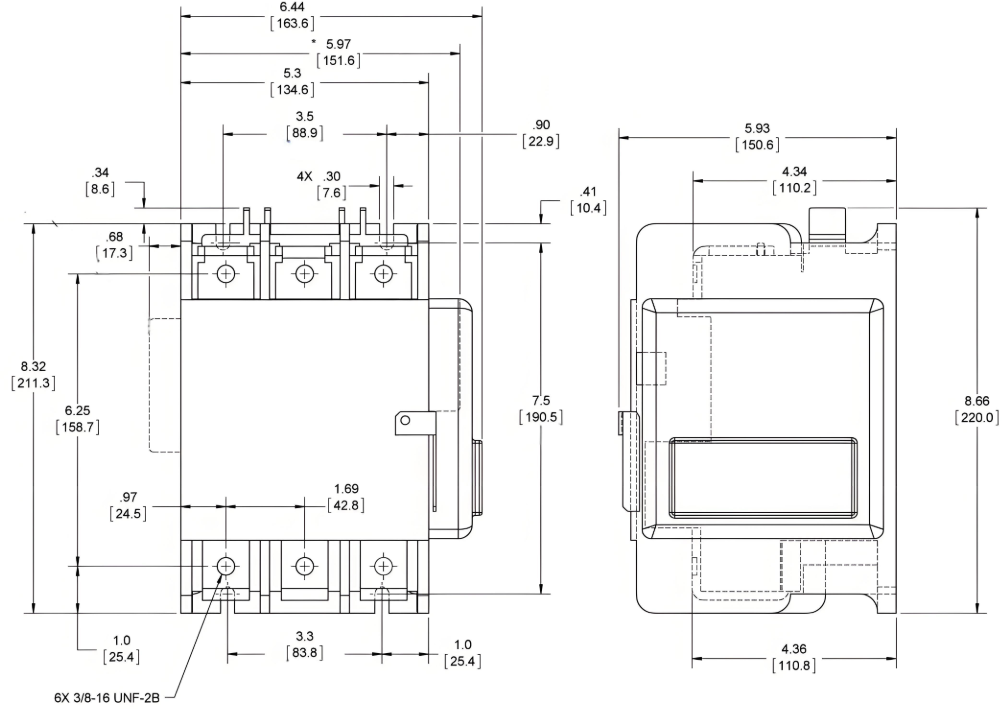

Mechanical dimensions
