40.5kV Manual operating mechanism for SF6 gas filling cabinet spring outgoing line

Add us on Google
  • 40.5kV Manual operating mechanism for SF6 gas filling cabinet spring outgoing line

Key attributes

Brand Xinyouxiang
Model NO. 40.5kV Manual operating mechanism for SF6 gas filling cabinet spring outgoing line
Rated voltage 40.5kV
Rated normal current 630A
Rated frequency 50/60Hz
Series RNF-40.5
Description

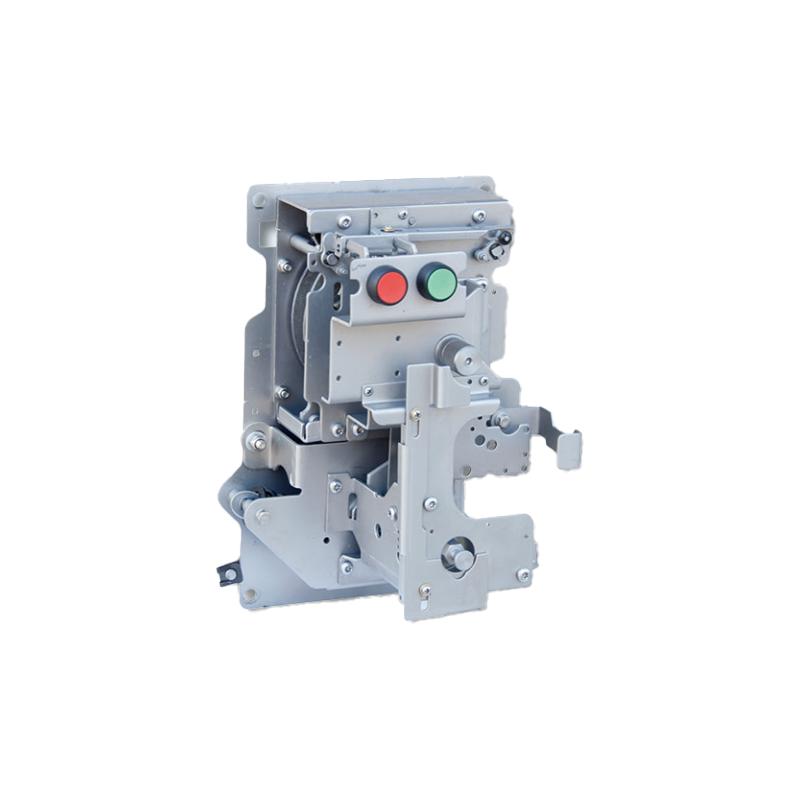

The RNF-40.5-02 is a 40.5kV-specialized manual operation mechanism designed for medium-voltage outlet line circuits, ideally paired with switchgear like SF6 gas-insulated cabinets or metal-clad outlet cabinets. It relies on manual actuation, ensuring reliable switching even without external power—perfect for emergency or remote scenarios where power access is limited.

Integrated with mechanical interlocking, it strictly prevents misoperations such as live switching or incorrect grounding, boosting operational safety. Its compact structure fits tight cabinet spaces, while the durable metal housing resists dust and moisture, adapting to substation, industrial distribution, and box-type switch station environments. Compliant with IEC and GB standards, it delivers stable performance for outlet line control, with a long mechanical lifespan to meet frequent operation needs.

0peratinginstructions for spring mechanism

Closing operation
Make sure to check the products without transportation will be fixed on thedeformation mechanism of load switch, the use of the operating handle is insertedinto the upper part of special institutions, clockwise rotation about 90 degrees, theload in the body under the action ofthe spring force main loop switch. Or the electricoperation, press the closing button, the motor drives the mechanism to completethe switch on and turn operation, at this time can not carry on the ground operation.

Switching operation
The operating handle is inserted into the upper part of the mechanism and rotatescounterclockwise about 90 degrees, and the load switch is operated under theaction of the force of the mechanism spring, and the main circuit is split. Or electricoperation, according to the switch button, the motor drives the mechanism tocomplete the switching operation, at this time, it can do the closing operation or thegrounding operation.
Earthing closing and earthing switching operation

The operating handle is inserted into the lower part of the mechanism and rotatesabout 90 degrees clockwise. The load switch is closed to the ground circuit underthe action of the force of the mechanism spring, so that the main circuit closingoperation can not be performed at this time.The operating handle rotates about 90 degrees counterclockwise, and the loadswitch switches the grounding circuit under the action ofthe force of the mechanismspring, which can be used for closing operation or grounding operation.

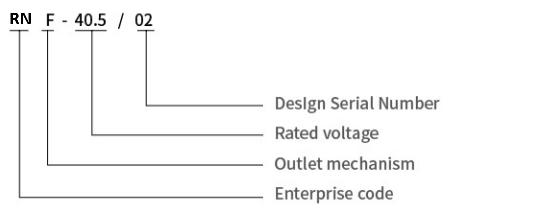

Model composition and meaning

40.5kV Manual operating mechanism for SF6 gas filling cabinet spring outgoing line

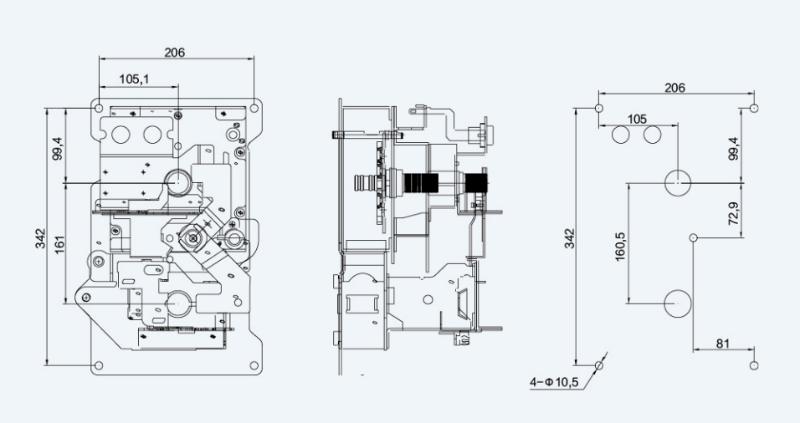

Operating mechanism shape and mounting dimensions

40.5kV Manual operating mechanism for SF6 gas filling cabinet spring outgoing line

Frequently asked questions

It is a dedicated manual mechanical component matched with 40.5kV gas cabinet outgoing line isolators, mainly used to drive the outgoing line isolator to complete opening and closing actions, realizing safe isolation and switching of the medium-voltage outgoing line circuit. Its core characteristics include 3 points: ① Matching scenario: Specially designed for 40.5kV SF6 gas-filled cabinets, compact structure, suitable for sealed cabinet space and outgoing line compartment layout; ② Operation mode: Adopt manual operation (handle/hand crank), no external power supply required, stable and reliable; ③ Core function: Drive the outgoing line isolator to move reliably, realize circuit isolation, and cooperate with the cabinet door, circuit breaker and PT (potential transformer) isolation switch to complete mechanical interlock. It is widely used in 40.5kV medium-voltage distribution systems such as power grids, industrial and mining enterprises, and commercial parks.
Its core functions are focused on outgoing line drive, safety protection, interlock coordination and scenario adaptation, which are essential for the safe operation of the outgoing line system: ① Outgoing line isolation drive: Through manual operation, output stable mechanical force to drive the outgoing line isolator to open/close, realizing reliable isolation of the 40.5kV outgoing line circuit; ② Safety protection: With over-torque protection and position limiting function, avoiding mechanism damage caused by excessive manual operation force and ensuring the outgoing line isolator is in the correct opening/closing position; ③ Interlock coordination: Cooperate with the cabinet door, circuit breaker and PT isolation switch to realize interlock control, preventing misoperations such as live isolation of outgoing lines and closing with grounding; ④ Scenario adaptation: Match the installation dimension and transmission interface of the 40.5kV gas cabinet outgoing line isolator, ensuring smooth power transmission and adapting to the layout of the outgoing line compartment; ⑤ Maintenance convenience: Simple structure, easy manual operation and low maintenance difficulty
