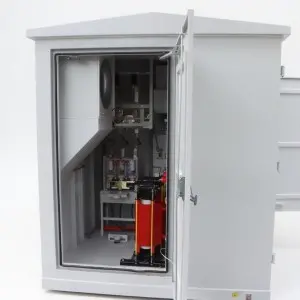

| Model NO. | 35kV High Voltage STATCOM (SVG) - SVG Series for Grid Stability & Harmonic Mitigation |
| Rated voltage | 35kV |
| Rated frequency | 50Hz |
| Series | RWSVG |
The RWSVG Series High Voltage Dynamic Reactive Power Compensation Device is an advanced reactive power compensation system based on IGBT technology. It can rapidly and continuously provide capacitive or inductive reactive power, enabling precise control of constant reactive power, constant voltage, and constant power factor at monitoring points. This ensures stable, efficient, and high-quality operation of the power system.
In distribution networks, when medium or small-capacity RWSVG devices are installed near special loads (such as arc furnaces), they significantly improve power quality at the point of common coupling (PCC). Benefits include:
Improved power factor
Elimination of three-phase imbalance
Reduction of voltage flicker and fluctuations
Suppression of harmonic pollution
Technical Specifications
| Parameter | Specification |
|---|---|
| Rated Operating Voltage | 6 kV, 10 kV, 27.5 kV, 35 kV |
| Rated Capacity | ±1 ~ ±100 Mvar |
| Output Range | From rated inductive reactive power to rated capacitive reactive power, continuous adjustment |
| Response Time | < 5 ms |
| Overload Capacity | 1.2 × rated value for 1 min |
| Output Current Harmonic Distortion (before filter) | < 5% |
| Output Current THD | < 3% |
| System Voltage Fluctuation Tolerance | 4% ~ 10% |
| Efficiency | ≥ 99.2% under rated conditions |
| Operating Temperature | –20°C ~ +40°C |
| Storage Temperature | –40°C ~ +65°C |
| Cooling Method | Advanced forced air cooling |
| Relative Humidity | ≤ 90% (25°C, non-condensing) |
| Altitude | ≤ 1000 m (derating required for >1000 m) |
| Installation Angle | ≤ 8° |
The RWSVG series features an ultra-fast response time of less than 5ms for IGBT switching, ensuring real-time suppression of voltage flicker and rapid compensation of reactive power.
