How does an inverter perform Pulse Width Modulation (PMW)?
The core concept of PWM (Pulse Width Modulation) is to control the average output voltage by changing the pulse width of the signal. Here are the detailed steps:
Reference Signal (Carrier Signal): PWM inverters typically use a fixed frequency triangular wave (or sawtooth wave) as a reference signal, known as the carrier signal.
Modulation Signal: The modulation signal is a varying sine wave that represents the desired output AC waveform. The amplitude of the modulation signal determines the magnitude of the output voltage, while its frequency determines the frequency of the output voltage.
Comparison: The modulation signal is compared with the carrier signal. When the instantaneous value of the modulation signal is greater than that of the carrier signal, a high-level output is produced; otherwise, a low-level output is produced.
Generation of PWM Waveform: Through the above comparison process, a series of rectangular waves with varying widths are generated. The width of these rectangular waves changes over time, simulating the shape of a sine wave.
Filtering: Finally, a filter is used to remove the high-frequency components from the PWM waveform, resulting in a smoother sine wave output.
Main Categories: Medium and High Voltage Switchgear/Low Voltage Electrical Components/Renewable Energy and EV Charging/Electrical Testing and Metering/Lighting and Monitoring Equipment/Power Generation and Backup Systems/Power and Distribution Transformers/Instrument Transformers and Sensors/Transformer and Switchgear Parts/Construction Equipment and Tools/Electrical Manufacturing and Factory Automation/Lightning Protection and Electrical Insulation/Electrical Safety Equipment/Substations and E-Houses/Power Electronic Equipment/Electrical Panel and Controlgear/Power Quality Equipment

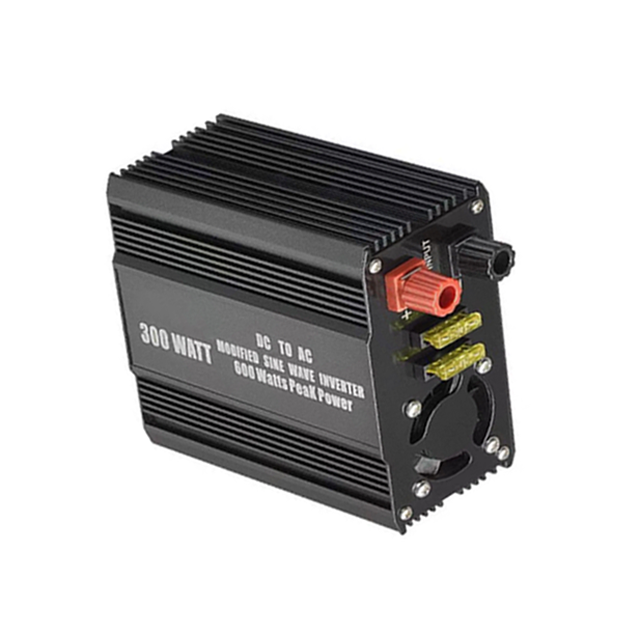

$750.00
Pricing calculator

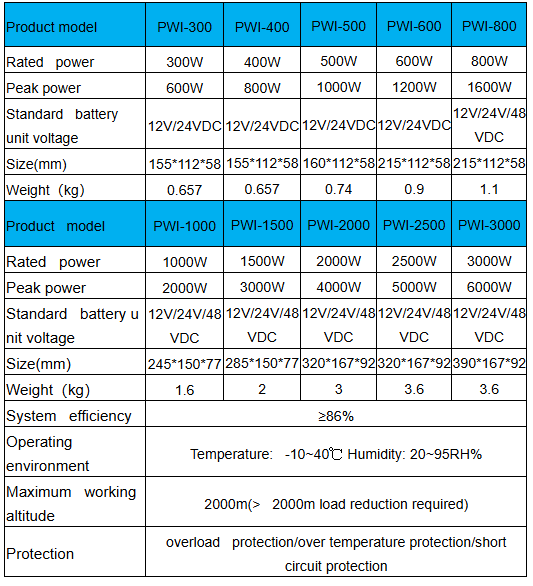

Model
INV-3000
INV-2500
INV-2000
INV-1500
INV-1000
INV-800
INV-600
INV-500
INV-400
INV-300
